Siemens SIMATIC IPC647D

Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC647D
Operating Instructions, 01/2014, A5E32996306-AA
43
3.3.6
Securing the lines
3.3.6.1
Network and fieldbus cables
The strain relief included in the scope of delivery is used to prevent that the plug does not
connect from the device.
Mounting is carried out instead of the fieldbus cover.
Requirement
● 1 strain relief
● 1 T10 screwdriver
● 1 side cutter
● Cable ties
Procedure
The following procedure describes the mounting of a strain relief for fieldbus and network
cables. Mounting of other strain reliefs is carried out analog. The sheet metal part required
for mounting is included in the accessory kit.

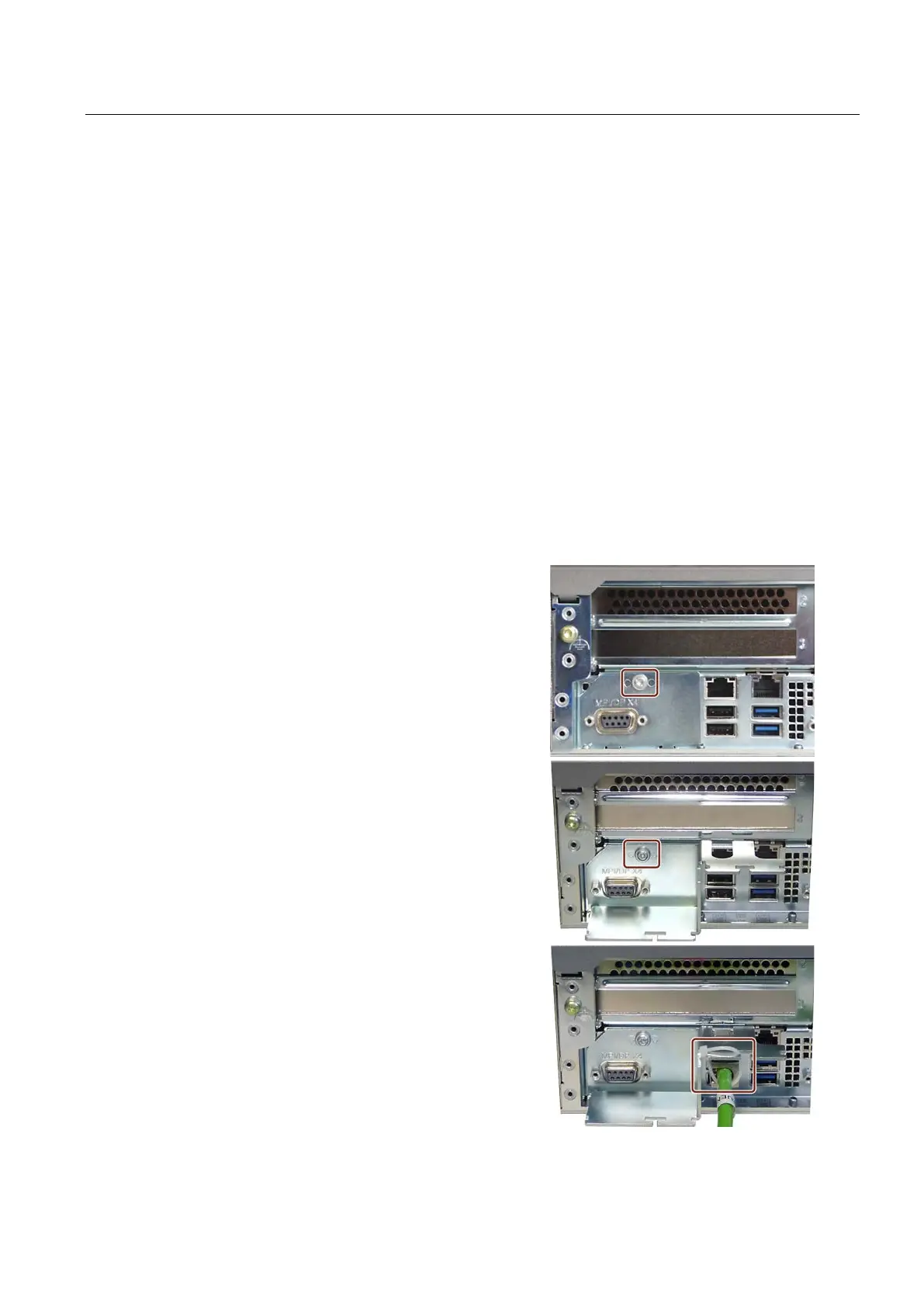

1.
Remove the marked screw and the
fieldbus cover fastened with it.
2.
Mount the strain relief.
Use the mounting screw of the
fieldbus cover for this purpose.
3.
Fasten the
cables with cable ties to
the cable strain relief.
