Expanding and assigning parameters to the device
6.6 Drives and storage media
SIMATIC IPC647D
74 Operating Instructions, 01/2014, A5E32996306-AA
Removing and installing drive cage
Requirement
● The device is open, see the section "Open the device. (Page 63)".
● Applies for vibration-damped drive cage:
The bus frame has been removed, see chapter "Removing and installing bus frame
(Page 68)".
● 1 T10 screwdriver
Read the section "ESD guideline (Page 119)".

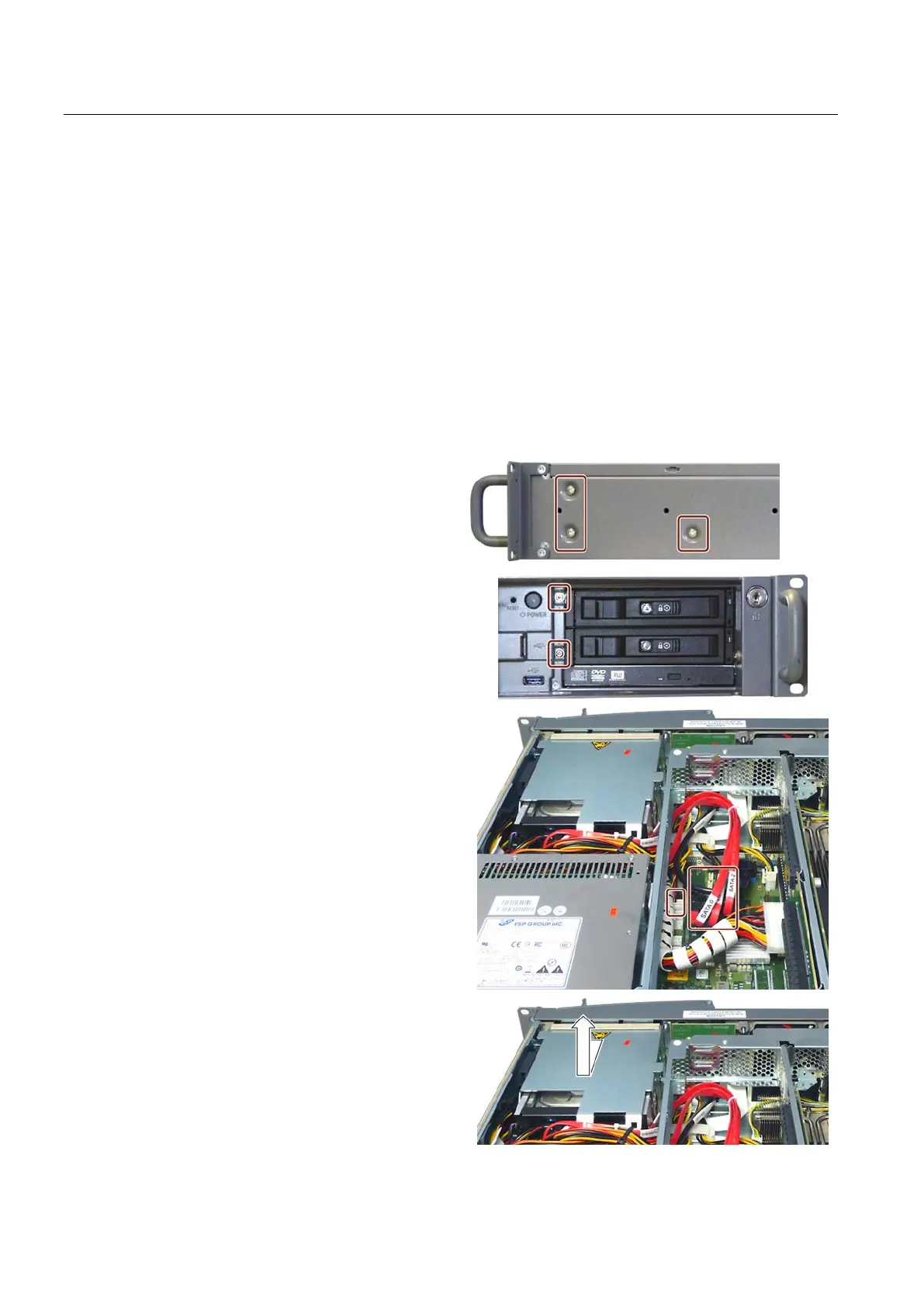

Remove the marked screws.
Remove the marked screws.
Note the positions of the marked
SATA connector.
Press the unlock mechanism of the
connector shown on the right in the
figure and pull off the connector.
Pull off the power supply connector
of the Slimline drive marked on the
right, if a Slimline drive exists.
Slide the drive cage toward the
power supply until it is released
from t
he front frame and remove
the drive cage from the device.
