Siemens SIMATIC IPC647D

Technical specifications
8.5 Hardware description
SIMATIC IPC647D
Operating Instructions, 01/2014, A5E32996306-AA
135

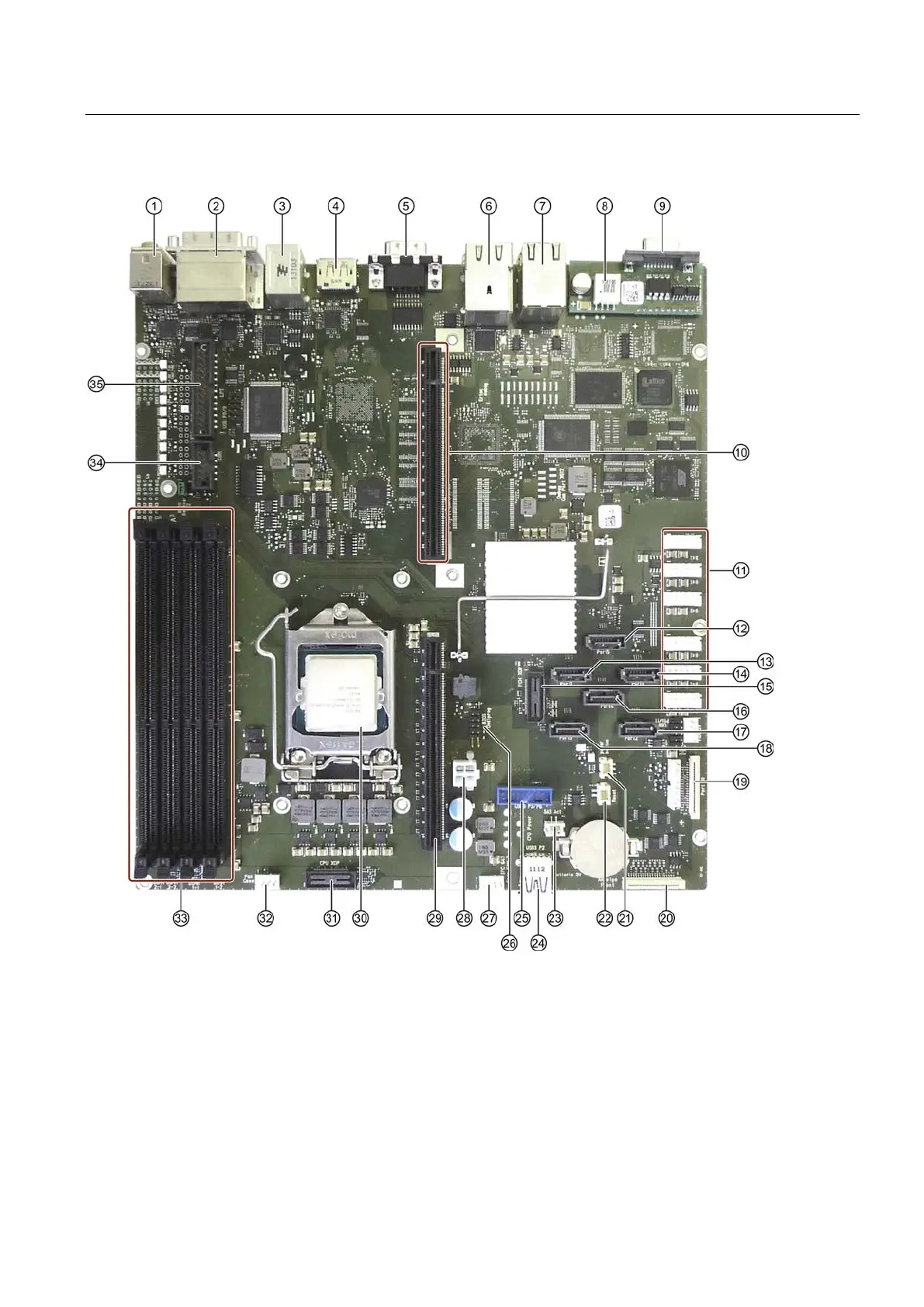

8.5.1.3
Position of the interfaces on the motherboard
1
Audio input, audio output
10
PCIe Gen2/PCI
19
Port 80
28
2 × power supply ATX
2
DVI via DPP
11
SATA PS
20
Display and operator panel
29
PCIe Gen3
3
2 × PS/2
12
SATA 5
21
On/off button
30
Processor socket
4
DPP
13
SATA 1
22
Reset button
31
CPU XDP
5
COM 1, COM 2
14
SATA 0
23
SAS
32
Device fan
6
USB 2.0/LAN 1
15
SCSI LED
24
USB 3.0
33
Memory modules
7
USB 3.0/LAN 2
16
SATA 4
25
USB 3.0/USB 2.0
34
COM 1, COM 2
8
PROFINET
17
SATA 2
26
BIOS
35
LPT
9
PROFIBUS/MPI
18
SATA 3
27
Power supply fan
