Removing and inserting the tray from the removable drive bays
There are trays in the removable drive bays that are installed in the drive cages. Hard disks
or SSDs can be installed in the tray.
● The front door is open
● 1 key

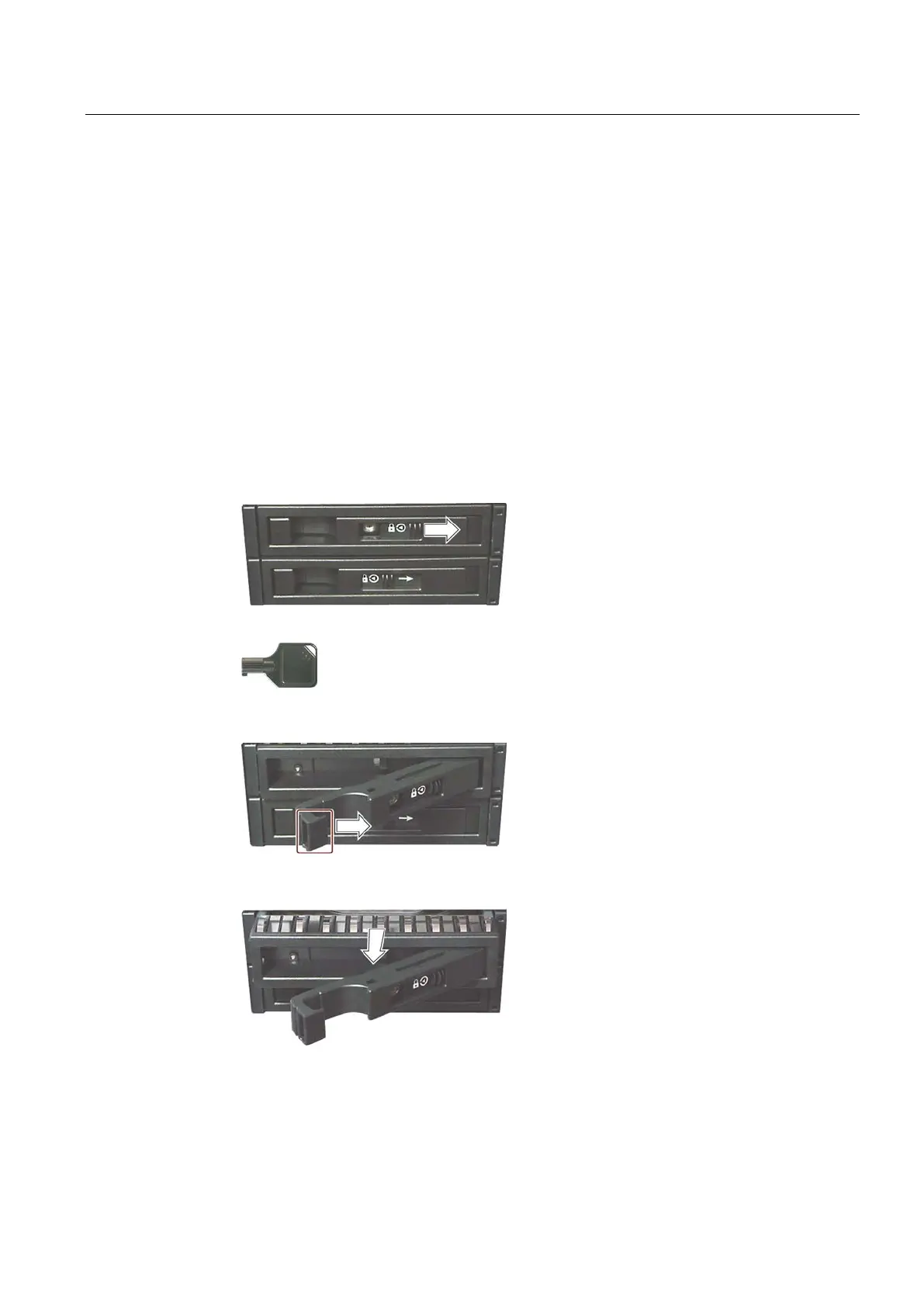

1. Slide the cover of the locking mechanism of the removable drive bay in the direction of
the arrow.
2. Use the appropriate key to unlock the tray on the removable drive bay.
3. Open the handle on the removable drive bay and open it at the highlighted spot in
direction of the arrow until you feel a slight resistance.
4. Now grasp the handle to the right of the notch you used to pull out the handle and pull the
tray completely out of the removable drive bay.
