Expanding and assigning parameters to the device
6.6 Drives and storage media
SIMATIC IPC647D
76 Operating Instructions, 01/2014, A5E32996306-AA

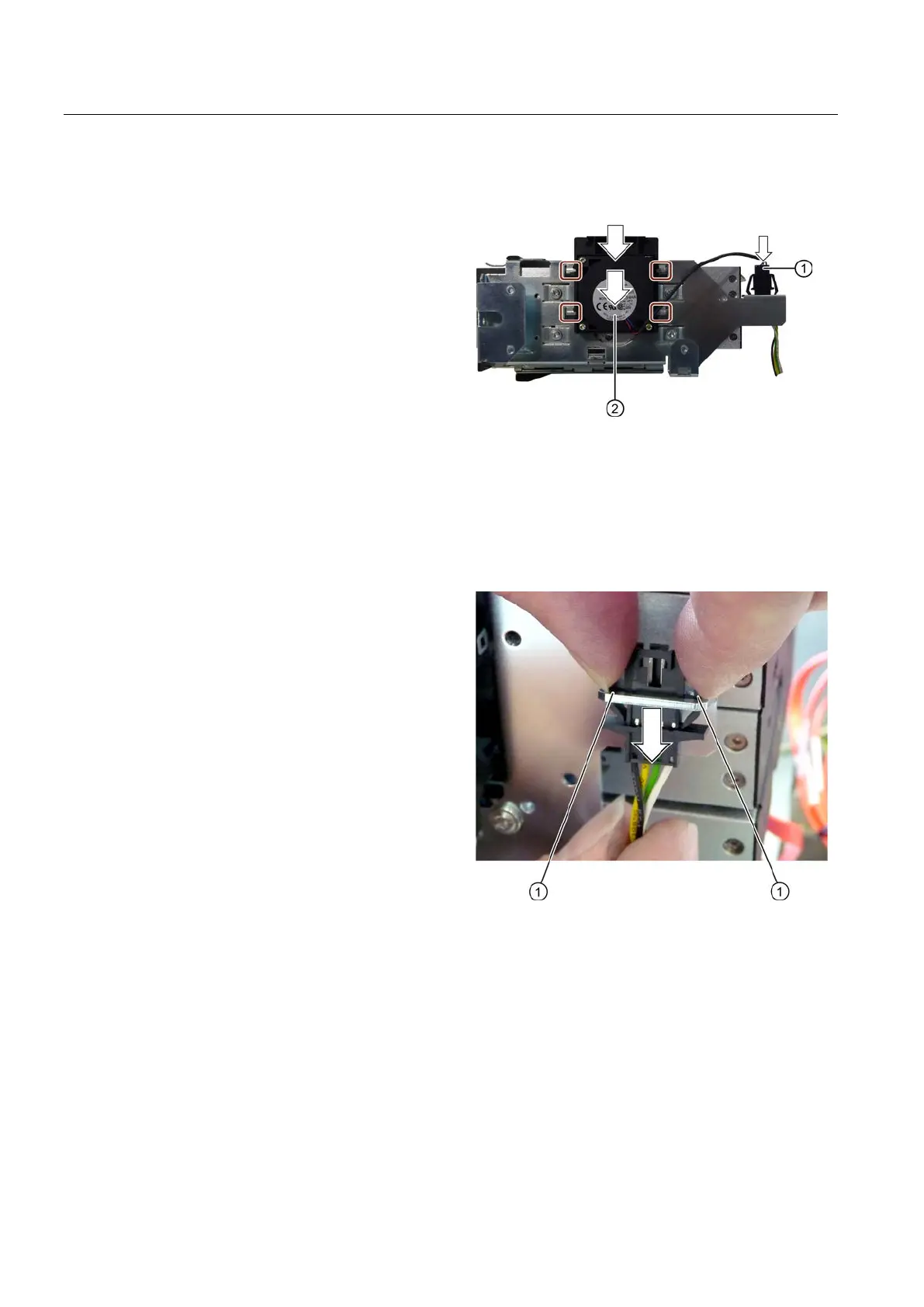

Slide the power supply plug
into the adapter plug until it snaps
into place.
Slide the fan retainer together
with the drive fan
② first under
the top two and then under the
bottom two guides marked in red
until the fan retainer is flush with
the top edge of the drive cage.
Make sure that you do not jam
the fan retainer. The fan retainer
is flush against the drive cage
when installed.
Removing the adapter plug
If necessary, remove the adapter plug, for example, when removing the drive cage.
To do so, press on the clips
① on
the side of the adapter plug and
remove the plug by pulling it down.
