Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC647D
44 Operating Instructions, 01/2014, A5E32996306-AA
COM, DP, DVI/VGA, PS/2 and audio lines
Cable ties that can be loosened for strain relief at the interfaces are enclosed in the
accessory kit. These cable ties can be mounted to the rear panel.
1. Push a cable tie into the device rear panel at the marked point.

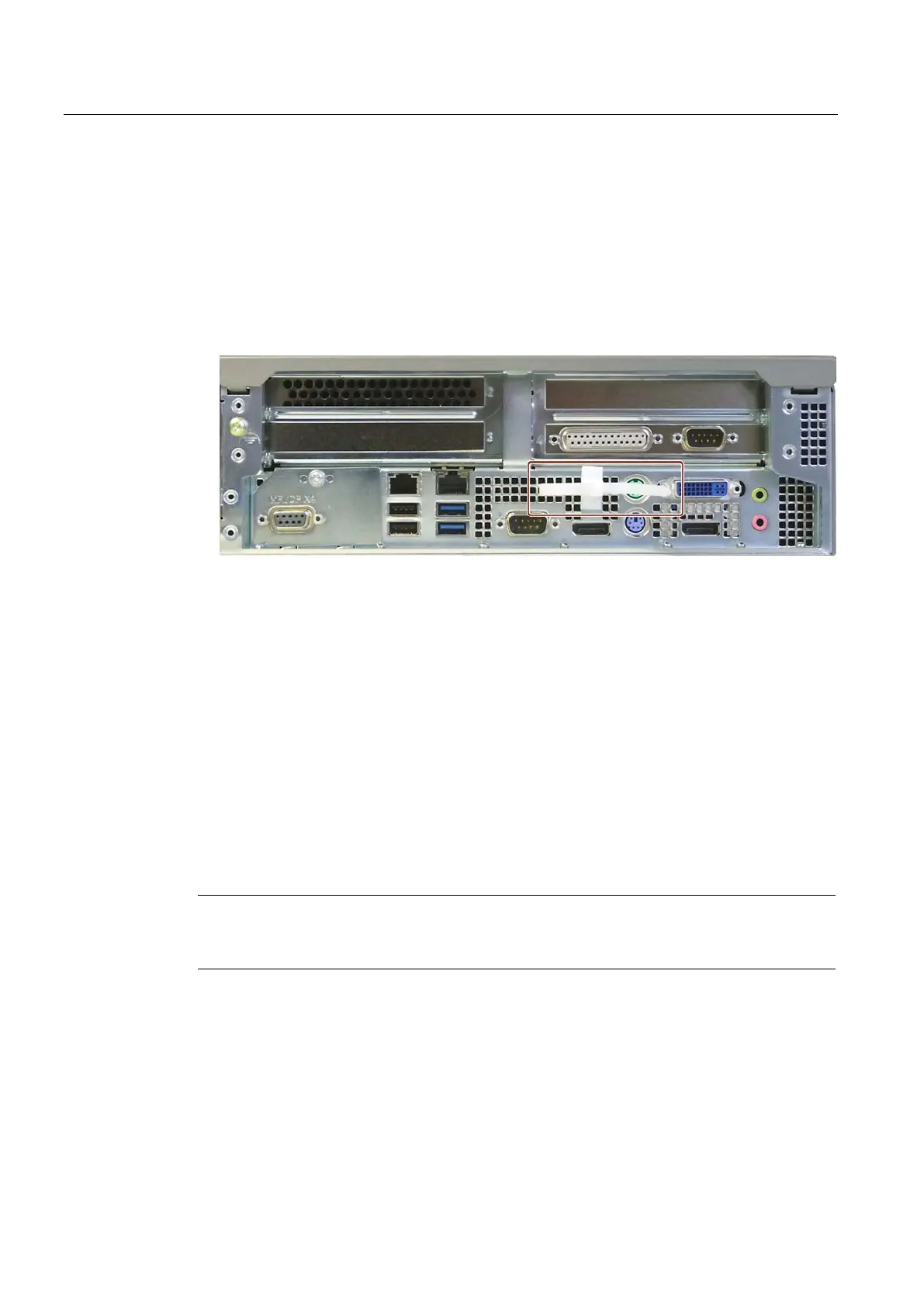

The figure shows the correct cable tie mounting position.
2. Secure the cables by means of the cable tie.
You can operate up to five monitors simultaneously at the interfaces of the integrated
graphics controller in combination with the optional graphics card. Parameter assignment is
performed by means of the Control Panel in Windows.
The following monitors can be operated simultaneously on the motherboard:
● 2 × DisplayPort, 1 × DVI
● 2 × DisplayPort, 1 × VGA
● 1 × DisplayPort, 1 × DVI via DisplayPort-DVI adapter, 1 × DVI
● 1 × DisplayPort, 1 × VGA via DisplayPort-VGA adapter, 1 × DVI/VGA
Note
The motherboard supports up to one additional DVI monitor if it is
connected by means of a
-DVI adapter.
