1.2 Design of the device
SIMATIC IPC647D
Operating Instructions, 01/2014, A5E32996306-AA
15
1.2
Design of the device
1.2.1
Device views

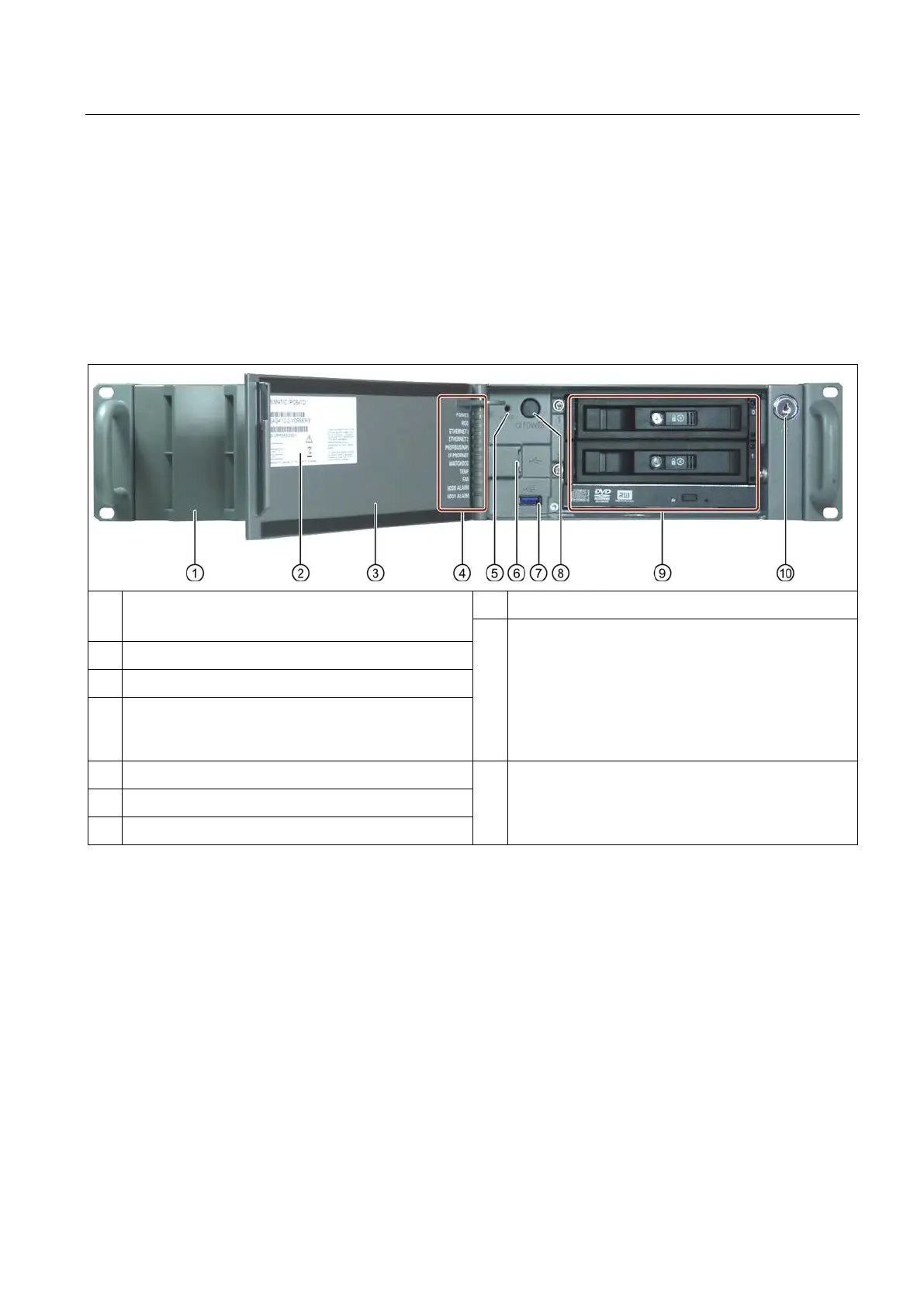

Front view
①
Front panel with openings for ventilation of the device
⑧
On/off button
⑨
Installation option for drives
The following drives can be ordered optionally:
• HDD or SSD in removable drive bay
• DVD burner drive, Slimline
• HDD in vibration-damped drive cage
• SSD in internal drive cage
②
Rating plate
③
Front door
④
Status displays
⑤
Reset button
⑩
Lock for front door
⑥
USB 2.0 port
⑦
USB 3.0 port
