Expanding and assigning parameters to the device
6.6 Drives and storage media
SIMATIC IPC647D
78 Operating Instructions, 01/2014, A5E32996306-AA
To install the fan, follow the steps for removing it in reverse order.
must always be locked in the removable drive bay to ensure reliable operation of
the devices with removable drive bays.
Removing and installing the hard disk drive from a tray
Requirement
● The tray has been removed, see chapter "Removing and inserting the tray from the
removable drive bays (Page 77)".
● 1 drive
● 1 soft mounting padding
Observe the chapter "ESD guideline (Page 119)".

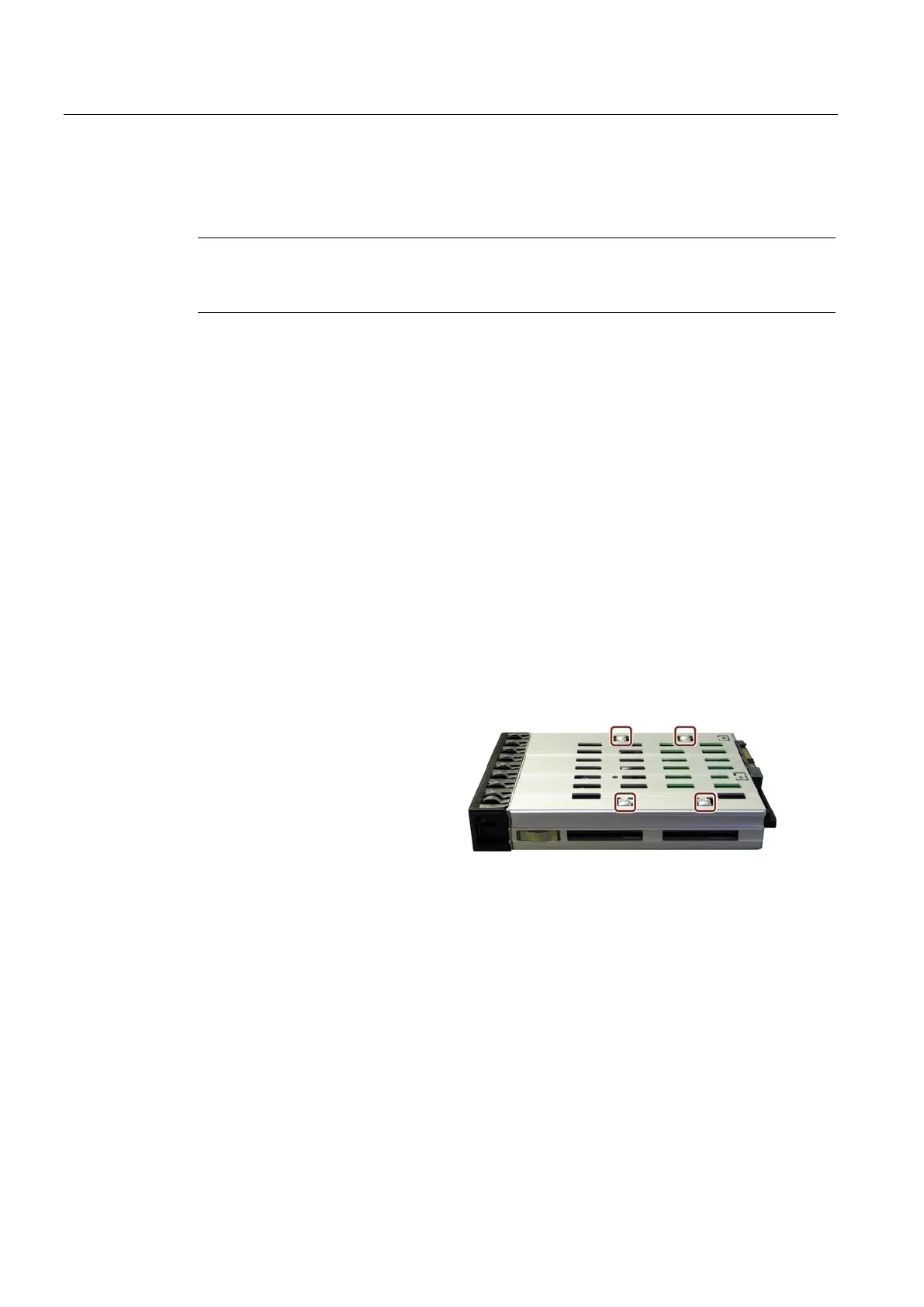

Place the tray as shown on the
mounting padding.
Remove the marked screws.
Proceed in reverse order. Use only the original screws during installation. Position all screws
first and do not tighten them until all screws are installed in the thread.
