8.5 Hardware description
SIMATIC IPC647D
132 Operating Instructions, 01/2014, A5E32996306-AA
Hardware description
8.5.1
Structure and functions of the motherboard

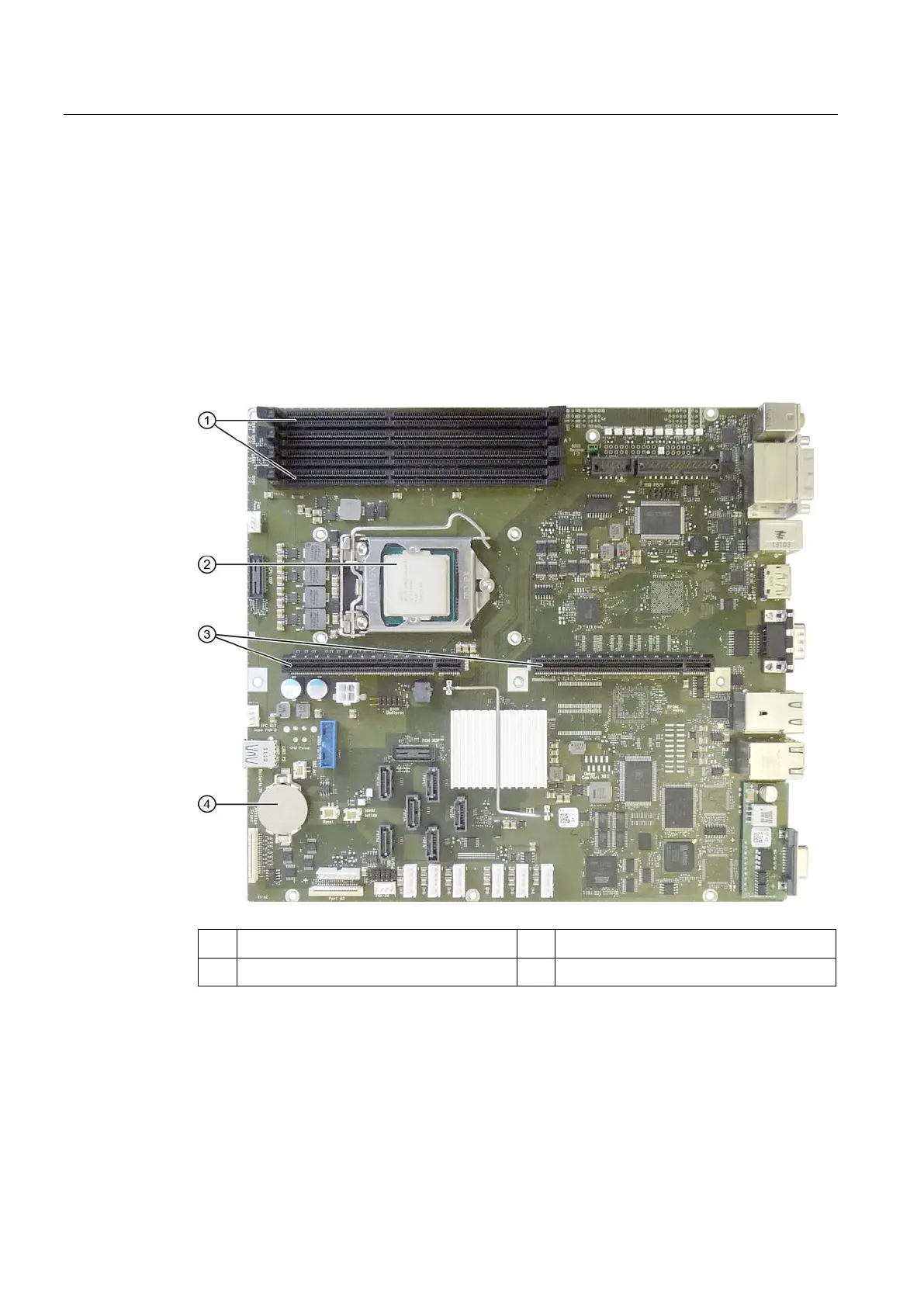

Core components of the motherboard: processor and chipset, three slots for memory
modules, internal and external interfaces, Flash BIOS and the backup battery.
Slots for memory modules
Slot for the bus board
Processor
Backup battery
