Expanding and assigning parameters to the device
6.6 Drives and storage media
SIMATIC IPC647D
82 Operating Instructions, 01/2014, A5E32996306-AA
Removing and installing an SSD with mounting plate from a drive cage
Requirement
● The device is fully disconnected from the mains voltage, see chapter "Switching off the
device (Page 51)".
● The drive cage has been removed, see chapter "Removing and installing drive cage
(Page 74)".
● The drive fan has been removed, see chapter "Removing and installing drive fans
(Page 75)".
● 1 T10 screwdriver
Read the section "ESD guideline (Page 119)".

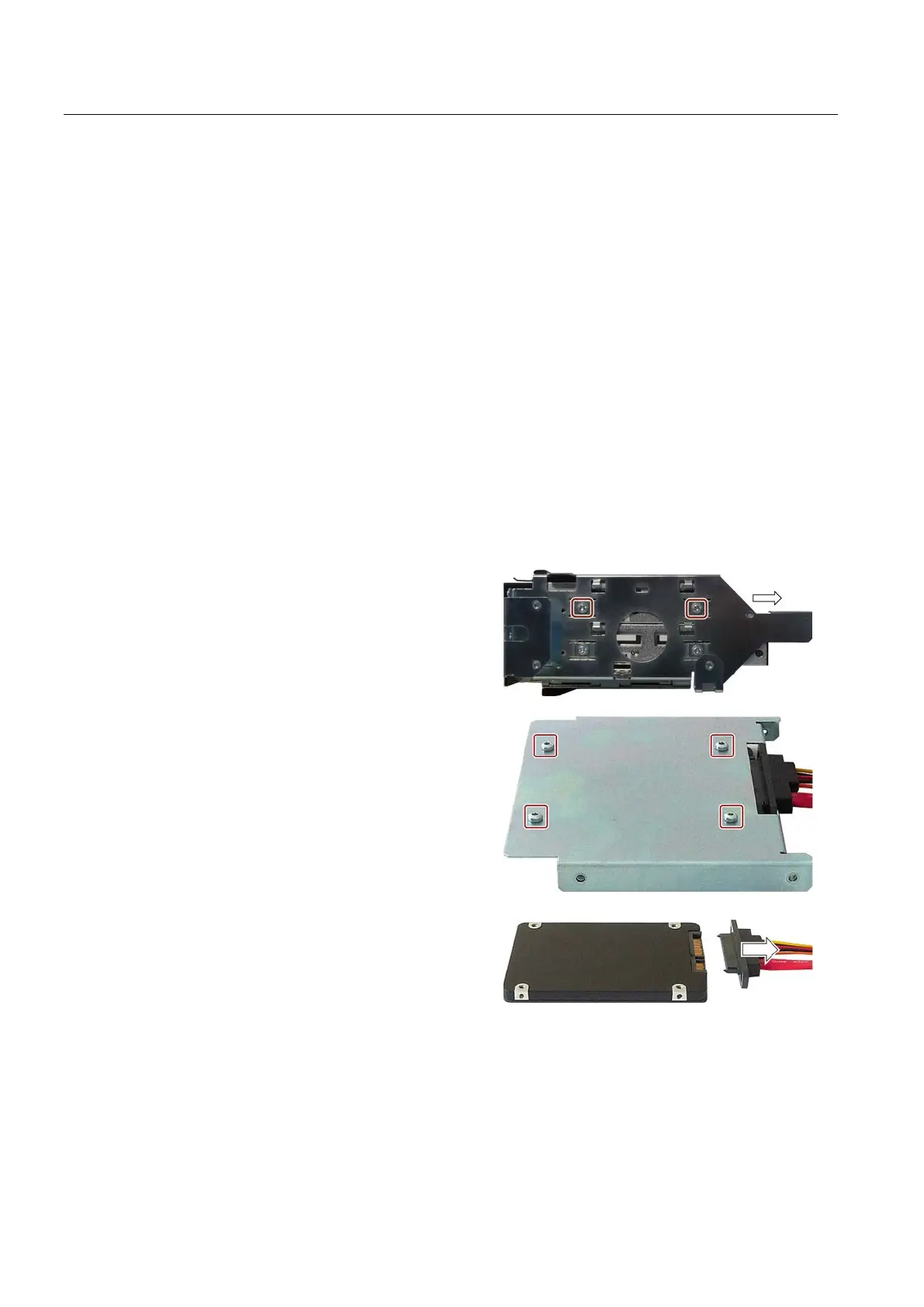

On both sides of the drive cage,
loosen the two screws that secure
the mounting plate in the drive cage.
Pull out the mounting plate with the
SSD from the drive cage in the
direction of the cables.
Do not pull on the cables.
Remove the marked screws.
Remove the mounting plate from the
SSD.
Pull out the plug from the SSD.
To install the fan, follow the steps for removing it in reverse order. Use only the original
screws during installation.
