Overview
1.2 Design of the device
SIMATIC IPC647D
18 Operating Instructions, 01/2014, A5E32996306-AA
1.2.3
Status displays

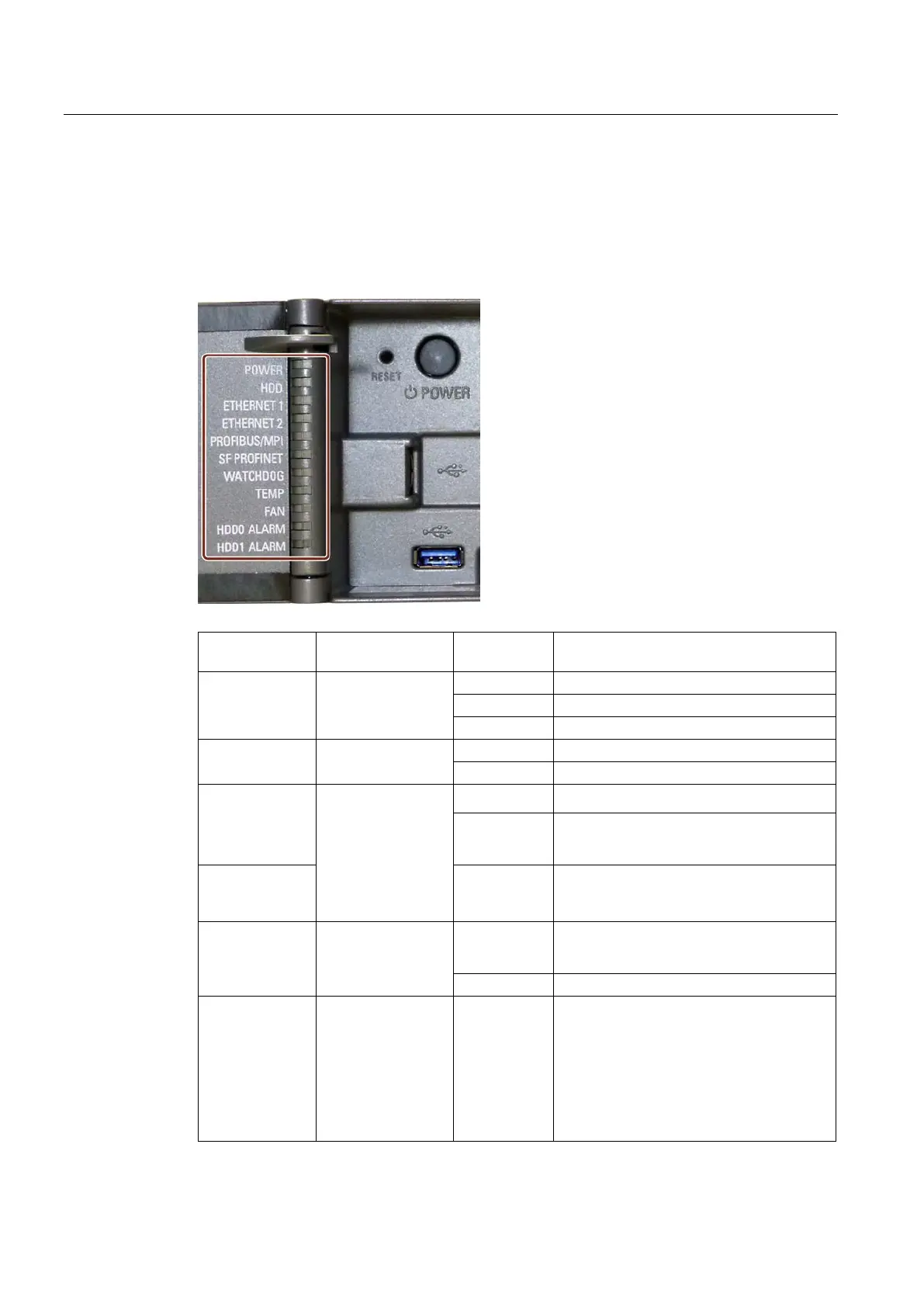

Front panel
View with open front door
Operating
display
Meaning
LED
Description
POWER Operating mode of
the PC
Off PC disconnected from power supply
Yellow
PC in standby
Green
PC in operation
HDD Access to hard disk
Off
No access
Green
Access
ETHERNET 1
1
Status connection
ETHERNET
Off
• No connection
Lit green
• Connection
• No data traffic
ETHERNET 2
1
Flashes green
according to
activity
• Connection
• Data traffic
PROFIBUS/MPI
(optional)
Status connection
S7 or PROFIBUS
Off
• No connection
• No data traffic
Green
Data traffic
SF PROFINET,
optional
Status
CP 1616 onboard
Off
• CP not available
• CP disabled
• No error, communication established
• Charging in progress
• CP 1616 driver not installed
• CP in NDIS mode
