Siemens SIMATIC IPC647D

Technical specifications
8.5 Hardware description
SIMATIC IPC647D
142 Operating Instructions, 01/2014, A5E32996306-AA

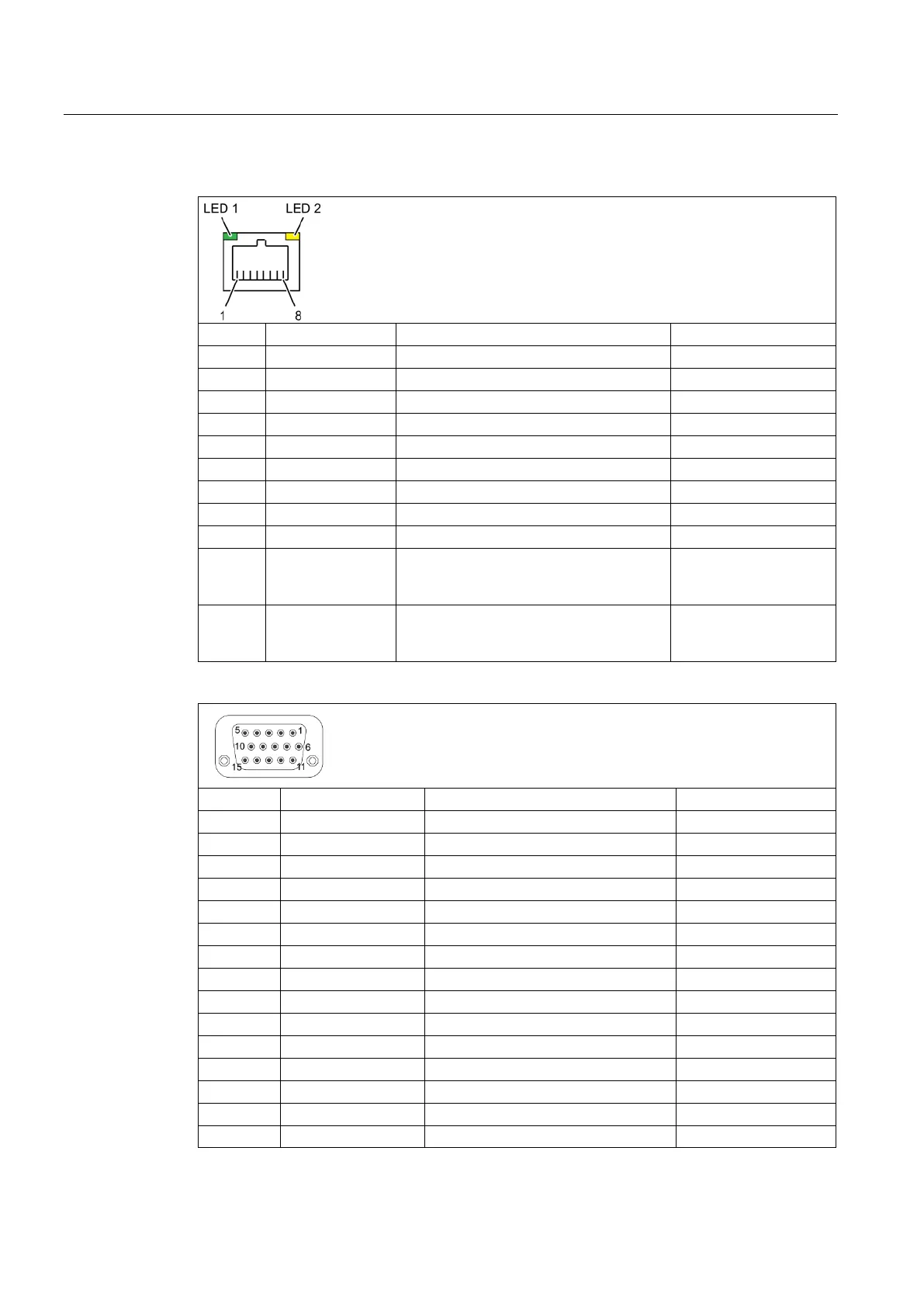

Ethernet LAN connection, X2, X4
Pinno.
Short name
Meaning
Input / output
1
BI_DA+
Bi-directional data A+
Input / output
2
BI_DA-
Bi-directional data A-
Input / output
3
BI_DB+
Bi-directional data B+
Input / output
4
BI_DC+
Bi-directional data C+
Input / output
5
BI_DC-
Bi-directional data C-
Input / output
6
BI_DB-
Bi-directional data B-
Input / output
7 BI_DD+ Bi-directional data D+ Input / output
8
BI_DD-
Bi-directional data D-
Input / output
S Shield –
LED 1 Off: 10 Mbps
Lit in green color: 100 Mbps
Lit in orange color: 1000 Mbit/s
–
LED 2 Lit: Active connection
(to a hub, for example)
Flashing: actvity
–
VGA interface of the DVI-I/VGA adapter
Pinno.
Short name
Meaning
Input / output
1
R
Red
Output
2
G
Green
Output
3
B
Blue
Output
4
–
Not used
–
5
GND
Ground
–
6 GND Ground –
7
GND
Ground
–
8
GND
Ground
–
9
+ 5 V
+ 5 V (fused)
Output
10
GND
Ground
–
11
–
Not used
–
12
DDC_DAT
Display data channel data
Input/output
13
EXT_H
Horizontal synchronizing pulse
Output
14
EXT_V
Vertical synchronizing pulse
Output
15
DDC_CLK
Display data channel clock
Input/output
