8.5 Hardware description
SIMATIC IPC647D
154 Operating Instructions, 01/2014, A5E32996306-AA
Bus board without piggyback 2 x PCIe
Corresponds to the model in the last figure, without piggyback. Only the slots in Slot 2 (Item
①) and Slot 3 (Item ②) can be equipped with PCIe cards.
Bus board 2 × PCI with piggyback 2 × PCIe

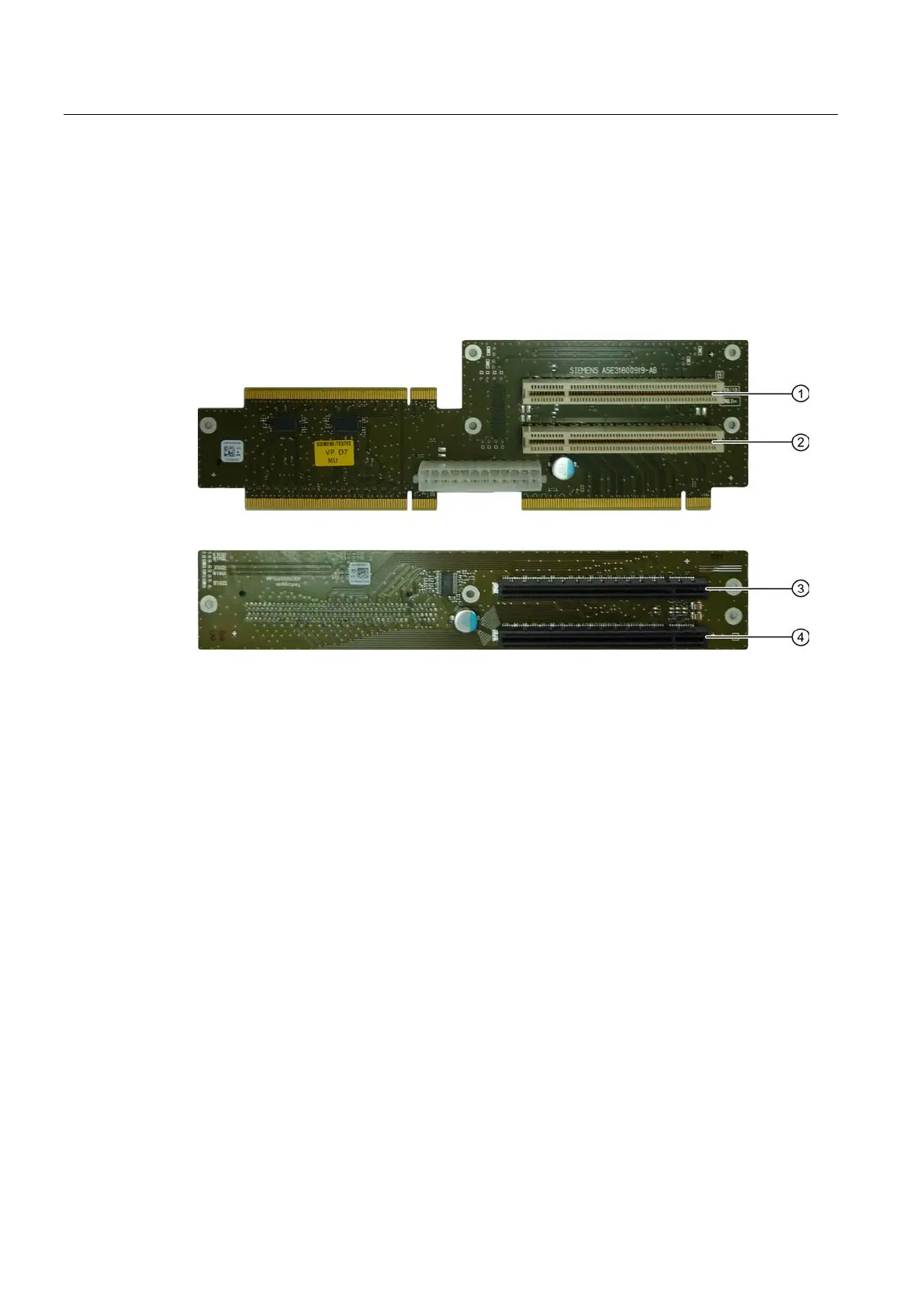

The following figure shows the bus board at the top and the piggyback on the bottom.
Corresponding designation on the device front: Slot 2
Corresponding designation on the device front: Slot 3
Slot PCIe x8 Gen. 3, piggyback
Corresponding designation on the device front: Slot 4
Slot PCIe x8 Gen. 3, piggyback
Corresponding designation on the device front: Slot 1
