Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC647D
Operating Instructions, 01/2014, A5E32996306-AA
33
You can mount the device as follows:
● Mounting with cabinet brackets
● Mounting on device bases
● Mounting on telescopic rails
When telescopic rails are used for mounting, the device can be withdrawn fully from the
cabinet or rack. You will find detailed information about the telescopic rails in sections
Technical data of the telescopic rails (Page 131) and Dimension drawing of the telescopic
rails (Page 122).
The device is too heavy to be mounted exclusively with the 19 inch brackets of the front
panel. The device may fall down, injure people and get damaged.
Secure the device using additional measures. The mounting screws of the telescopic
rails may not protrude more than 5 mm into the device.

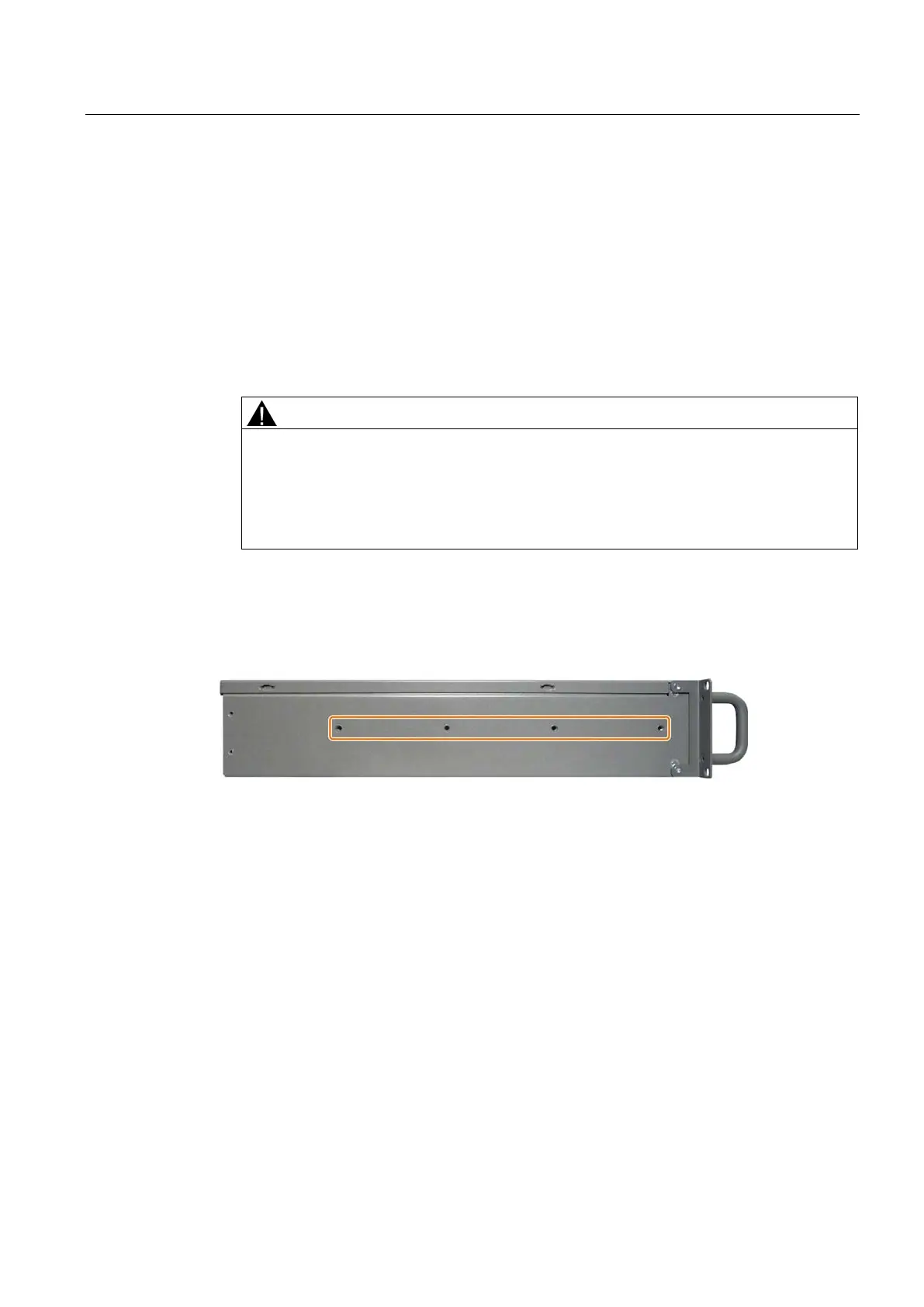

Position of the mounting holes for angle brackets or telescopic rails
The following figure highlights the mounting holes for the angle brackets and for the
telescopic rails.
The dimensions for the mounting holes are listed in the chapter "Dimension drawing of the
telescopic rails (Page 122)".
