Expanding and assigning parameters to the device
6.5 Expansion cards
SIMATIC IPC647D
Operating Instructions, 01/2014, A5E32996306-AA
69
Read the section "ESD guideline (Page 119)".

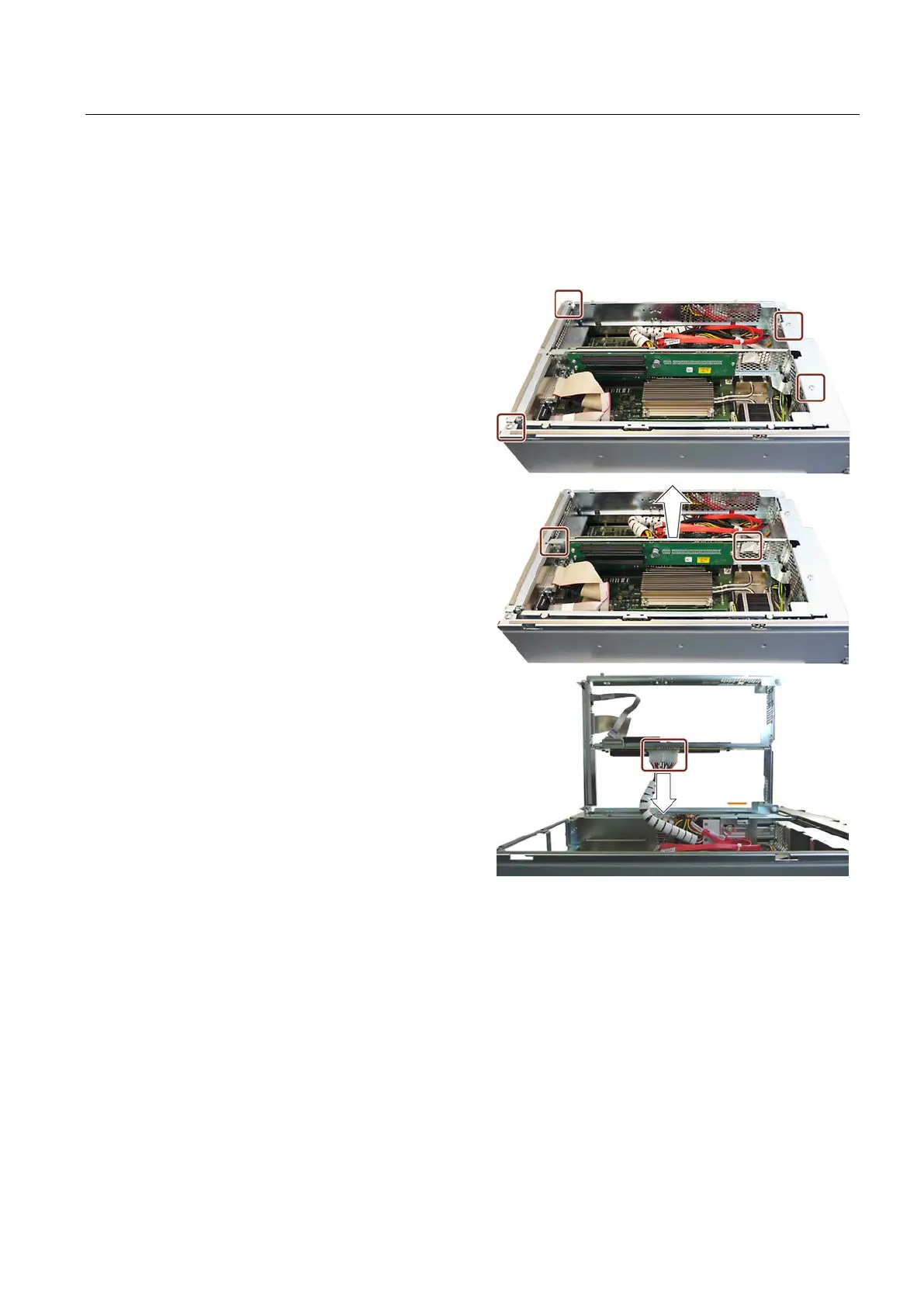

Remove the 4 marked screws.
Pull the bus frame evenly from
the unit at the marked points.
Do not tilt the bus frame when
removing it.
Place the bus frame upright.
Support
the bus frame with your
hand to prevent it from tipping.
Unlock the marked plug and pull
out the connector downwards.
To install the bus frame follow the steps for removing it in reverse order.
