Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC647D
90 Operating Instructions, 01/2014, A5E32996306-AA
Read the section "ESD guideline (Page 119)".
Remove the cable ties that secure
the cables in the housing.

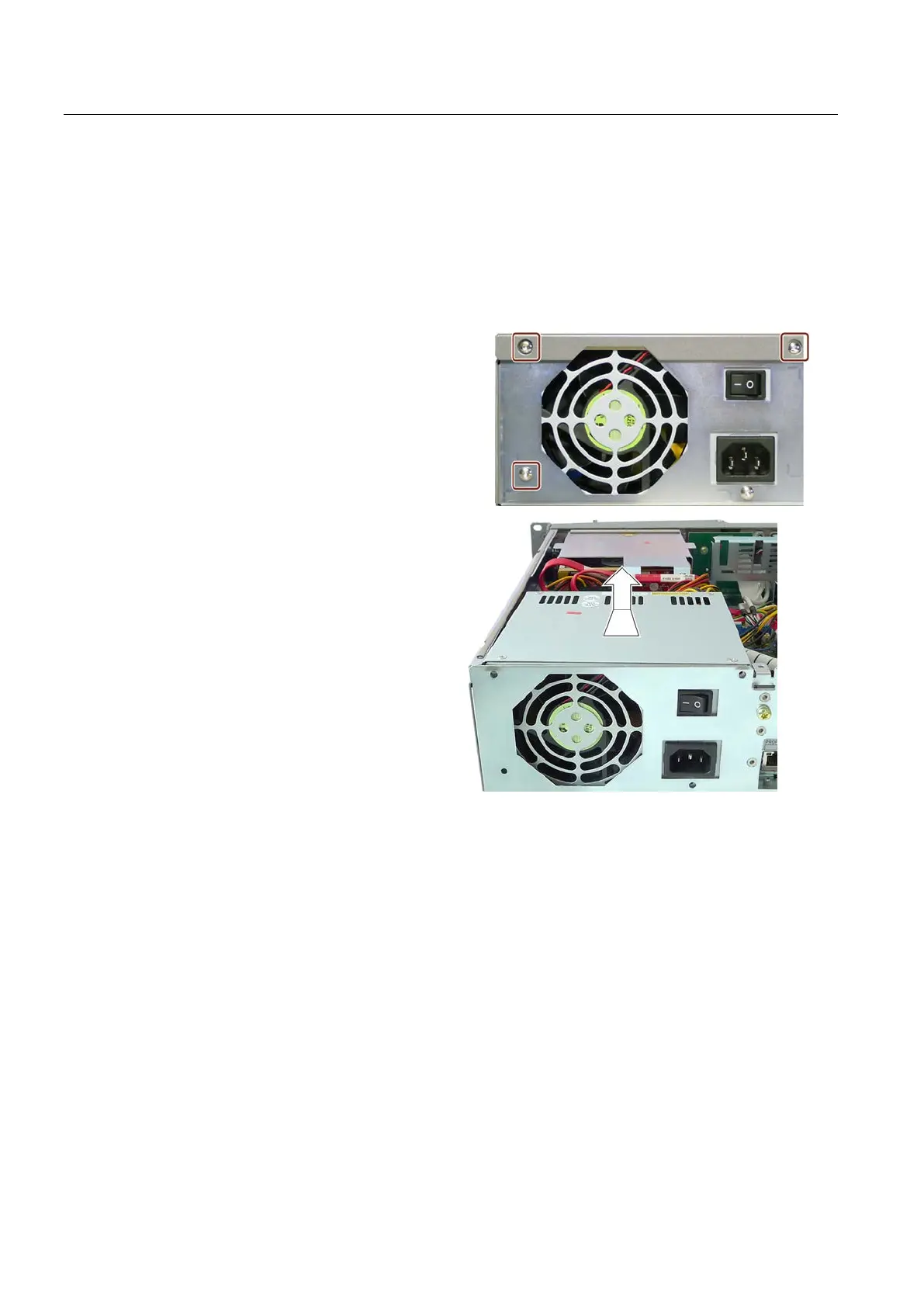

Remove the marked screws.
Push the power supply unit
towards the drive cage and lift it
out of the device.
Install the device in reverse order.
Connection information (Page 34)
