Siemens SIMATIC IPC647D

Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC647D
96 Operating Instructions, 01/2014, A5E32996306-AA

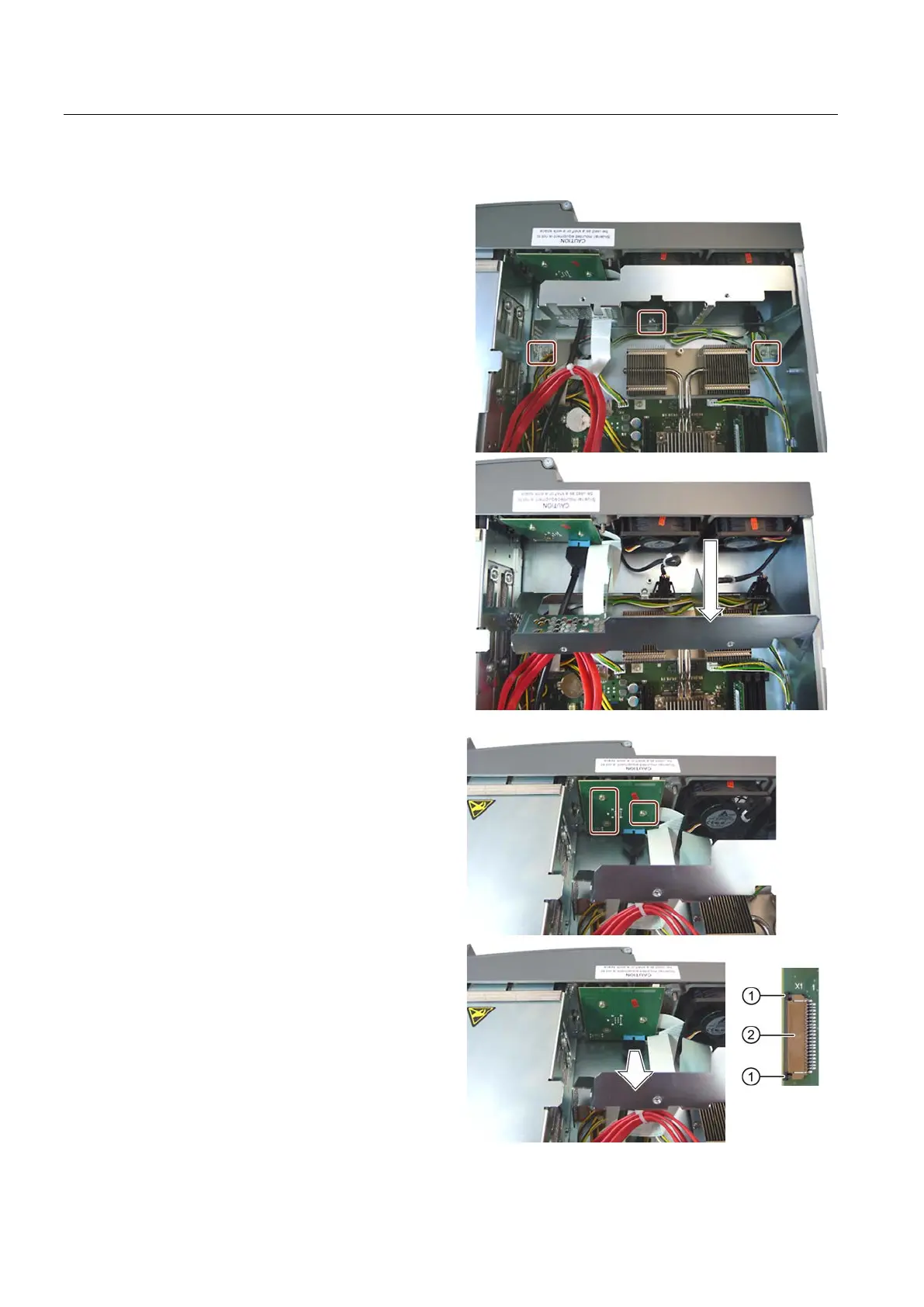

Removal
1.
Remove the marked screws.
2.
Fold the crossbar in the direction of
the arrow.
3.
Remove the USB connector.
4.
Remove the marked screws and
then the operator panel.
5.
Loosen the white flat cable at the
plug connector
② by sliding the
lock
① to the left.
