Technical specifications
8.3 Dimension drawings
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
111

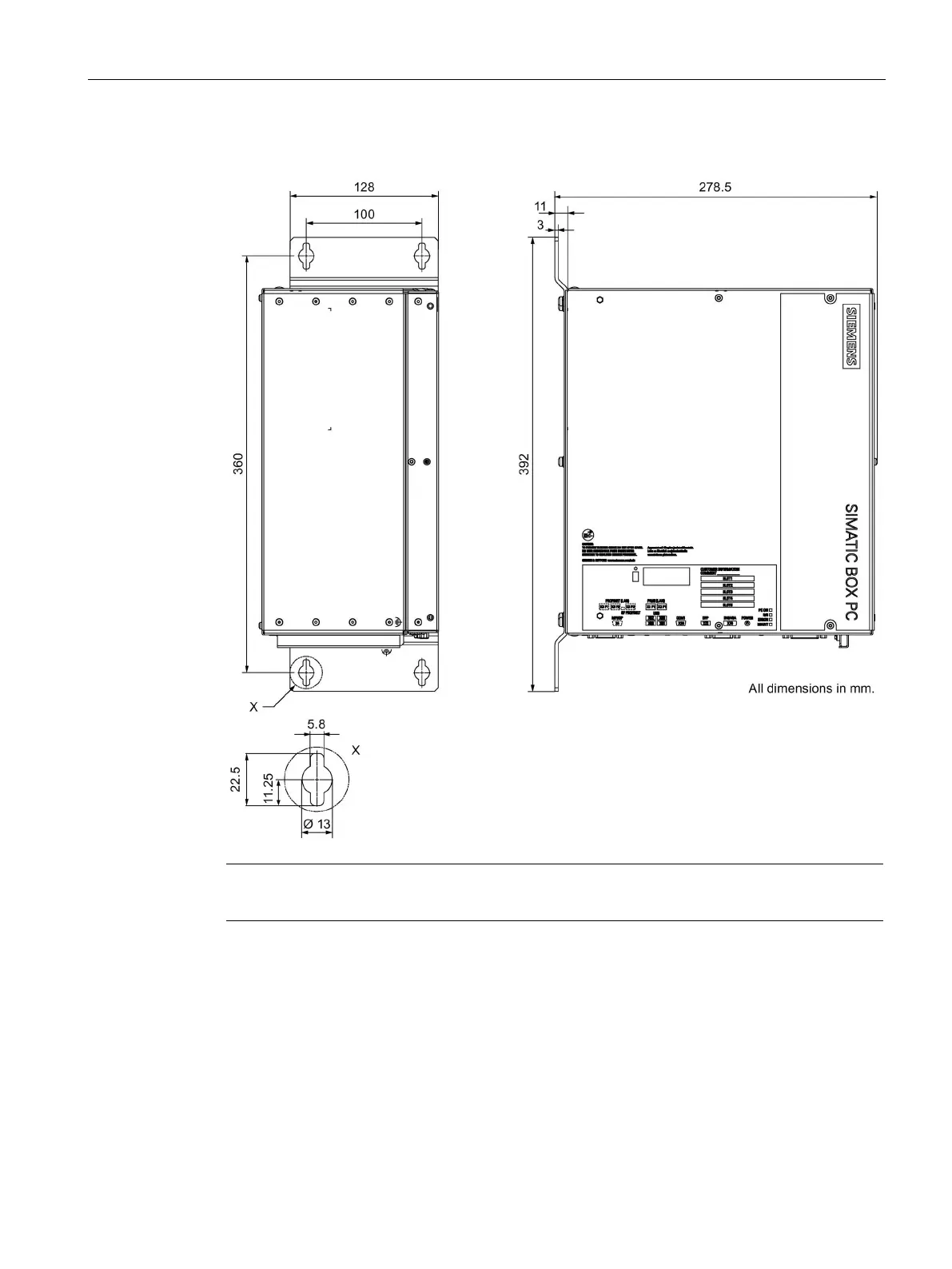

Dimension drawing for mounting with vertical mounting kit
Note
When mounting devices
with optical drives, the mounting depth changes.
