Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
41
Document name
What is contained in this document?
S7 CPs for Industrial Ethernet
Configuring and Commissioning
This provides the following support:
- For commissioning S7 stations
- For establishing effective communication
Manual
SIMATIC NET - Twisted Pair and
Fiber-Optic Networks
Configure and build your Industrial Ethernet networks
based on this document.
This documentation is part of the supplied Documentation and Drivers CD:
Operating instructions
CP 1616/CP 1604/CP 1616 onboard
This provides you with all information required for
operation.
Installation guide
Device Driver CP16xx.sys
Read this guide if you want to install the NDIS device
driver, CP16xx.sys.
Further information
You can find the information on specific products in the Internet at the address: Product-
related Information SIMATIC NET (http://www.siemens.com/simatic-net)

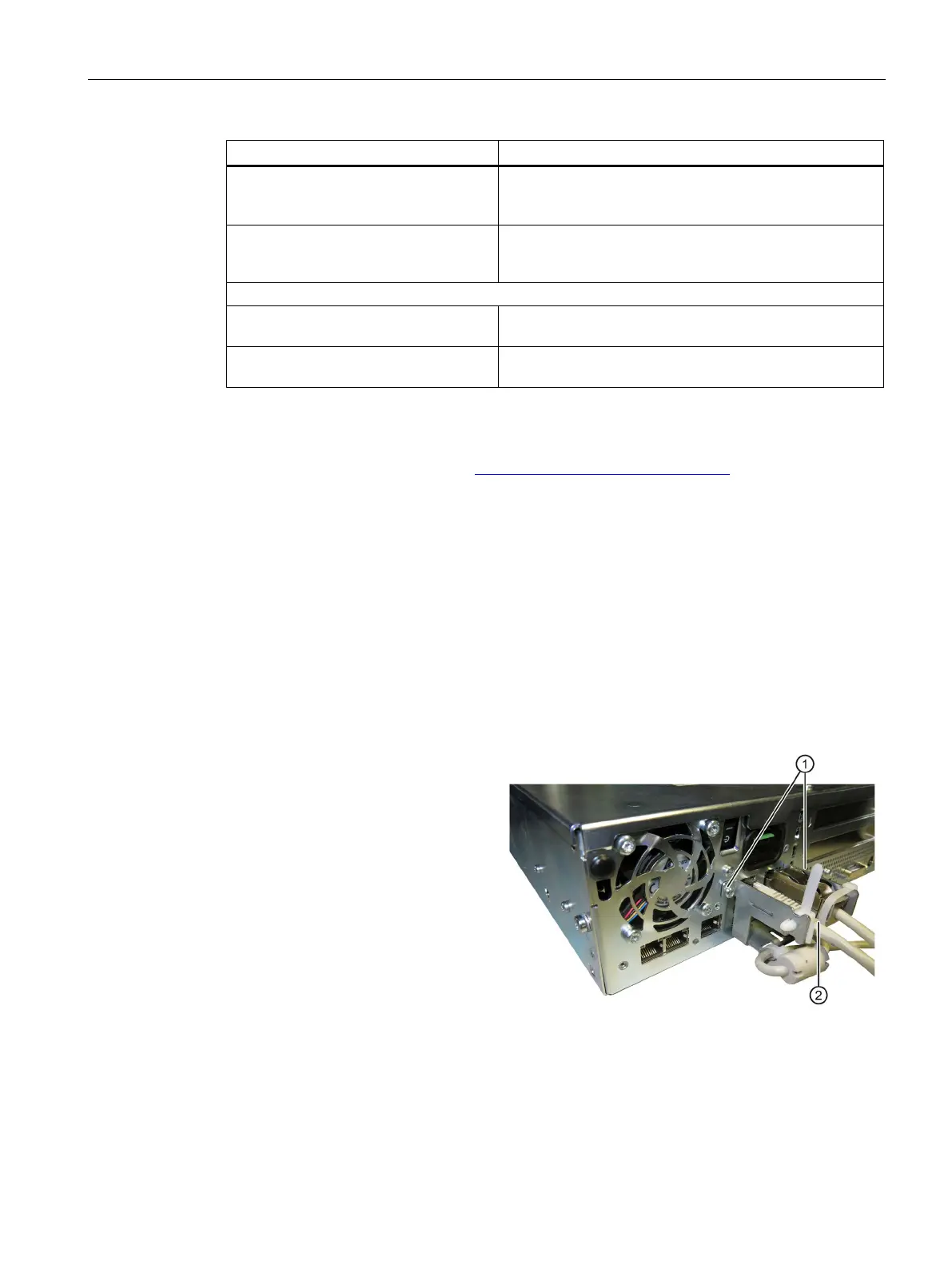

3.3.8
Connecting Ethernet/USB strain relief
The Ethernet/USB strain relief supplied in the product package is used to prevent accidental
removal of the Ethernet cable and Industrial Ethernet FastConnect connector from the
device. You need two cable ties to use the strain relief. In addition to the Ethernet cables,
you can also use this strain relief to protect the four USB cables from inadvertent removal.
To secure the Ethernet strain relief, you will need a TORX T10 screwdriver.
Procedure
1.
Secure the Ethernet/USB strain
relief with two oval
-head screws
M3 ① to the device housing.
2.
Connect the network and USB
cables with the device and s
ecure
the connectors to the strain relief
with cable ties
②.
