Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
85
Removing and installing the bus board
Requirement
● The device is opened.
1. Remove all modules from the slots.
2. Remove the drive bay module for hard disks.
3. Remove the power supply.
4. Remove the screws

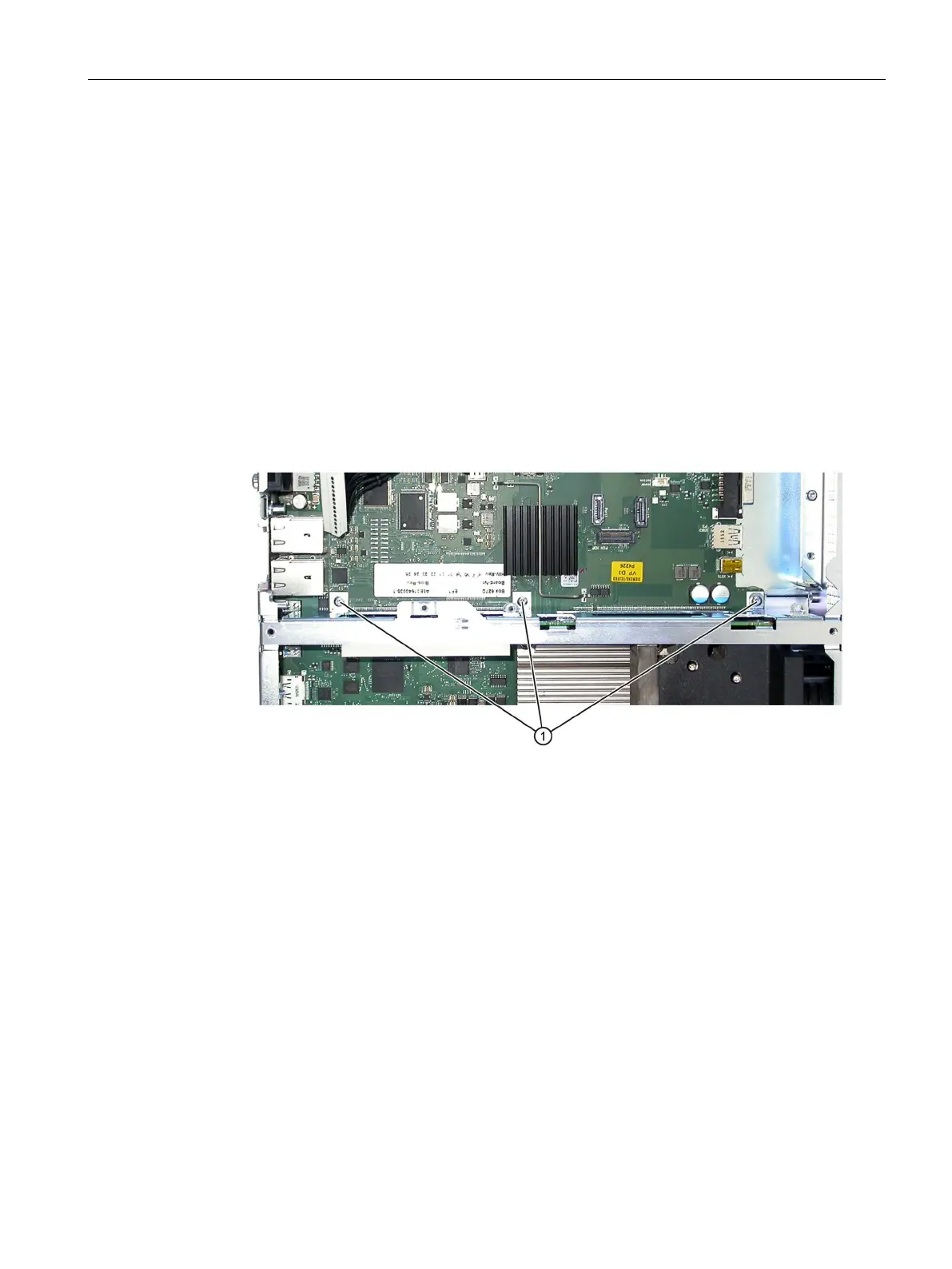

① on the bus board.
5. Pull the bus board from the motherboard.
Proceed in reverse order.
