Siemens SIMATIC IPC827D - Removing and Installing a DVD Drive

Expanding and assigning parameters to the device
6.4 Drives
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
71
6.4.6
Removing and installing a DVD drive
Requirement
● The device is opened.
Procedure
Removing external drive
1.
Remove the internal HDD/SSD drive bay module.
2.

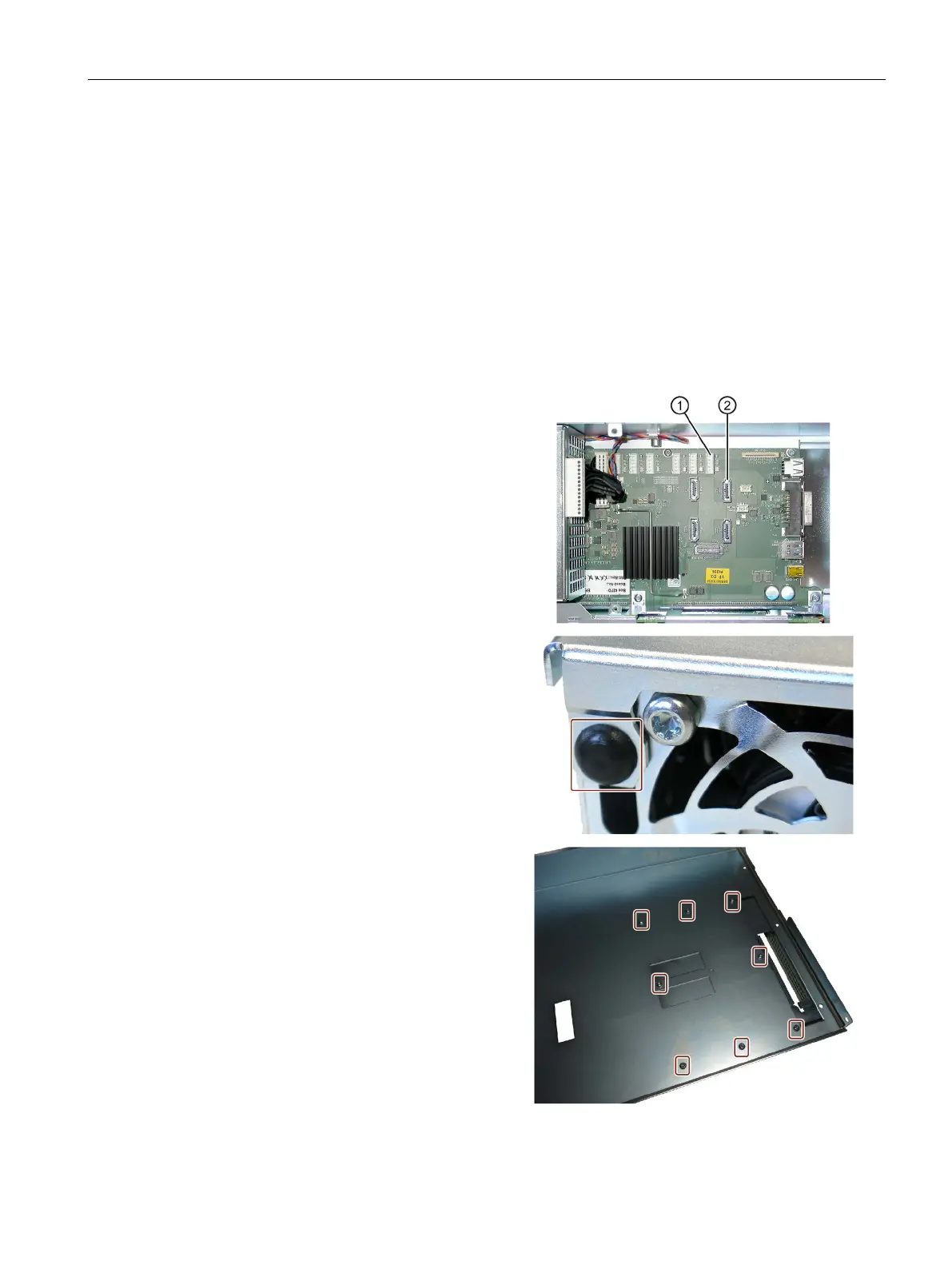

Loosen the following connectors of
the optical drive from the mothe
r-
board:
•
Power supply connector ①.
•
SATA connector ②
3.
Loosen the designated rivets on the
left and right on the cover with a
screwdriver and put the cover down
with the optical drive facing dow
n-
wards.
4.
Loosen the designated screws on
the inside of the cover.
