6.4 Drives
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
67
6.4.2
Removing and installing the drive bay module
Requirement
● The device is opened.
Procedure

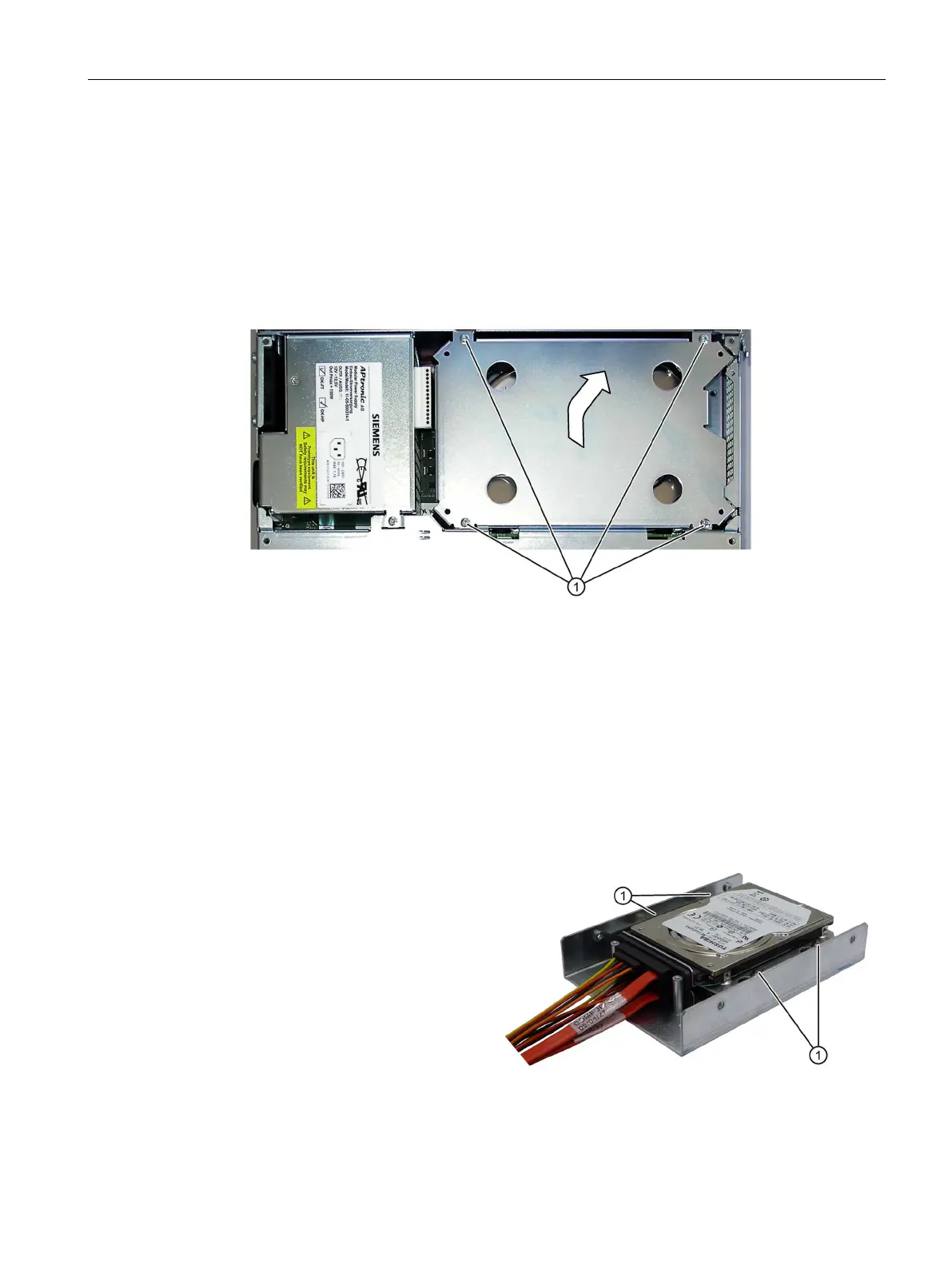

1. Remove the four screws ①.
2. Lift out the drive bay module for hard disks and set it down carefully with the base facing
downwards.
6.4.3
Removing and installing hard disks
Procedure
Removing 2.5" drive
1.
Remove the drive bay module.
2.
Loosen the 4 screws ①
on the
holding plates.
Do not remove the screws.
3.
Remove the hard disk drive including the mounting plate from the bay.
4.
Disconnect the power supply and the data cable from the drive.
