8.5 Hardware descriptions
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
123
8.5.1.2

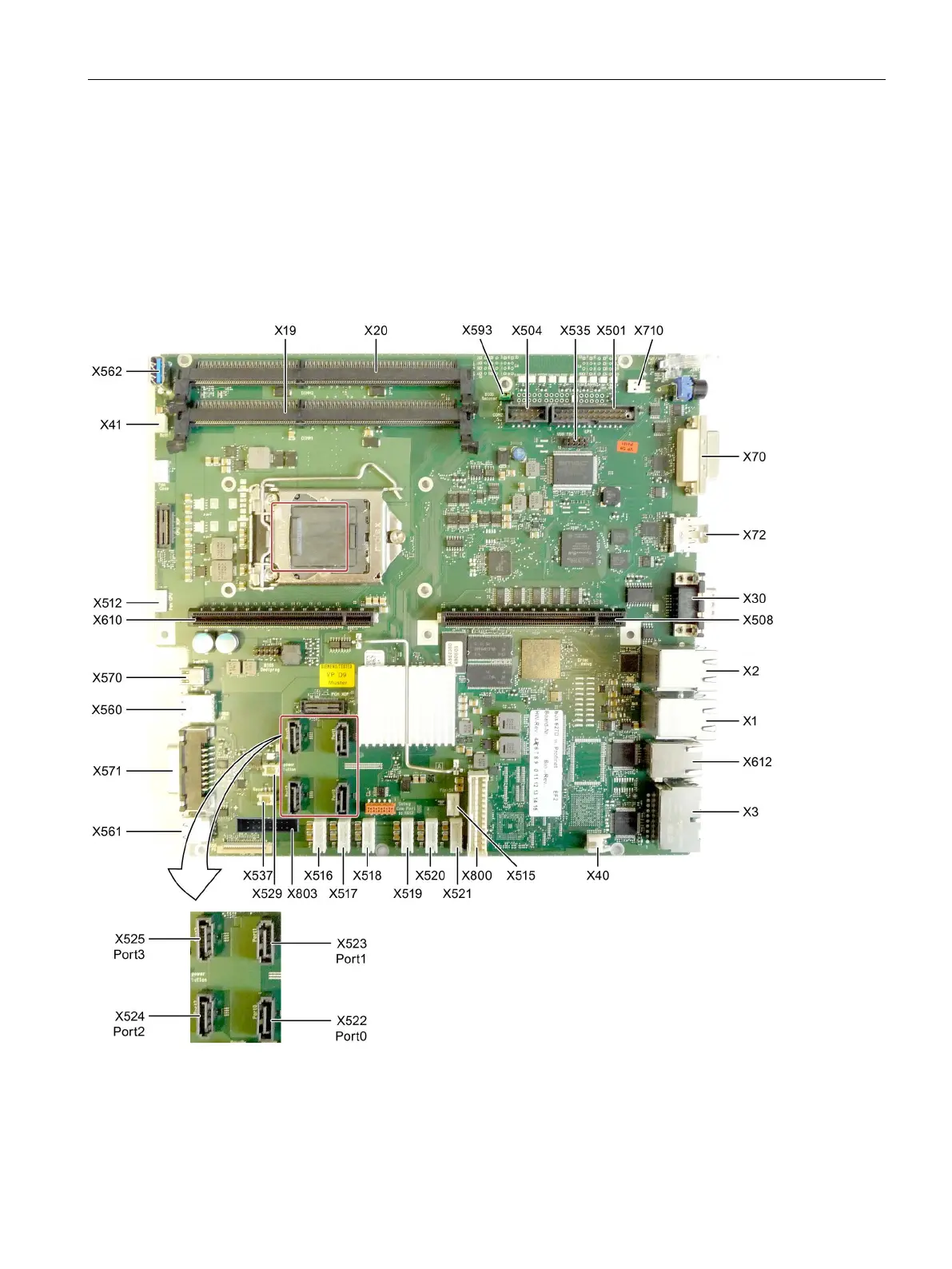

Position of the interfaces on the motherboard
Interfaces
The motherboard of the device features the following interfaces:
● Interfaces for the connection of external devices
● Interfaces for internal components (drives, bus boards etc.)
