Removing a memory module
1
Open the device (Page 59).
2

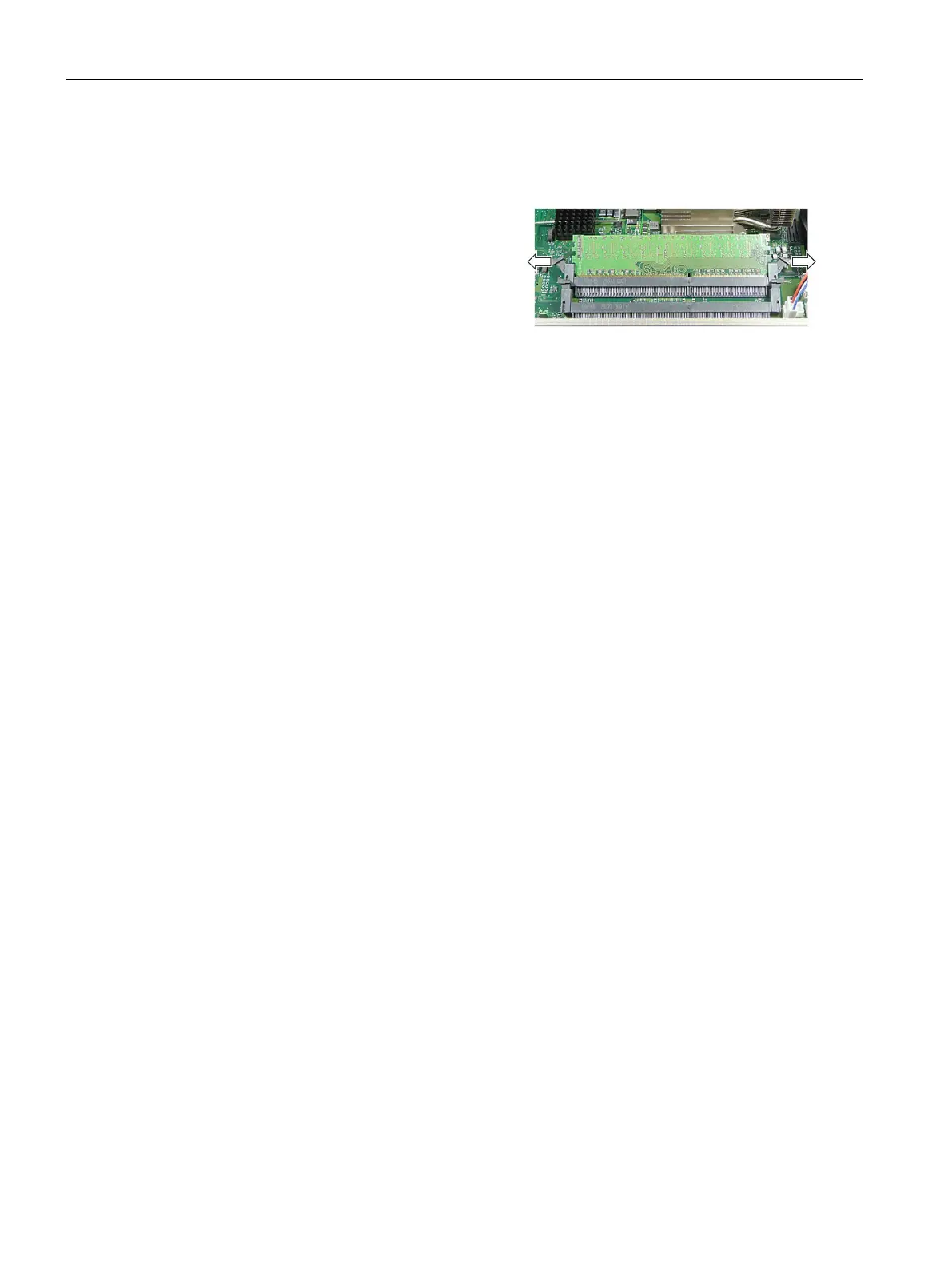

Release the locking mechanisms
on the left and right of the slot.
3
Pull the memory module out of the slot.
4
Close the device.
Display of the current memory configuration
A new memory module is automatically detected. When switching on the device and starting
the BIOS Setup using <F2>, the current memory size is displayed under "Total Memory".
6.3
Expansion cards
6.3.1
Notes on the expansion cards
The device is designed for the following types of expansion cards:
● PCI specification 2.3
● x4: PCIe Gen 2, expansion cards of the PCIe type Gen 1 and Gen 2 are supported.
● x16: PCIe Gen 3, expansion cards of the PCIe type Gen 1, Gen 2, Gen 3 and PEG are
supported.
PCI expansion cards with 5 V and 3.3 V supply voltage can be operated.
Possible configurations for IPC627D:
● 2 × PCI
● 1 × PCI, 1 × PCIe x16
● 1 × PCIe x4 Slot 1, 1 × PCIe x16 Slot 2
Possible configurations for IPC827D:
● 3 × PCI, 1 × PCIe x4 slot 4, 1 × PCIe x16 slot 5
