Installing and connecting the device
3.2 Installing the device
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
31
Installing the device with the vertical mounting kit
The optional vertical mounting kit allows space-saving installation of the device.

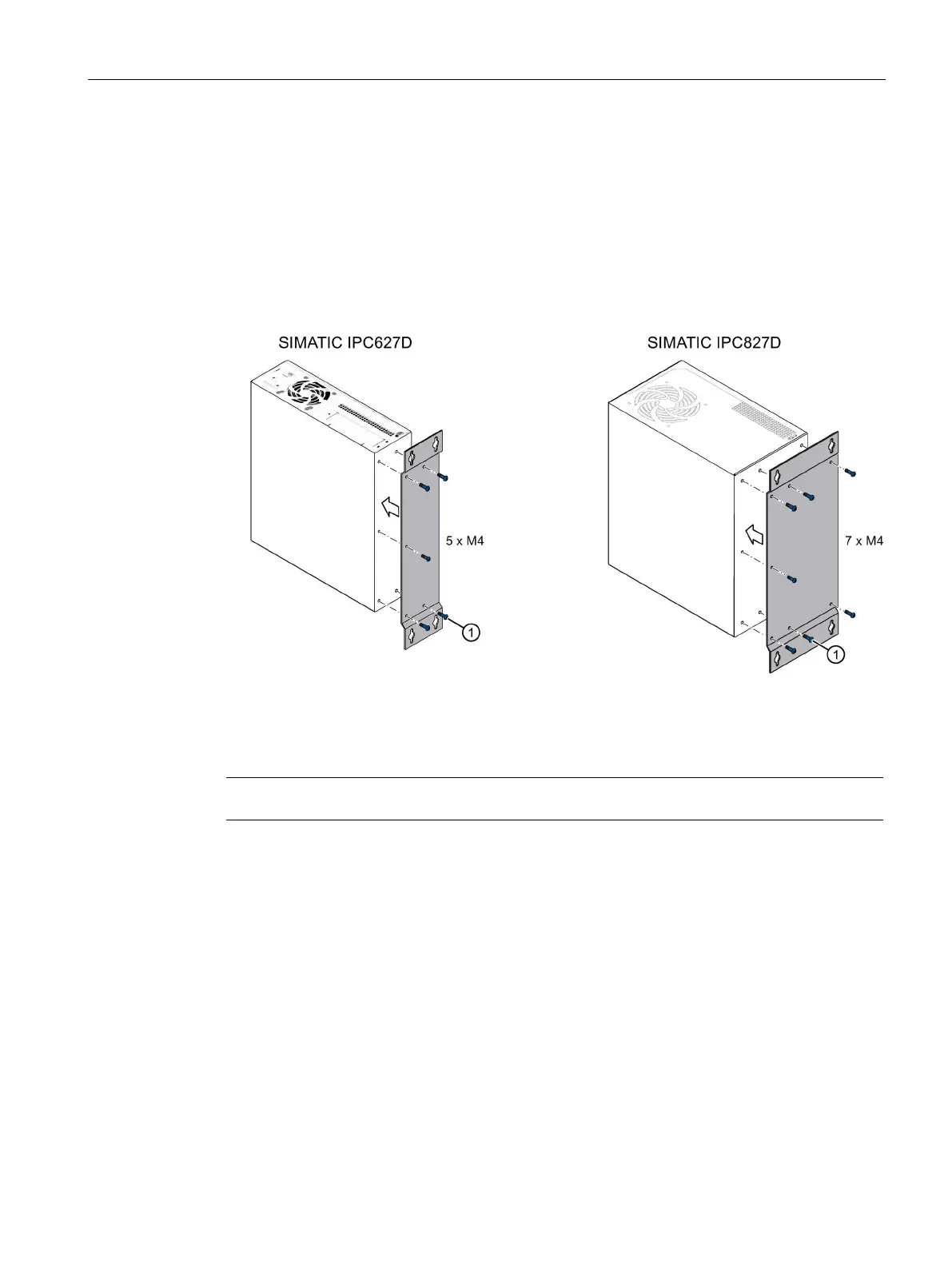

Securing the vertical mounting plate to the device
1. Remove the equipotential bonding screw ① from the device and attach it to the vertical
mounting plate
②.
2. Secure the vertical mounting plate to the device using the following number of screws:
– SIMATIC IPC627D: 5 x M4 screws
– SIMATIC IPC827D: 7 x M4 screws
Note
Read the information in section
Permitted mounting positions (Page 26).
