Technical specifications
8.5 Hardware descriptions
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
127
Version 3
(IPC627D)

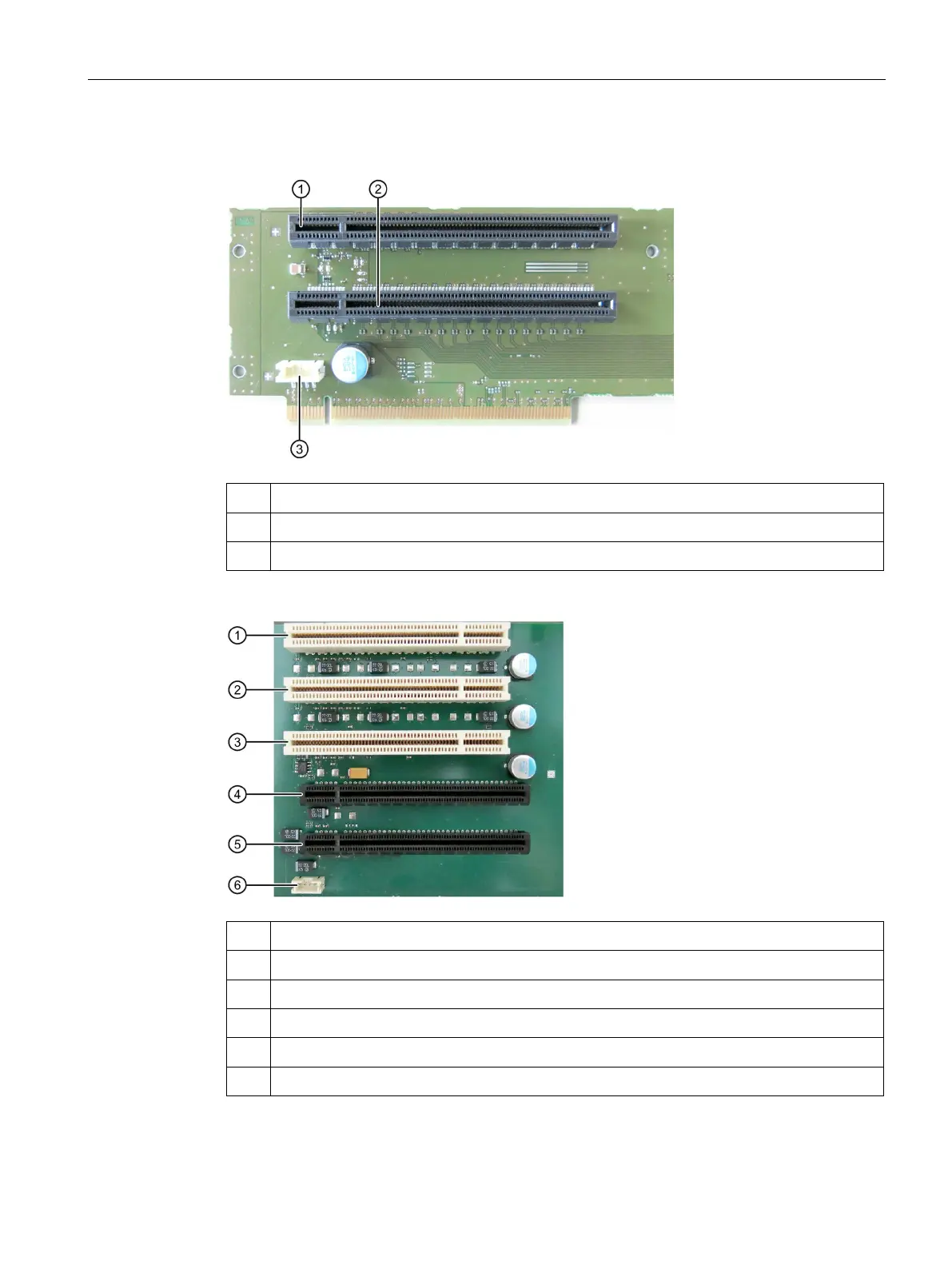

has two PCIe slots.
①
Slot 1 PCI Express x4 (mechanical x16)
②
Slot 2 PCI Express x16
③
12V power supply connection
Version 4
(IPC827D)
has three PCI and two PCIe slots.
①
Slot 1 PCI
②
Slot 2 PCI
③
Slot 3 PCI
④
Slot 4 PCI Express x4 (mechanical x16)
⑤
Slot 5 PCI Express x16
⑥
12V power supply connection
