Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
27

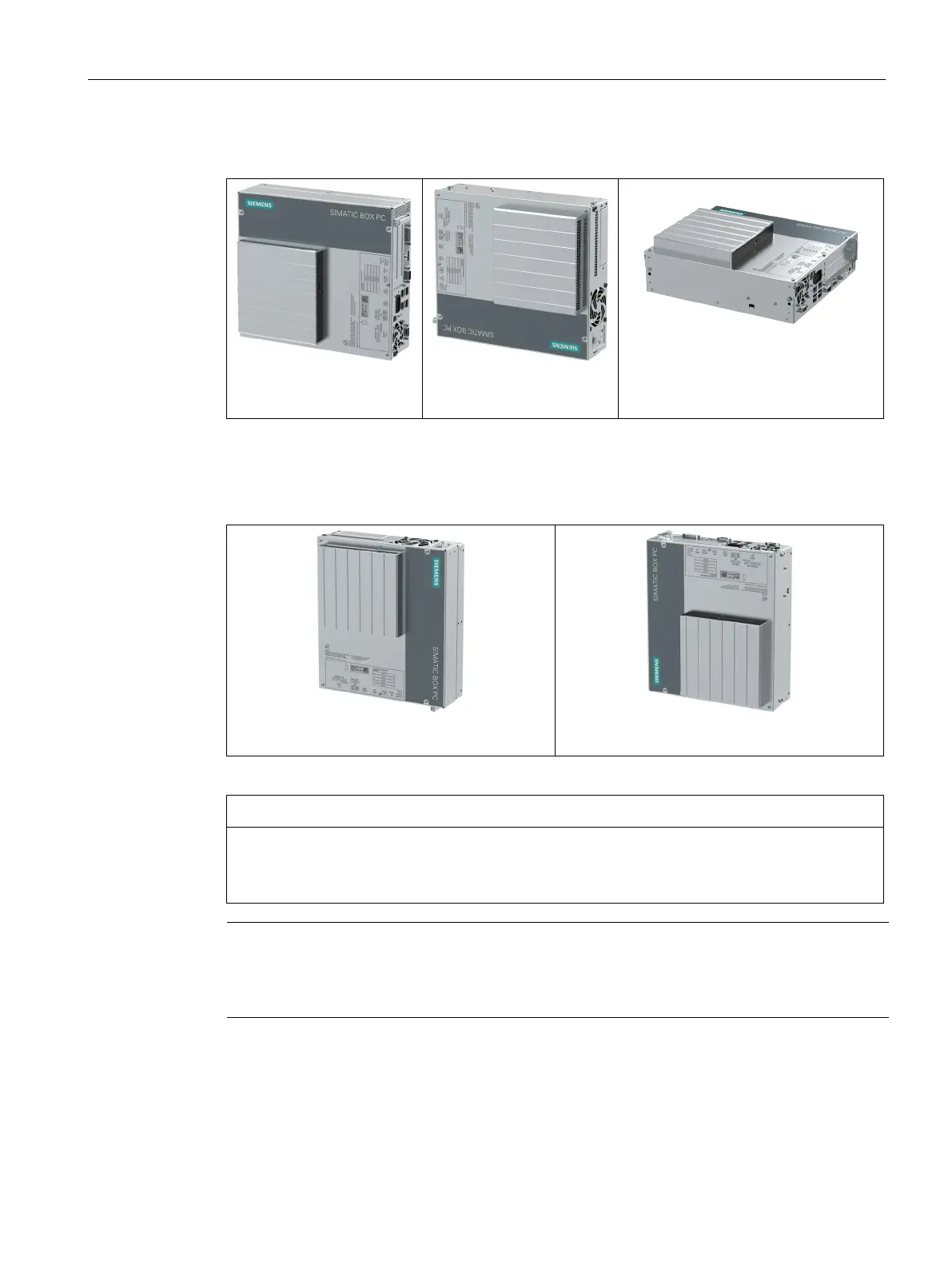

An inclination of ± 20° is permitted for all approved mounting positions.
Position 1 (preferred) for
wall mounting: The
interfaces are at the right.
Position 2 for wall mounting:
The interfaces are at the left.
Position 3 (desktop)
Additional mounting positions according to UL508/CSA 22.2 No. 142
An inclination of ±15° is allowed in this mounting position.
Position 4 (interfaces facing down)
CD/DVD drive may not be operated.
Position 5 (interfaces facing up)
CD/DVD drive may not be operated.
Points to note for position 4 and 5
CD/DVD and floppy drives cannot be operated in this position. The CD drawer opens
upward or downward, which can lead to mechanical damage in the drawer mechanism.
Note
Mounting positions 4 and 5 are also permitted for the Information Technology Equipme
nt
area when the device is mounted in an enclosure that fulfills the requirements stipulated by
sections 4.6 and 4.7.3 of IEC/UL/EN/DIN EN 60950
-1.
