Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC627D/827D
36 Operating Instructions, 09/2014, A5E32990859-AB
Localized information
For countries other than the USA and Canada:
230 V supply voltage
This device is equipped with a safety-tested power supply cord which may only be
connected to a grounded safety power outlet. If you choose not to use this cable, you must
use a flexible cable of the following type: Cable cross-section at least 0.82 mm
2
and 15 A /
250 V ground contact connector. The cable set must be compliant with the safety regulations
of the country where the device is to be installed and carry the identification labels required
by law.
For the USA and Canada
:
For the United States and Canada, a CSA or UL-listed power supply cord must be used.
The connector must be compliant with NEMA 5-15.
120 V supply voltage
A flexible cable with UL approval and with CSA label which has the following features is to
be used: Type SJT with three leads, min. 18 AWG conductor cross-section, max. 4.5 m in
length and parallel ground contact connector 15 A, min. 125 V.
240 V supply voltage
A flexible cable with UL approval and with CSA label which has the following features is to
be used: Type SJT with three conductors, min. 18 AWG conductor cross-section, max.
length 4.5 m, and tandem grounded connector 15 A, min. 250 V.

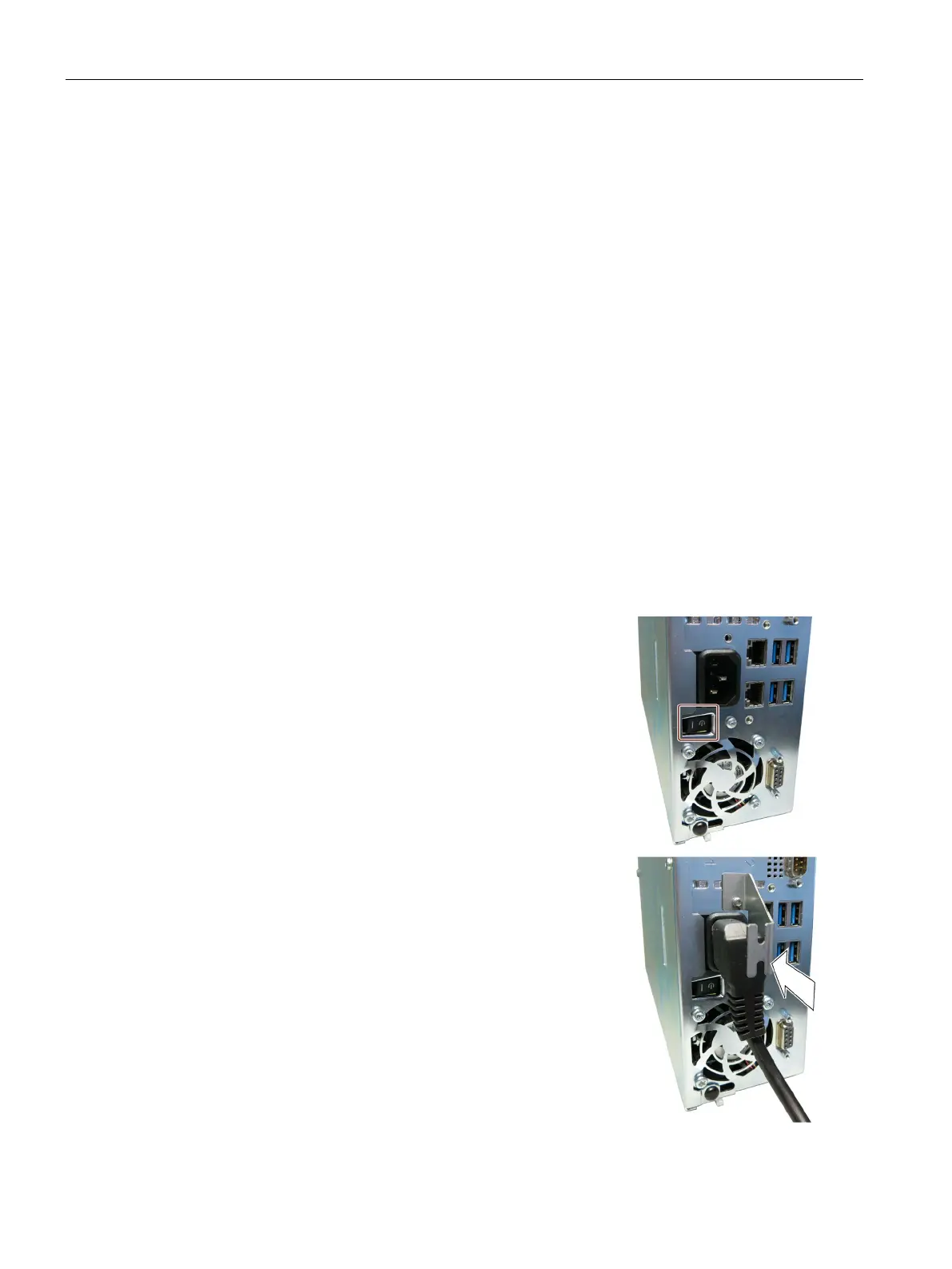

Procedure
1.
Make sure that the ON/OFF switch is in position '
-'
(Off) to avoid unintentional startup of the device
when you plug in the power cord.
2.
Connect the appliance connector to the device.
3.
Connect the power cable with the safety power
outlet.
4.
If necessary, install the enclosed cable grip.
