Siemens SIMATIC IPC827D User Manual

Expanding and assigning parameters to the device
6.3 Expansion cards
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
65

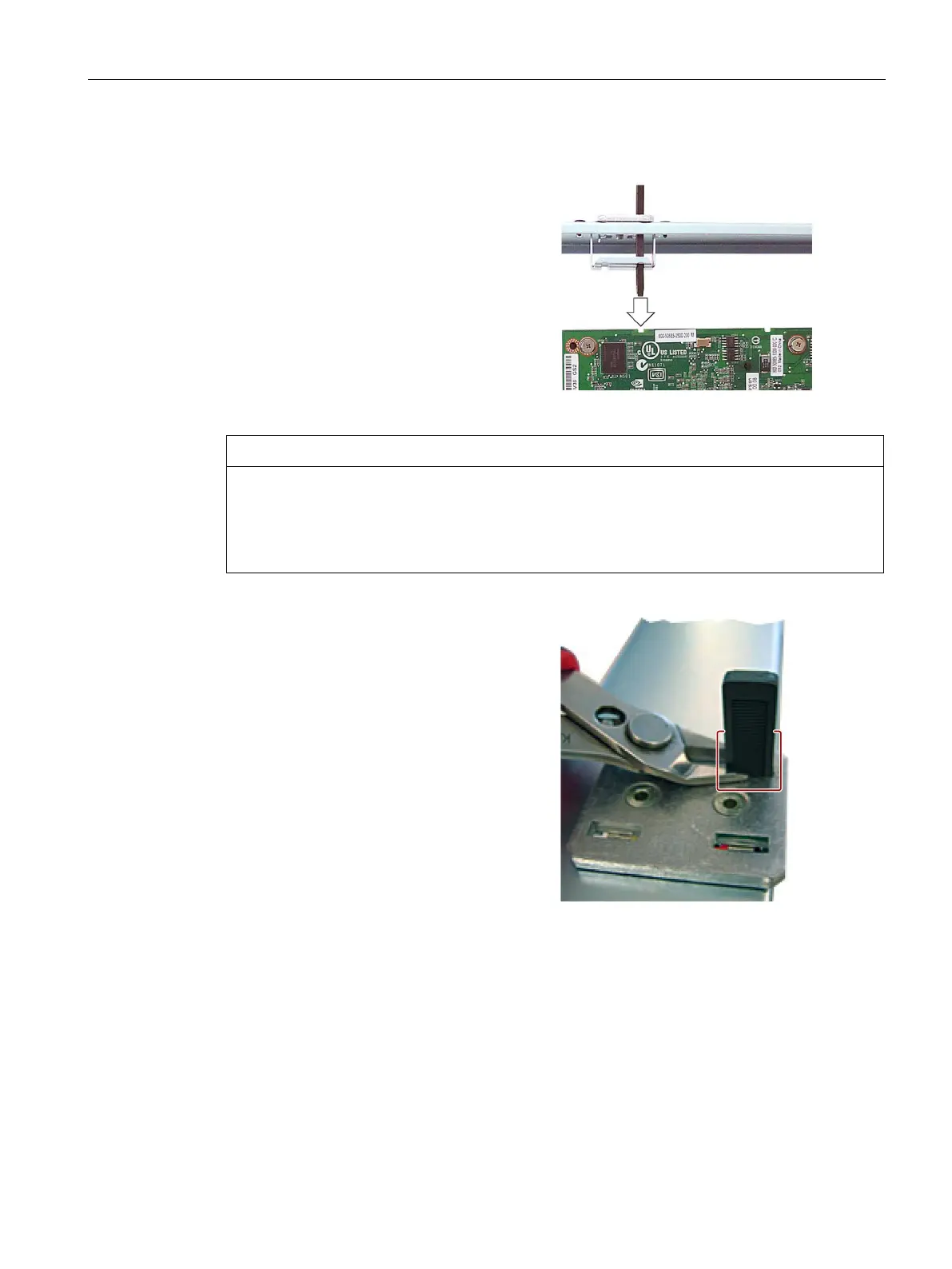

Inserting the slider
1.
Push the slider through the guide
slot until it is firmly seated on the
card. The card must now be
inserted into the slot.
NOTICE
Damage to the expansion card.
The expansion card can break if excessive force is used.
• Do not apply any pressure.
• Do not apply excessive force on the slider when you push it onto the expansion card.
2.
Cut off the protruding part of
the slider element.
Use a knife to apply a cut on
the slider at the upper edge
of the bracket and then break
this section off. Cut
off the
excess length with a diagonal
cutter.
Notes on the allocation of resources
The slots for the expansion cards come with exclusive interrupts. The assignment of the PCI
IRQ line to the PCI slot is explained in the section "System resources (Page 137)".
Note on PROFINET expansion cards
For devices with CP 1616 on-board: Before you install a PROFINET expansion card, for
example CP 1616, deactivate the "Onboard PROFINET" parameter in the BIOS setup
"Advanced" menu, submenu "Peripheral Configuration".
