Siemens SIMATIC IPC847D User Manual

Technical specifications
8.5 Hardware description
SIMATIC IPC847D
144 Operating Instructions, 01/2014, A5E32997454-AA

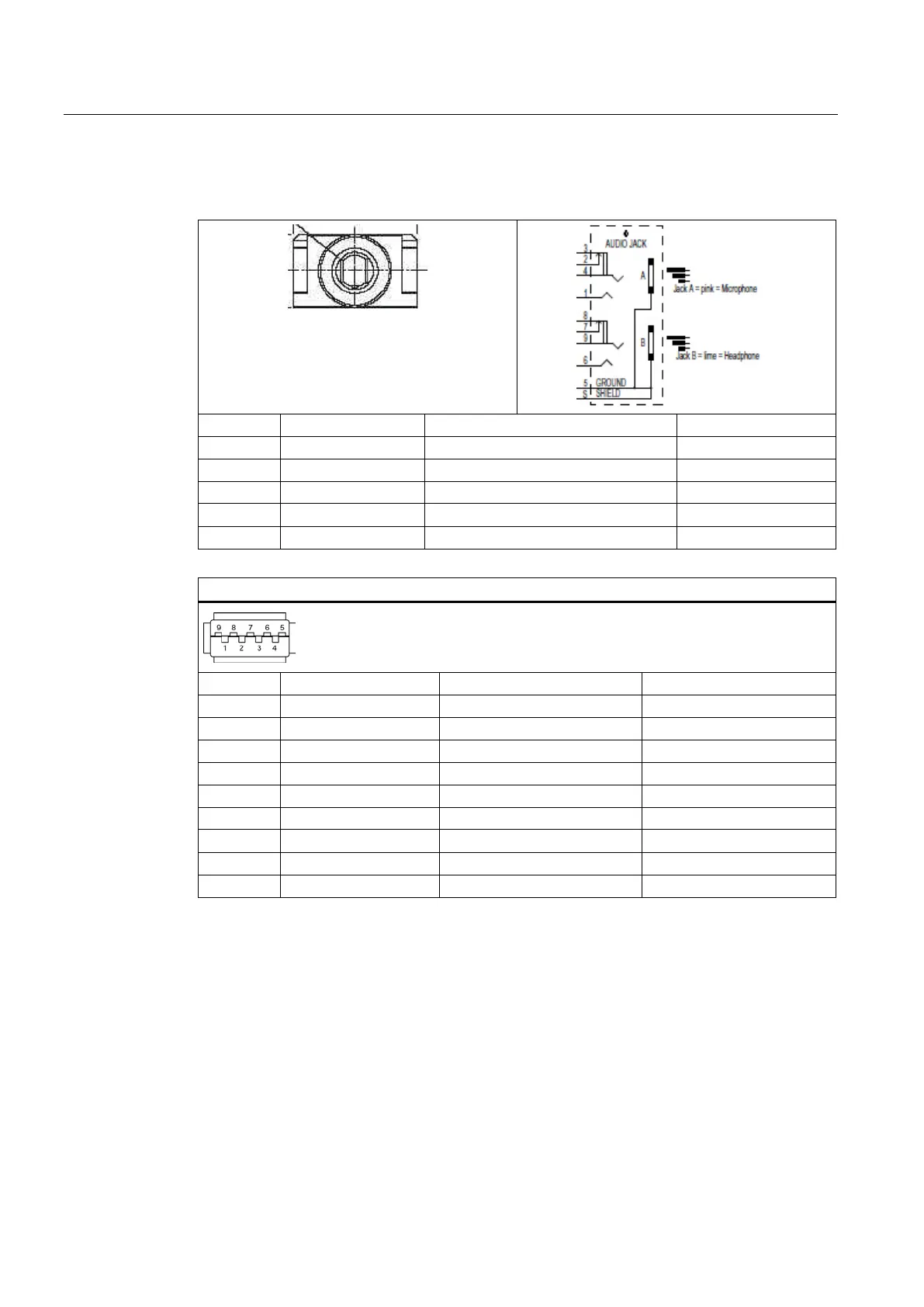

Line Out interface, headset, X60 top
Pin no.
Short name
Meaning
Input / output
5
M
Logic ground
Output
6
Left
Left channel
Output
7
7M
Analog ground
Output
8
Sense
Switch contact for device identification
Input
9
Right
Right channel
Output
USB 3.0 port
Pin no.
Short name
Meaning
Input / output
1
VBUS
+ 5 V (fused)
Output
2
D-
Data channel USB2
Input / output
3
D+
Data channel USB2
Input / output
4
GND
Ground
–
5
RX-
Data channel USB3
Input
6
RX+
Data channel USB3
Input
7
GND
Ground
–
8
TX-
Data channel USB3
Output
9
TX+
Data channel USB3
Output
