Siemens SIMATIC IPC847D - Integrating a New Hard Disk Drive in the RAID System

Device maintenance and repair
7.3 Managing RAID systems
SIMATIC IPC847D
Operating Instructions, 01/2014, A5E32997454-AA
93
7.3.7
Integrating a new hard disk drive in the RAID system
The RAID system is configured in the delivery state so that a new hard disk must be
integrated manually in case of an error. To integrate the hard disk automatically, activate
"Automatic rebuild" in the "Preferences" menu of the RAID software.
Automatic integration of a hard disk
NOTICE
Data loss
The hard disk to be integrated is not checked for partition information or existing data
during automatic integration.
All partitions and data on the hard disk are deleted without warning. Insert only a brand-
new
hard disk.
Requirement
:
● "Automatic rebuild" is selected in the "Preferences" menu of the RAID software.
● The hard disk must be completely new or set up as spare drive for this purpose. Notes on
creating spare drives are available in the controller documentation.
Sequence

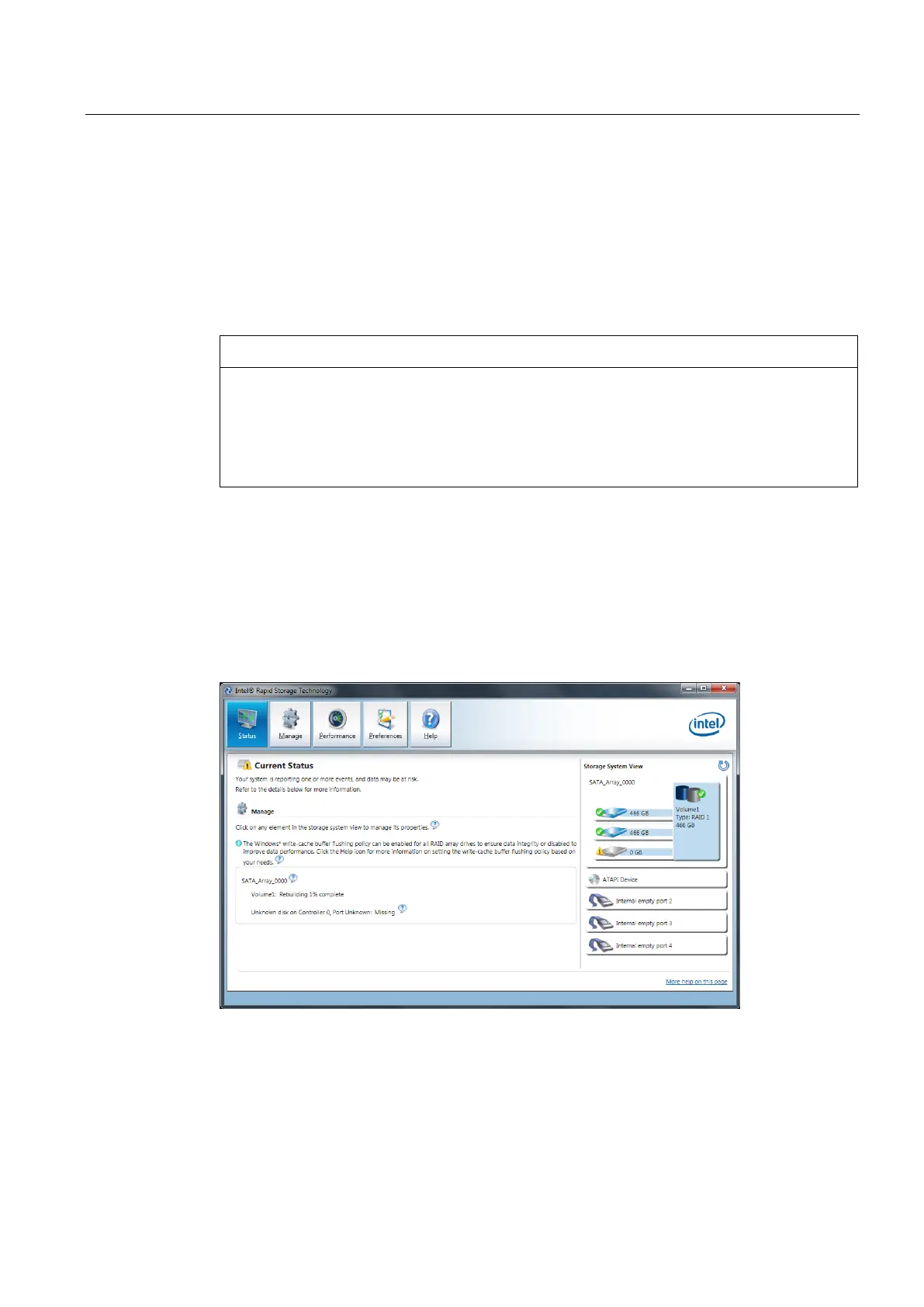

The following figure is an example for the automatic rebuilding process.
A defective hard disk is still displayed during the rebuilding process. This display disappears
when the rebuilding process is completed.
