Siemens SIMATIC IPC847D User Manual

Expanding and assigning parameters to the device
6.5 Drives
SIMATIC IPC847D
Operating Instructions, 01/2014, A5E32997454-AA
79
6.5.3
Removing and installing drives in the front drive cage
Requirement
1. The device is opened.
2. The drive fan has been removed and its adapter plug pulled.

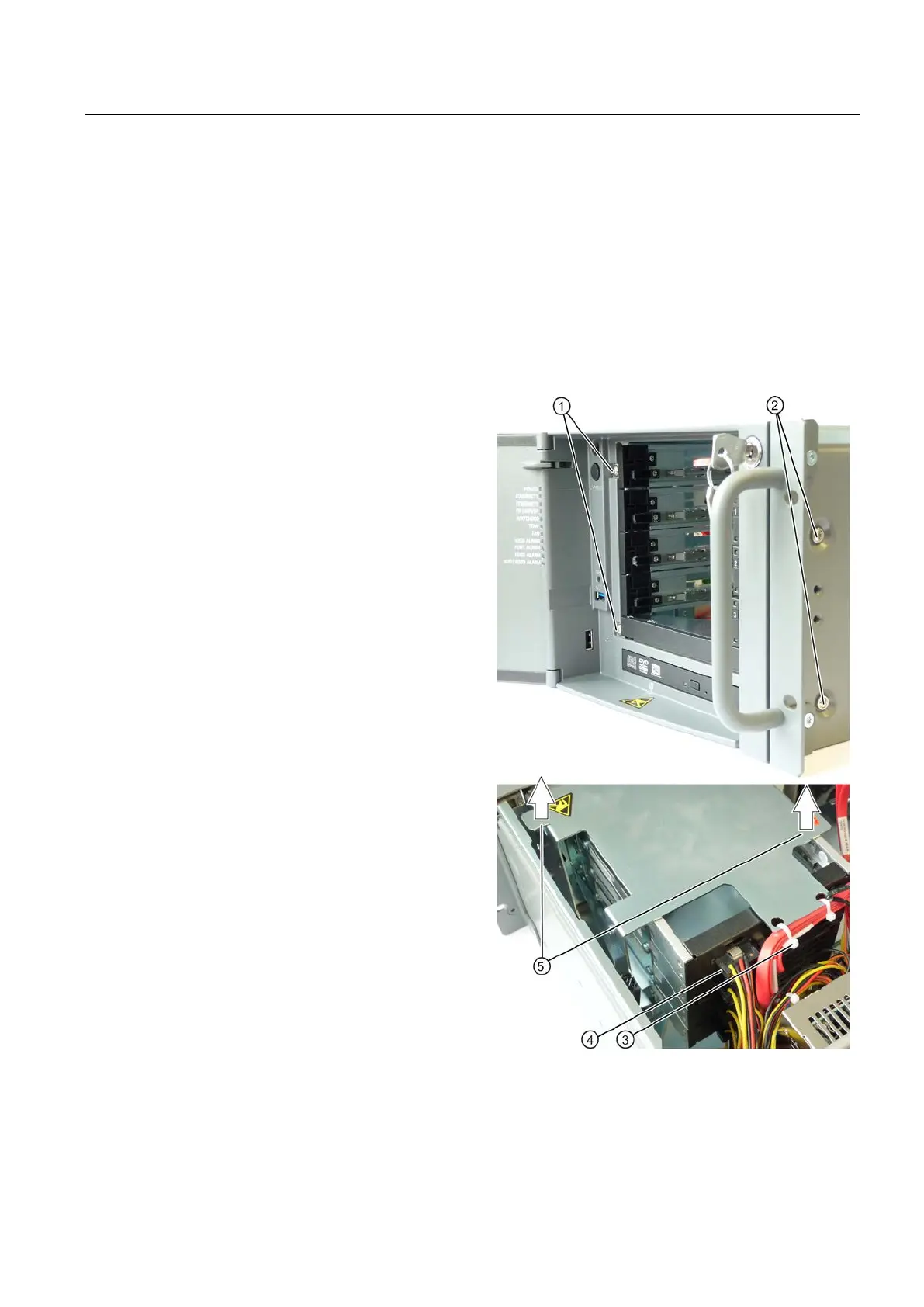

Procedure - removing the drive cage
1.
Remove all drive trays from the
removable drive bay.
2.
Remove the retaining screws
①
and ②
.
3.
Remove the cable ties ③
.
4.
Then disconnect the power cable
and the data cable
④ from the
installed removable drive bays.
5.
Lift the drive cage
⑤ slightly at
the points indicated by the arrows
and slide it approximately 1 cm
toward the power supply.
6.
Carefully lift the drive cage
⑤ to
the top out of the device and put it
down.
