Expanding and assigning parameters to the device
6.5 Drives
SIMATIC IPC847D
80 Operating Instructions, 01/2014, A5E32997454-AA
Procedure - removing the hard disk drive

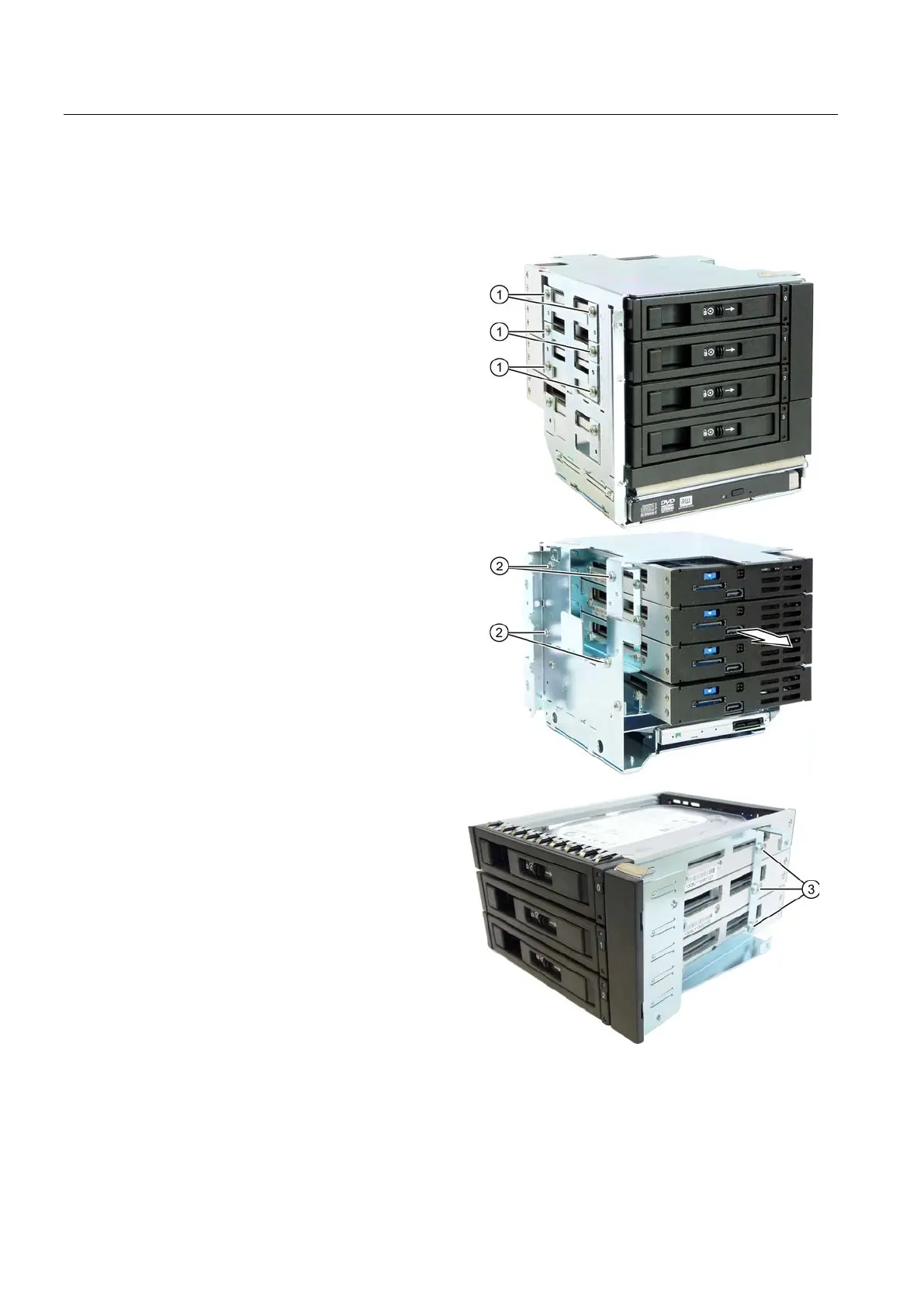

The drive cartridges are installed once again in the figures below for a better orientation.
1.
Loosen the respective screws
①
on the left and
② right on the
drive cage.
In the example, the top removable
drive bay with three removable
drive bays is removed.
2.
Remove the removable drive bay
by pulling it out toward the back
(arrow).
3.
Loosen the screws ③
.
4.
Remove the required removable
drive bay with the drive.
