Expanding and assigning parameters to the device
6.5 Drives
SIMATIC IPC847D
Operating Instructions, 01/2014, A5E32997454-AA
81

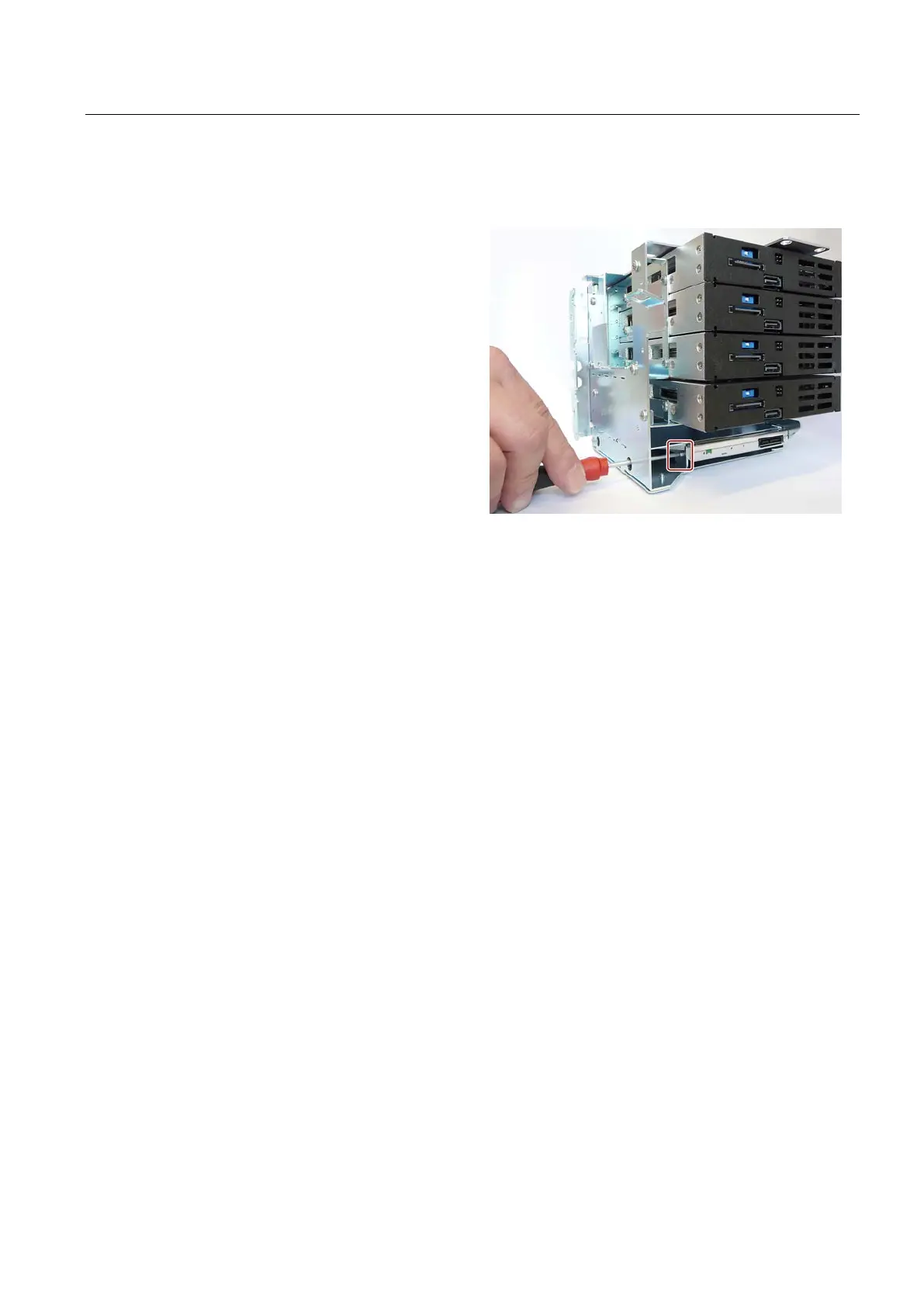

Procedure - removing the optical drive
1.
Loosen the 2
× 2 screws each at
the specified
location on both
sides of the optical drive.
2.
Remove the optical drive.
Installing drives
1. Install the drives in the drive cage in reverse order.
2. Install the drive cage in the device in reverse order.
