Overview
1.2 Design of the device
SIMATIC IPC847D
16 Operating Instructions, 01/2014, A5E32997454-AA
1.2
Design of the device
1.2.1
Device views

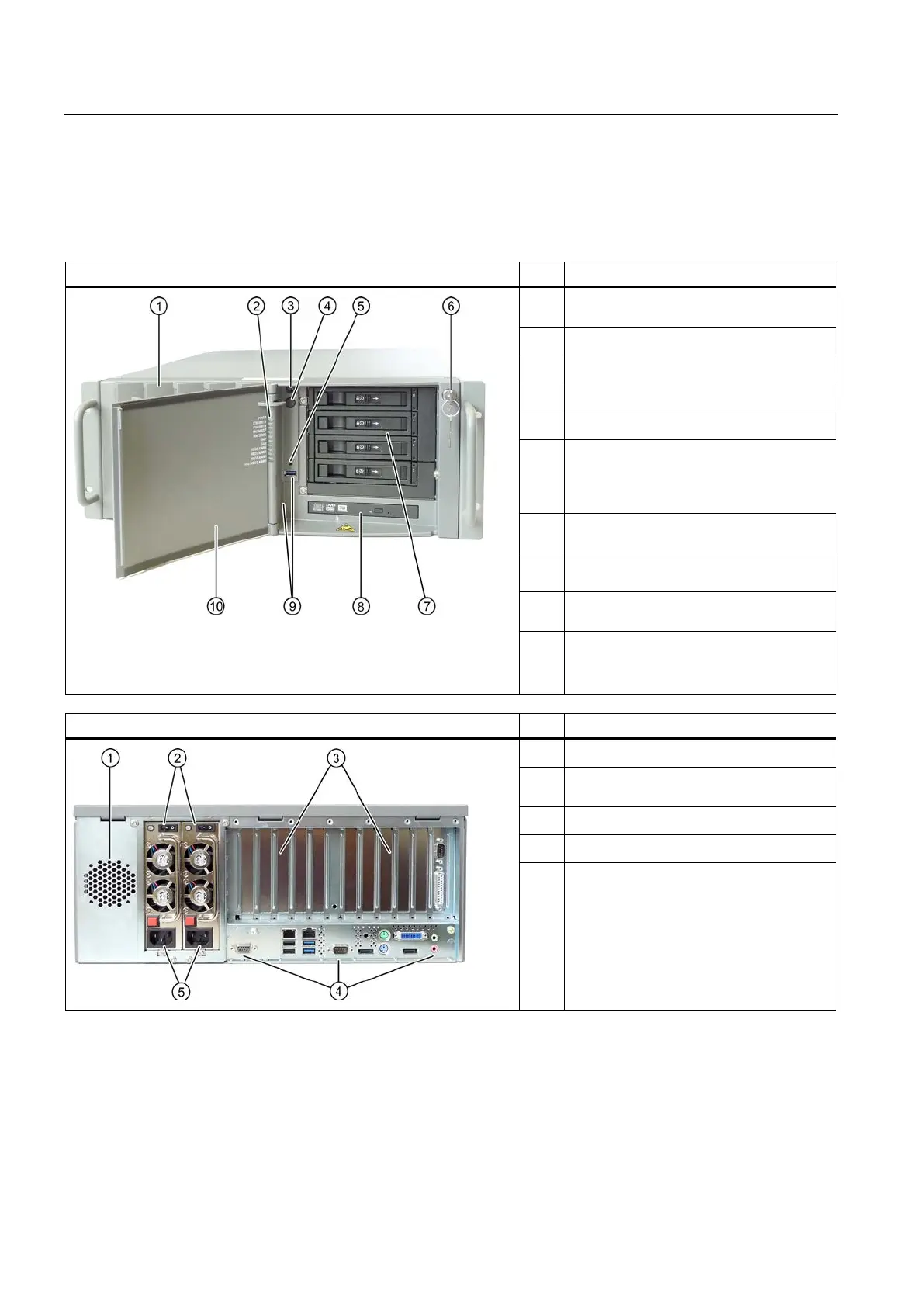

Front view of the device (example)
Item
Description
①
Front panel with vent openings (filter pad
and fan behind the front panel).
②
Status displays
③
Cover screws
④
On/off button
⑤
Reset button
⑥
Lock
• Key vertical: open
• Key horizontal: closed
⑦
Installation option for hard disk removable
drive bay or 5.25" hard disks
⑧
Installation option for optical drive
(slimline), e.g., DVD
⑨
USB interface: 1 × USB 3.0, 1 × USB 2.0
(left on the front door)
⑩
Lockable front door for access security.
Lock the front door during normal
operation with the lock
⑥
.
Rear view of the device (example)
Item
Description
①
Ventilation
②
Bay for power supply (optional, e.g.,
redundant power supply)
③
Expansion card slots
④
Interfaces
⑤
Power supply mains connection
