Siemens SIMATIC S7-300 Module data Hardware And Installation Manual

Commissioning
S7-300 Programmable Controller Hardware and Installation
8-10 A5E00105492-01
Connecting the PG to Several Nodes
Stationary PG
1. Use bus connectors to connect a stationary PG in the MPI subnet to the other
nodes of the MPI subnet.

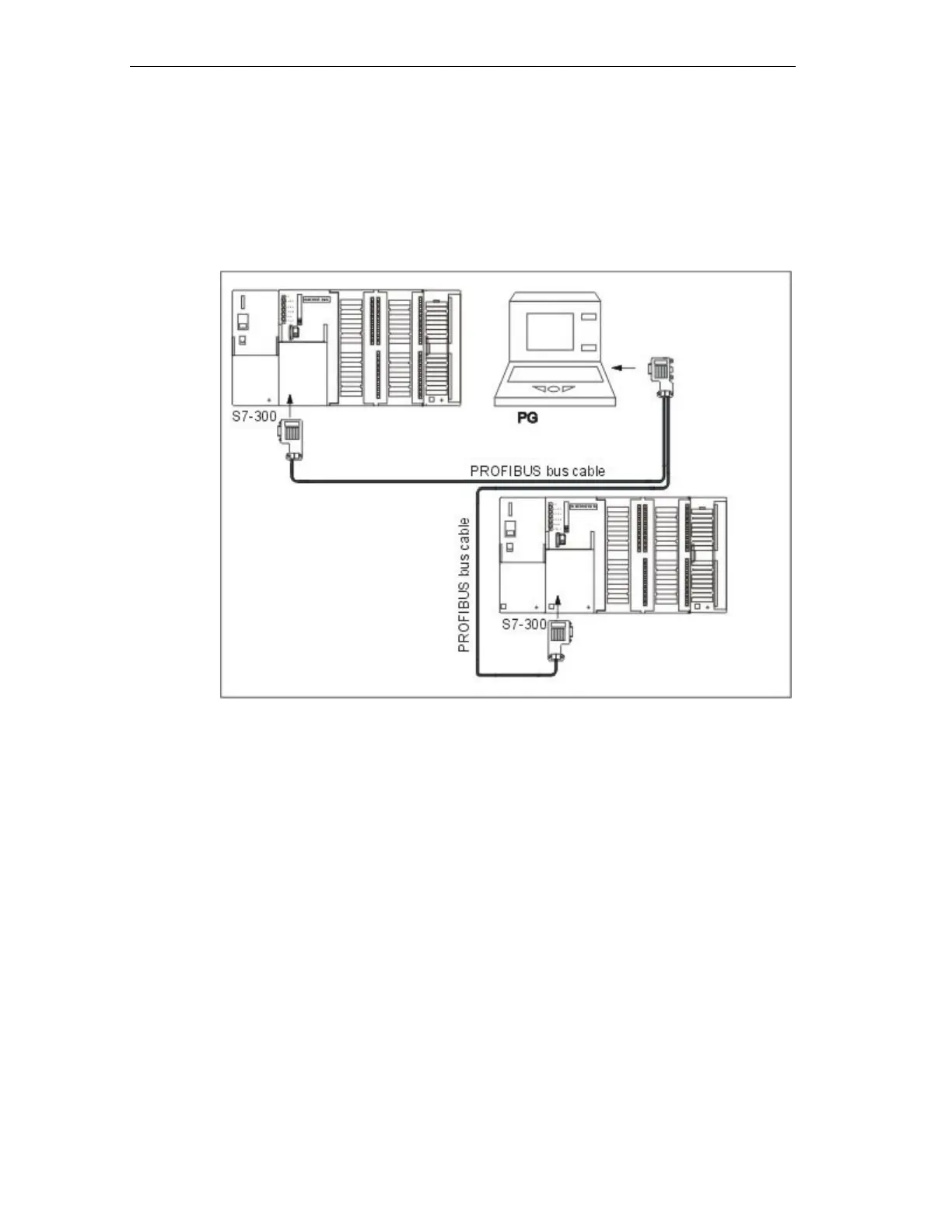

The figure below shows the interconnection of two networked S7-300s
interconnected with bus connectors.
Figure 8-5 Connecting a PG to multiple S7-300 PLCs
PG for commissioning or maintenance
1. Use a stub cable to connect the commissioning and maintenance PG to the
other subnet nodes. The bus connector of these nodes must be equipped with a
PG socket.
The figure below shows the interconnection of two networked S7-300 and a PG.

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
