Installation
S7-300 Programmable Controller Hardware and Installation
5-4 A5E00105492-01
Preparing the 2-m profile rail for mounting
1. Cut the 2-m profile rail to the required length.
2. Mark out:
– four bores for the fixing screws (for dimensions refer to "Dimensions for
fixing holes")
– one hole for the protective conductor bolt.
3. If the length of your profile rail exceeds 830 mm, you must stabilize it by
providing additional holes for fixing it with more screws.
Mark out these holes along the groove in the middle section of the profile rail
(see the Figure below). The pitch should be approx. 500 mm.
4. Drill the marked holes to a diameter of 6.5
+0.2
mm for M6 screws.
5. Mount an M6 bolt for fixing the ground conductor.
Groove for drilling
extra fixing screw
Hole for connection
of protective conductor
Hole for fixing screw
Drilled hole for extra
Fixing screw
Hole for the fixing screw

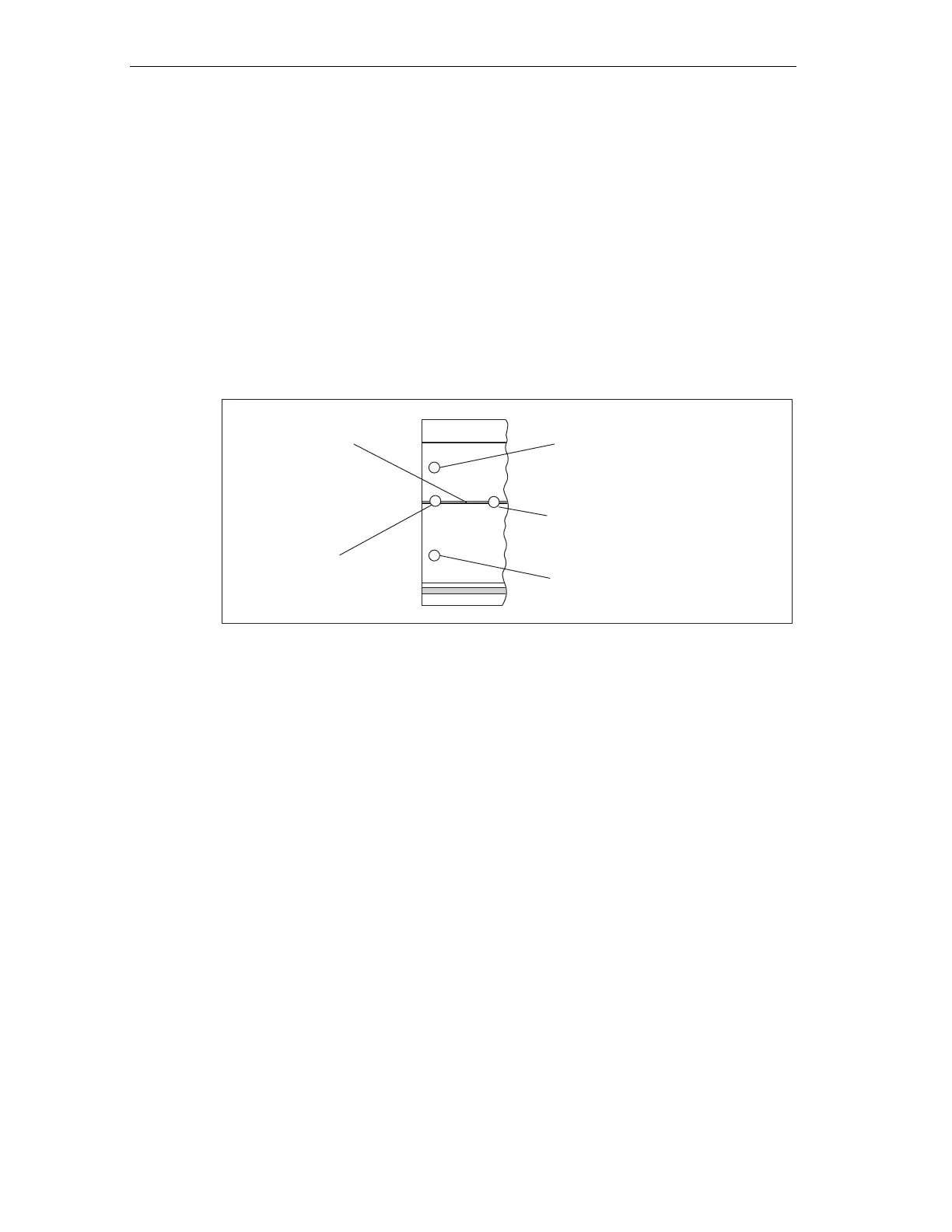

Figure 5-1 Holes for mounting the 2-m profile rail

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
