• Width of the shielding terminal module: 80 mm
• Mountable shielding terminals per shielding terminal module: max 4
Table 4-3 Shielding terminals - Overview
Cable with shielding diameter Shielding terminal Order
No.
Cable shielding diameter 2 mm to 6 mm 6ES7 390–5AB00–0AA0
Cable shielding diameter 3 mm to 8 mm 6ES7 390–5BA00–0AA0
Cable shielding diameter 4 mm to 13 mm 6ES7 390–5CA00–0AA0
1
2
2
Shield must be under
shield terminal clamp.

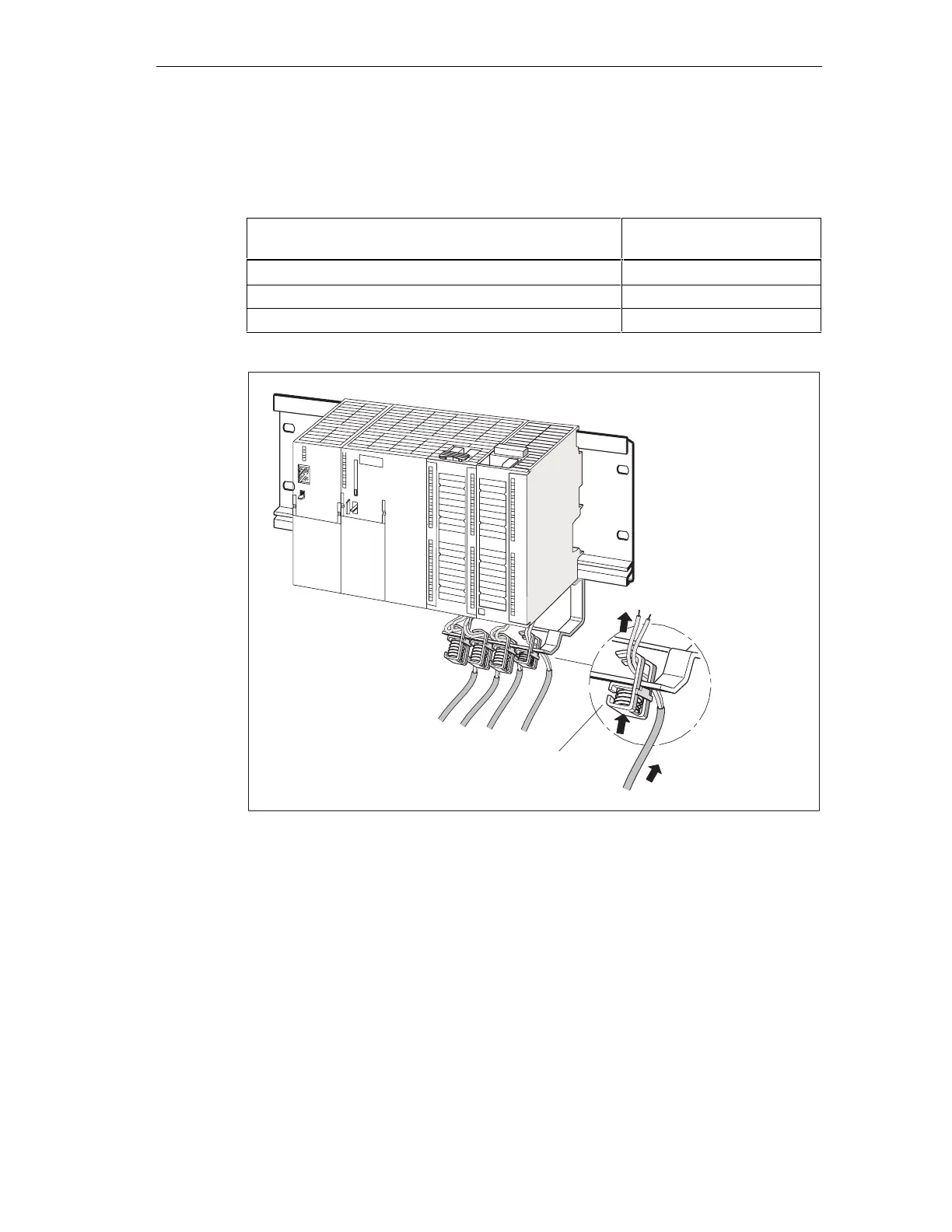

Figure 4-2 Shielding terminal module

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
