Siemens SIMOTICS M-1PH8 Configuration Manual




O
O

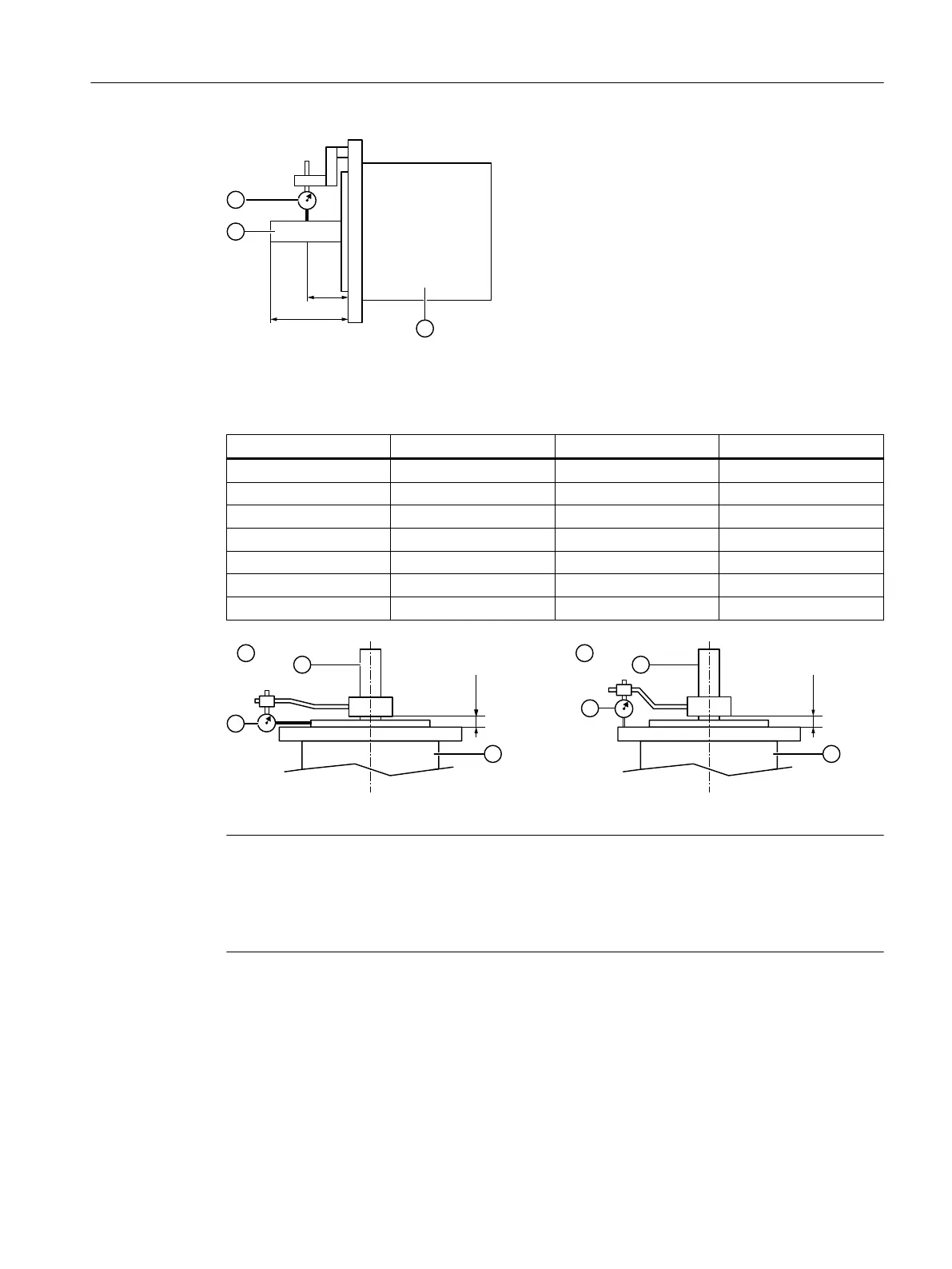

Figure4-61 Checking the radial eccentricity
Table 4-29 Concentricity and axial eccentricity tolerance of the 󹪞ange surface to the shaft axis
(referred to the centering diameter of the mounting 󹪞ange)
Shaft height Tolerance level N Tolerance level R Tolerance SPECIAL
80 0.1 0.05 0.03
100 0.1 0.05 0.04
132 0.125 0.063 0.04
160 0.125 0.063 0.04
180 0.125 0.063 -
225 0.125 0.063 -
280 0.16 0.08 -






PP
PP
$%
Figure4-62 Checking the concentricity and axial eccentricity
Note
Acceptance test certi󹪝cate
The runout, concentricity and axial eccentricity are tested in the Siemens factories as standard.
For 1PH8 motors, an acceptance test certi󹪝cate with the values actual measured can be ordered
with option B36.
Mechanical properties
4.8Radial eccentricity, concentricity and axial eccentricity
1PH8 SIMOTICS M main motors
Con󹪝guration Manual, 12/2022, A5E51895839A 139
