Note
Flange mounting SH 180 to SH 280
For SH 180 to SH 280, 󹪞ange mounting is only possible using studs and nuts. Clearance M1 for
threading the nut between the motor 󹪞ange and motor frame according to DIN 42948.
NOTICE
Check the bearing
If liquid accumulates at the 󹪞ange because of vertical or horizontal mounting, the bearing and
the bearing grease may be adversely a󹪜ected.
Prevent liquid from collecting at the 󹪞ange.
Note
Attaching plastic covers for SH 80 up to SH 160
With the forced-ventilated versions of shaft heights 80 to 160, before the motor is
commissioned you must replace the plastic covers that were removed so that the mounting
bolts could be tightened.
DOZD\VUHSODFH
ZLHGHUHLQVHW]HQ
6,(0(16

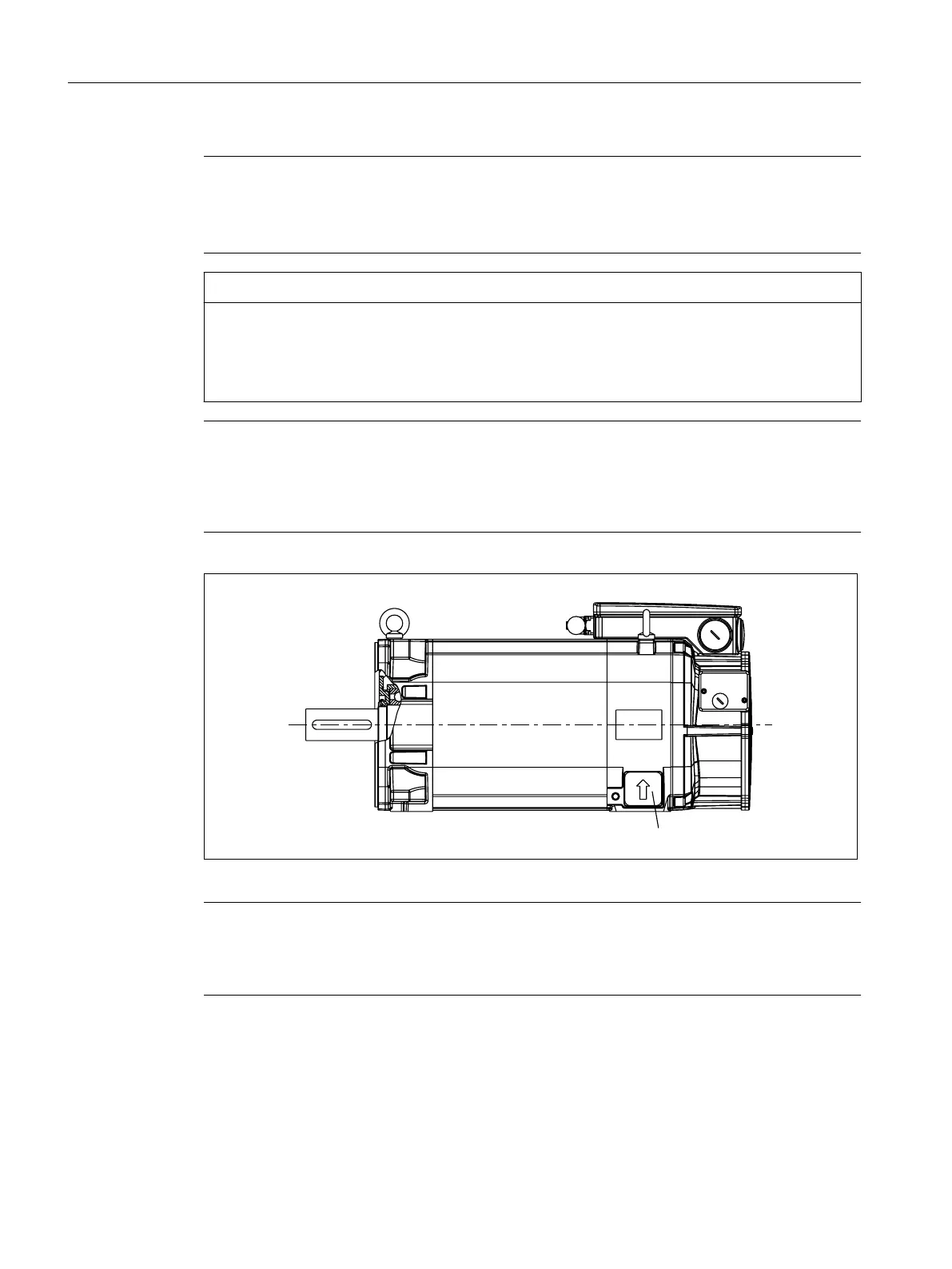

Figure4-63 Cover for mounting foot
Note
Mounting air-cooled motors
Air-cooled motors must be mounted in such a way that the cooling air can enter and be
discharged without any obstruction (see also Chapter "Cooling").
4.10.2 Natural frequency when mounted
The motor is a system which is capable of vibration at its natural frequency. For all motors, this
natural frequency lies above the speci󹪝ed maximum speed.
Mechanical properties
4.10Vibration response
1PH8 SIMOTICS M main motors
148 Con󹪝guration Manual, 12/2022, A5E51895839A
