Slot dimensions for the intermediate housing
SH 80 SH100 SH132 SH160
A 155 196 260 314
B 99 133 183 225
C 6 6 7 7
R 16 16 19 19
D 170 185 175 180
4.6.4 Suggestion for an adapter for bearingless, frame-supported rotating unions
Note
Comply with the manufacturer's speci󹪝cations
Comply with the speci󹪝cations and instructions provided by the manufacturer when installing
the rotating union.

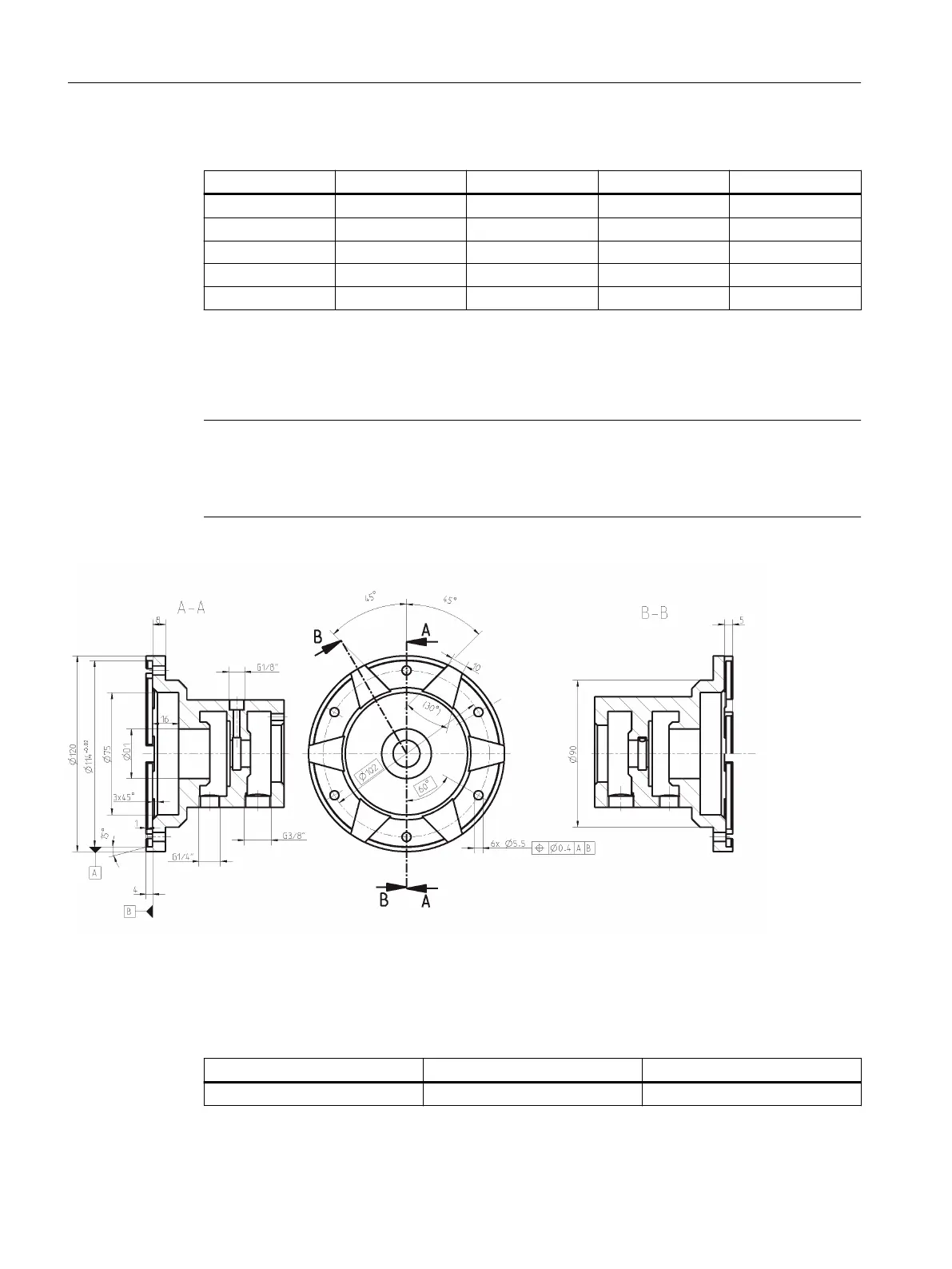

Figure4-12 Example of the version of an adapter for supporting the static part of a bearingless, frame-supported rotating
union
1PH808. 1PH810.-1PH816.
Diameter D1 Diam. 22.5 H7 Diam. 30.5 H7
Mechanical properties
4.6Mounting of rotating unions on 1PH8 hollow-shaft motors
1PH8 SIMOTICS M main motors
110 Con󹪝guration Manual, 12/2022, A5E51895839A
