6HQVRU'(&K6HQVRU'(&K
5HIHUHQFHPDUNIRUWKHVSHHG
DQGDQJOHGHWHFWLRQ

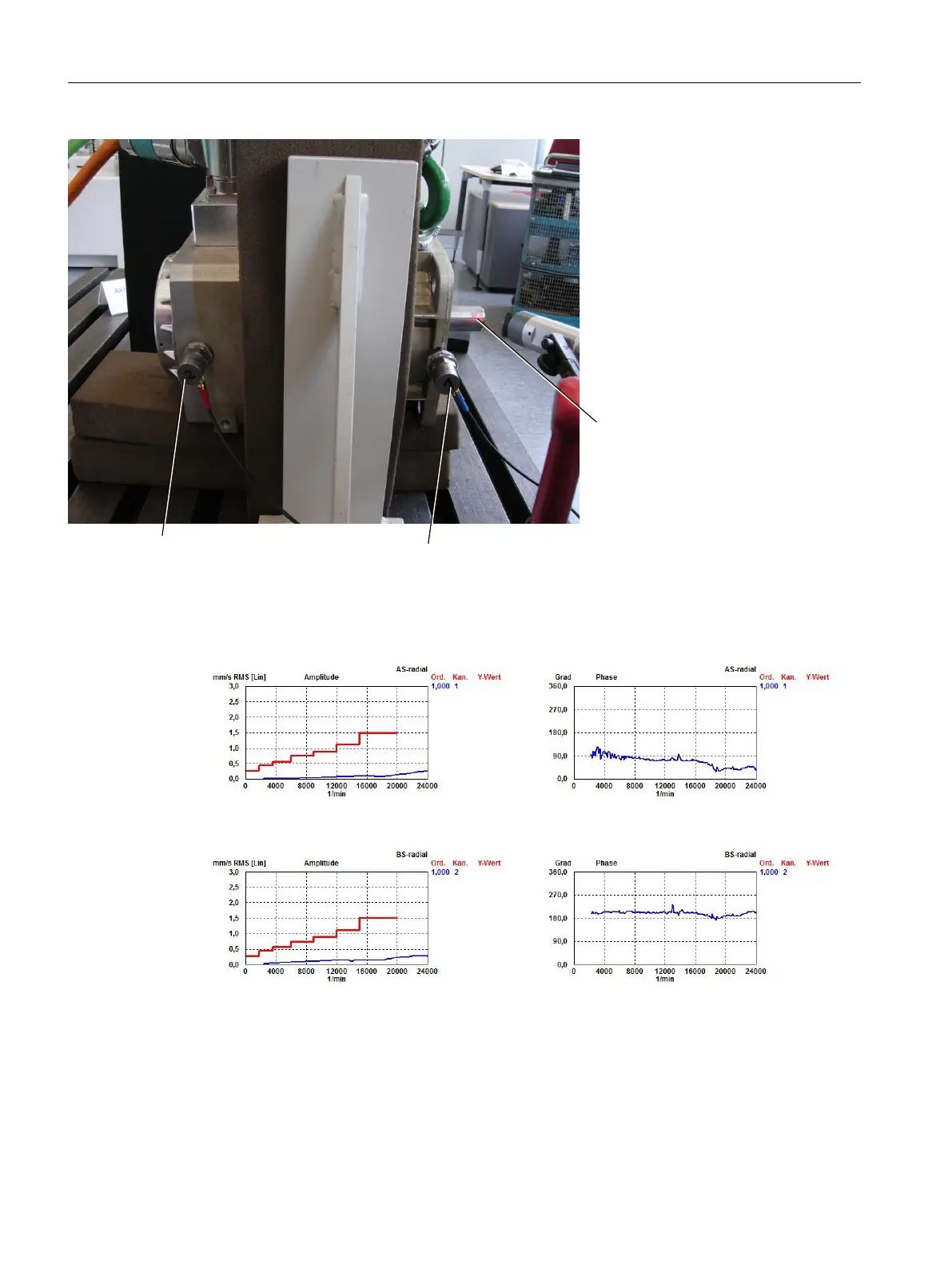

3. Position the measuring sensors: Sensor 1 for the DE, sensor 2 for the NDE.
4. Perform the reference measurement on the freely suspended motor for the DE and the NDE.
Measure the absolute value and angular position of the imbalance (1storder).
5. Attach the coupling to the shaft extension (DE).
Mechanical properties
4.9Balancing
1PH8 SIMOTICS M main motors
144 Con󹪝guration Manual, 12/2022, A5E51895839A
