① Water drainage hole

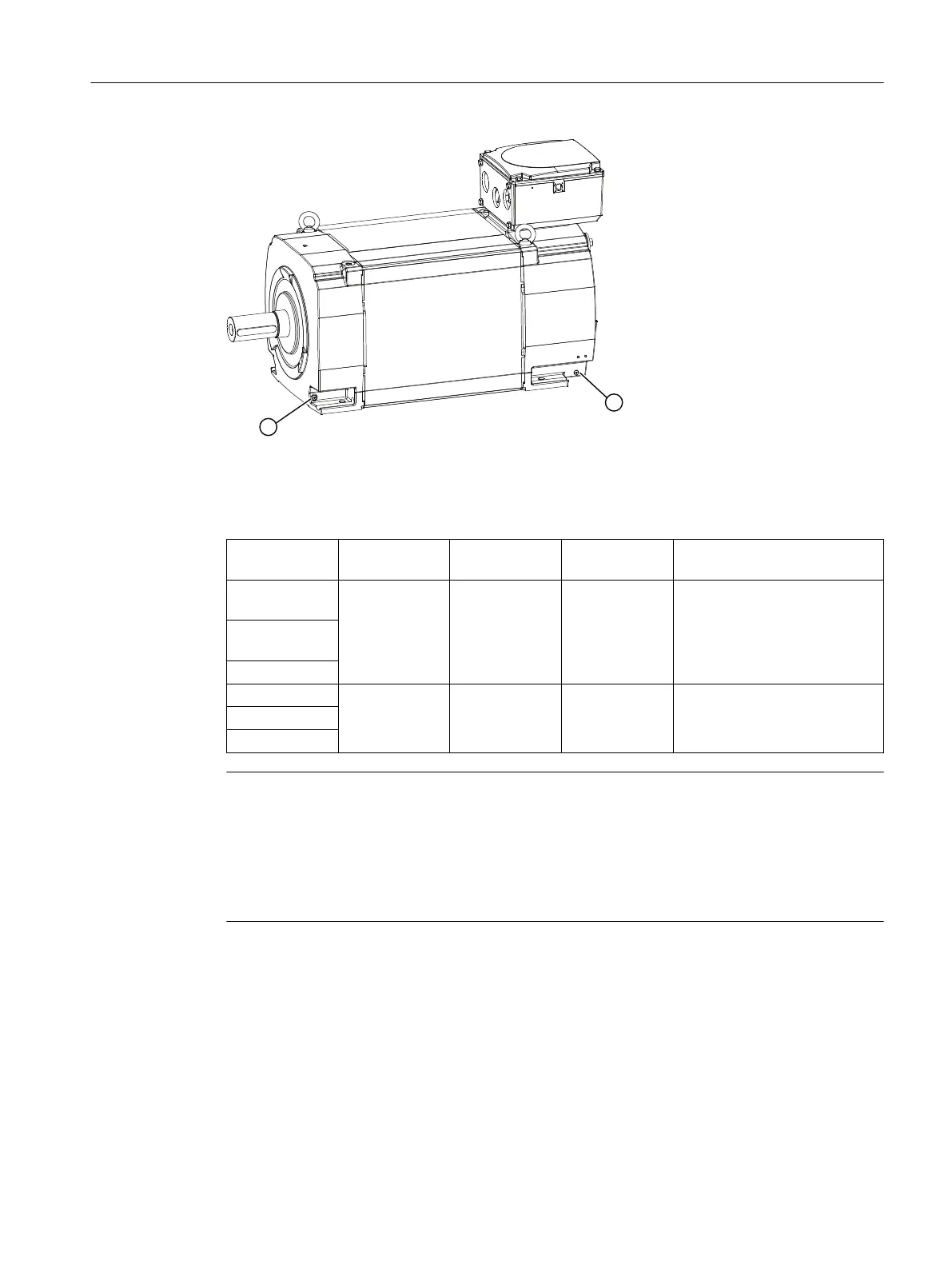

Figure5-12 1PH8 motor with condensation drain holes
Table 5-19 1PH8 motors with condensation drain holes (optional)
Article No. Cooling Degree of pro‐
tection
Required op‐
tion
Comment
1PH818x-xxx0
1PH818x-xxx1
Forced ventila‐
tion
IP 55 L12 Bearing shield NDE and DE
1PH822x-xxx0
1PH822x-xxx1
1PH828x-xxx1
1PH818x-xxx2 Water cooling IP 55 - NDE and DE bearing shield
(condensation drain hole al‐
ways included as standard)
1PH822x-xxx2
1PH828x-xxx2
Note
• Condensation drain holes are only used in motors with degree of protection IP 55.
For motors with degree of protection IP 23 (open-circuit ventilation), the open design does
not require condensation drain holes. It is not possible that a potentially damaging amount
of condensation can collect.
• Anti-condensation heating (see Chapter "Anti-condensation heating") can be used to
supplement condensation drain holes.
Motor components and options
5.2Options
1PH8 SIMOTICS M main motors
Con󹪝guration Manual, 12/2022, A5E51895839A 199
