Siemens SIMOTICS M-1PH8 Configuration Manual

identi󹪝cation number, rating data (voltage, current, torque) to the control unit. The MOTION-
CONNECT DRIVE-CLiQ cable is used universally for connecting the various encoder types.
These motors simplify commissioning and diagnostics, as the motor and encoder type are
identi󹪝ed automatically.
Encoder connection on motors with DRIVE-CLiQ
Motors with DRIVE-CLiQ interfaces can be directly connected to the corresponding Motor
Module via the available MOTION-CONNECT DRIVE-CLiQ cables. This data is transferred directly
to the Control Unit.
3RZHUFDEOH
0RWRU
6,1$0,&66
&RQWUROFDELQHW
0RWRU
0RGXOH
'5,9(&/L4
˽
(
0
a

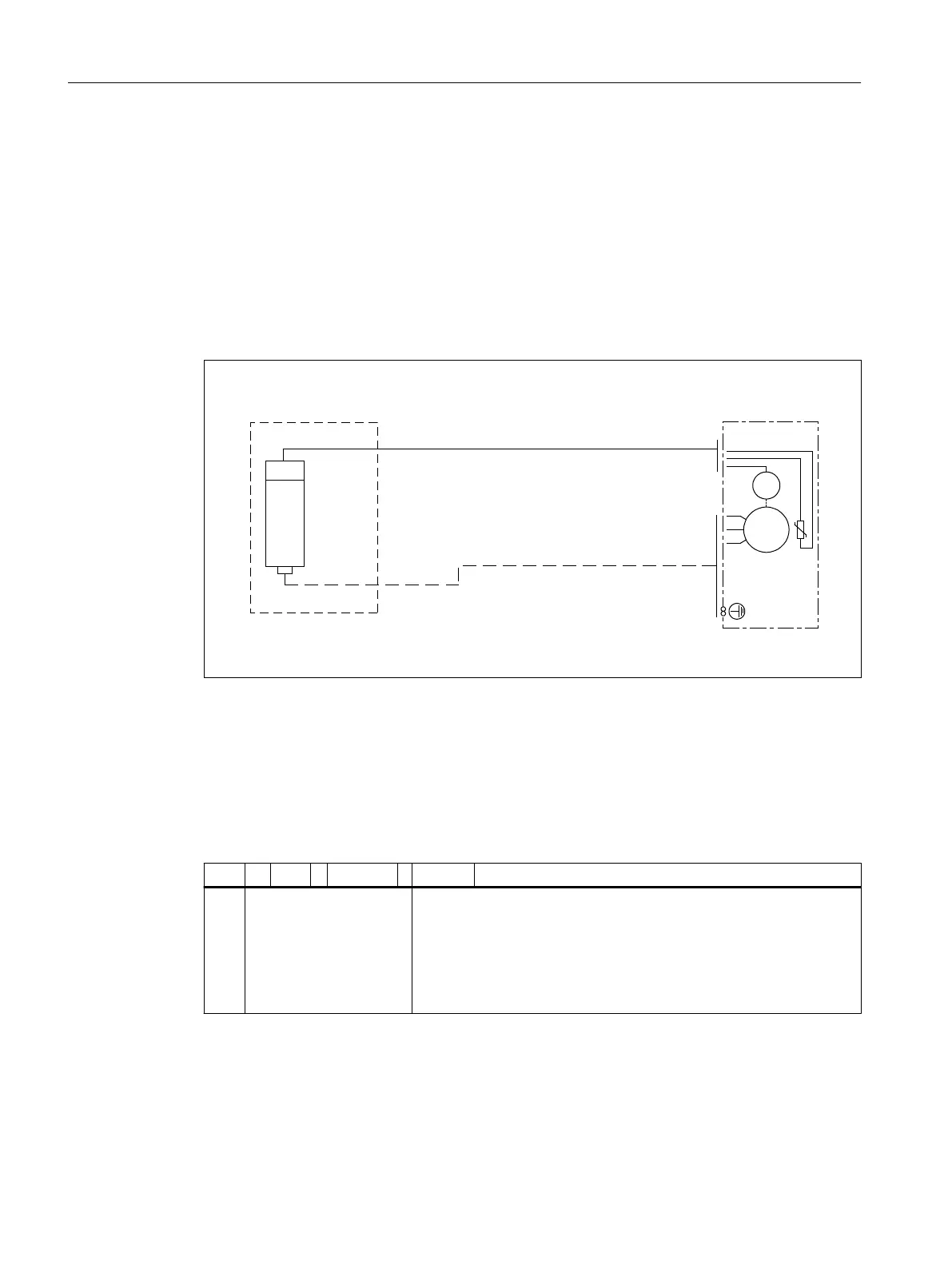

Figure9-33 Encoder connection on motors with DRIVE-CLiQ
Cables on motors with DRIVE-CLiQ
With DRIVE-CLiQ, the same cable is used for all encoder types. Only pre-assembled cables from
Siemens (MOTION-CONNECT) may be used.
Table 9-6 Pre-assembled cable
6FX ☐ 002 - ☐DC☐☐ - ☐☐☐ 0
 ↓
↓
5 MOTION-CON‐
NECTⓇ500
8 MOTION-CON‐
NECTⓇ800
↓↓↓
Length
max. cable length 100 m
max. cable length 50 m
For other technical data and length code, refer to Catalog, Chapter "MOTION-CONNECT
connection system"
Electrical connection
9.3System integration
1PH8 SIMOTICS M main motors
254 Con󹪝guration Manual, 12/2022, A5E51895839A
