Siemens SIMOTICS M-1PH8 Configuration Manual

No. Description No. Description
L070 Rated powerP
N
(1) L275 Maximum torque M
max
L080 cosφ (1) L280 Maximum speed n
max
L090 Rated frequencyf
N
(1) L285 Temperature sensor
L100 Rated speedn
N
(1) L290 Encoder
L110 Operating mode (1) L295 Cooling method
L120 Rated voltage U
N
(2) L296 Throughput l/min (m
3
/s)
L121 Connection method (2) L297 System pressure
L130 Rated current I
N
(2) L298 Maximum coolant temperature
L140 Rated powerP
N
(2) L315 Options (I)
L150 cosφ (2) L320 Options (II)
L160 Rated frequencyf
N
(2) L325 Optional customer information
L170 Rated speedn
N
(2) L330 Anti-condensation heating
L180 Operating mode (2) L335 Weight
L190 Rated voltage U
N
(3)  
L191 Connection method (3)  
L200 Rated current I
N
(3)  

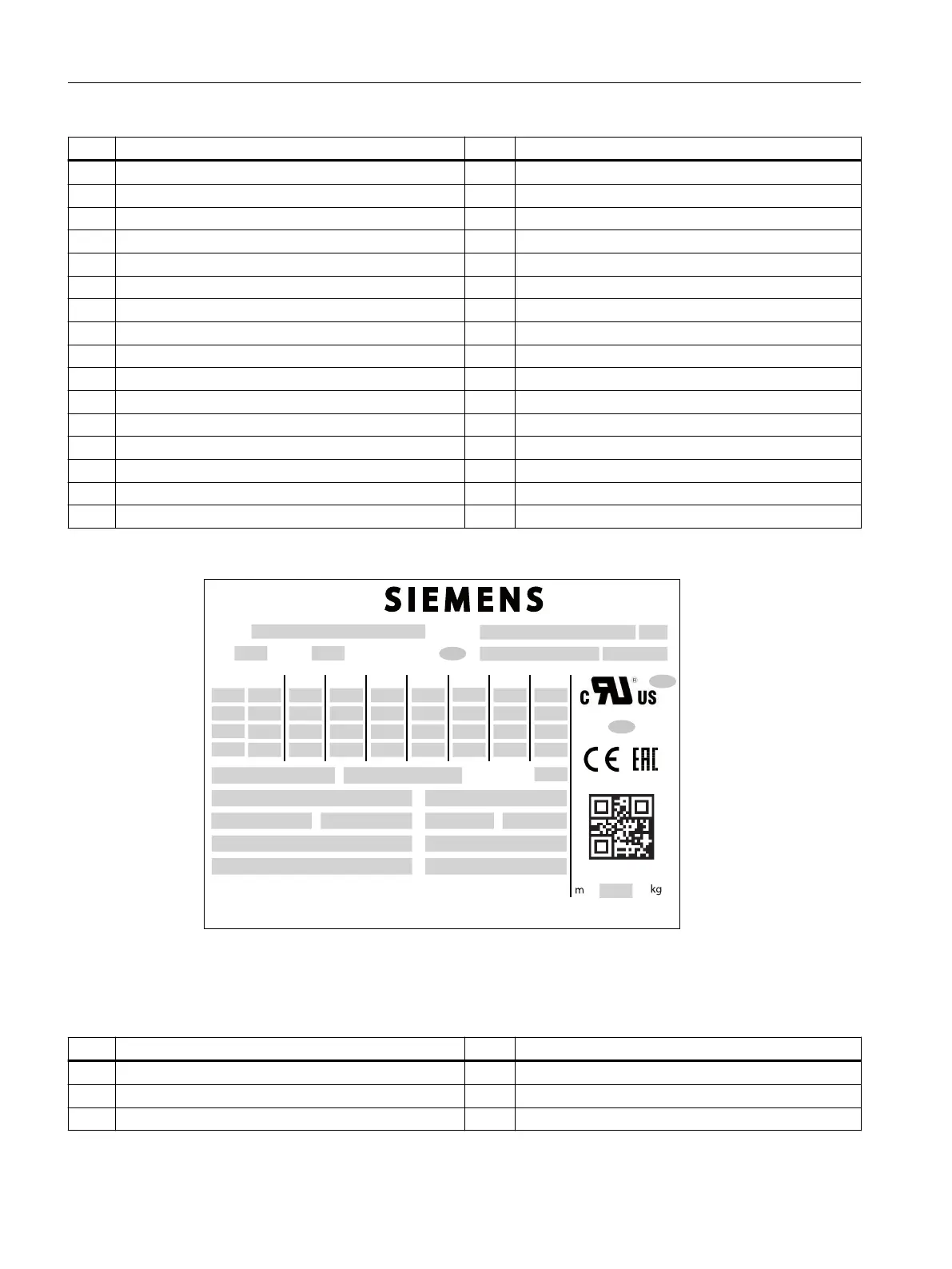

The rating plate (type plate) shows the technical speci󹪝cations for the supplied motor.















































&2'(
,0
1R1
3
1
N: 8
1
9
Q
1
PLQ
7+&/+
,
1
$
QPD[PLQ
6LHPHQV$*
0DGHLQ*HUPDQ\'1¾UQEHUJ
,(&(1
FRV˳


a0RW
,3
I
1
+]
Figure3-4 Nameplate layout for 1PH818 to 1PH828
Table 3-6 Elements on the rating plate
No. Description No. Description
010 Article No. 200 Rated current I
N
(3)
012 Consecutive number, part of serial number 210 Rated powerP
N
(3)
020 Serial number 220 cosφ (3)
Motor description
3.5Rating plate data
1PH8 SIMOTICS M main motors
64 Con󹪝guration Manual, 12/2022, A5E51895839A

Siemens SIMOTICS M-1PH8 Specifications

General

Brand	Siemens
Model	SIMOTICS M-1PH8
Category	Engine
Language	English
