Startdrive commissioning tool
2.3 User interface - parameterization
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
31
The SINAMICS modules are arranged as follows in the hardware catalog:
Control Units; available Control Units of the SINAMICS CU320-2 type
Active, Basic and Smart Line Modules
Single Motor Modules and Double Motor Modules
Motors
The motors are sorted according to motor type and article number, and are displayed with a
core article number.
Drive CLiQ motors, induction motors, synchronous motors
Measuring systems (various encoders)
Supplementary system components (Terminal Boards, Terminal Modules, etc.)

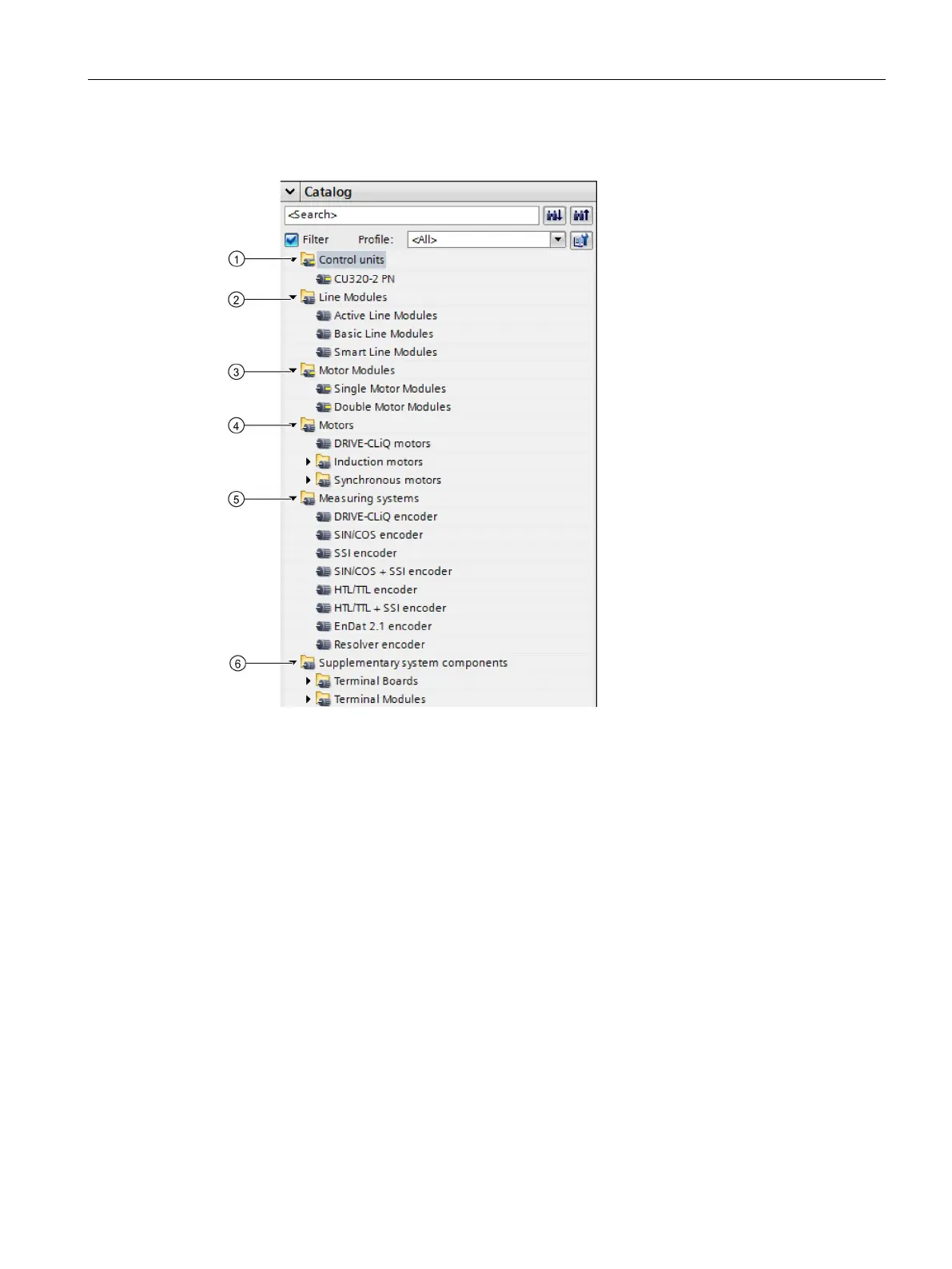

Figure 2-3 SINAMICS hardware components
