Siemens SINAMICS S120 - Enable Logic

Commissioning
4.6 Basic parameterization of the drive objects
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
125
4.6.3.6
Enable logic
If telegrams were connected during commissioning, these interconnections are displayed
here and an additional specification is not required.
If no telegrams were specified previously, then you must connect the required signal sources
via the enable logic.

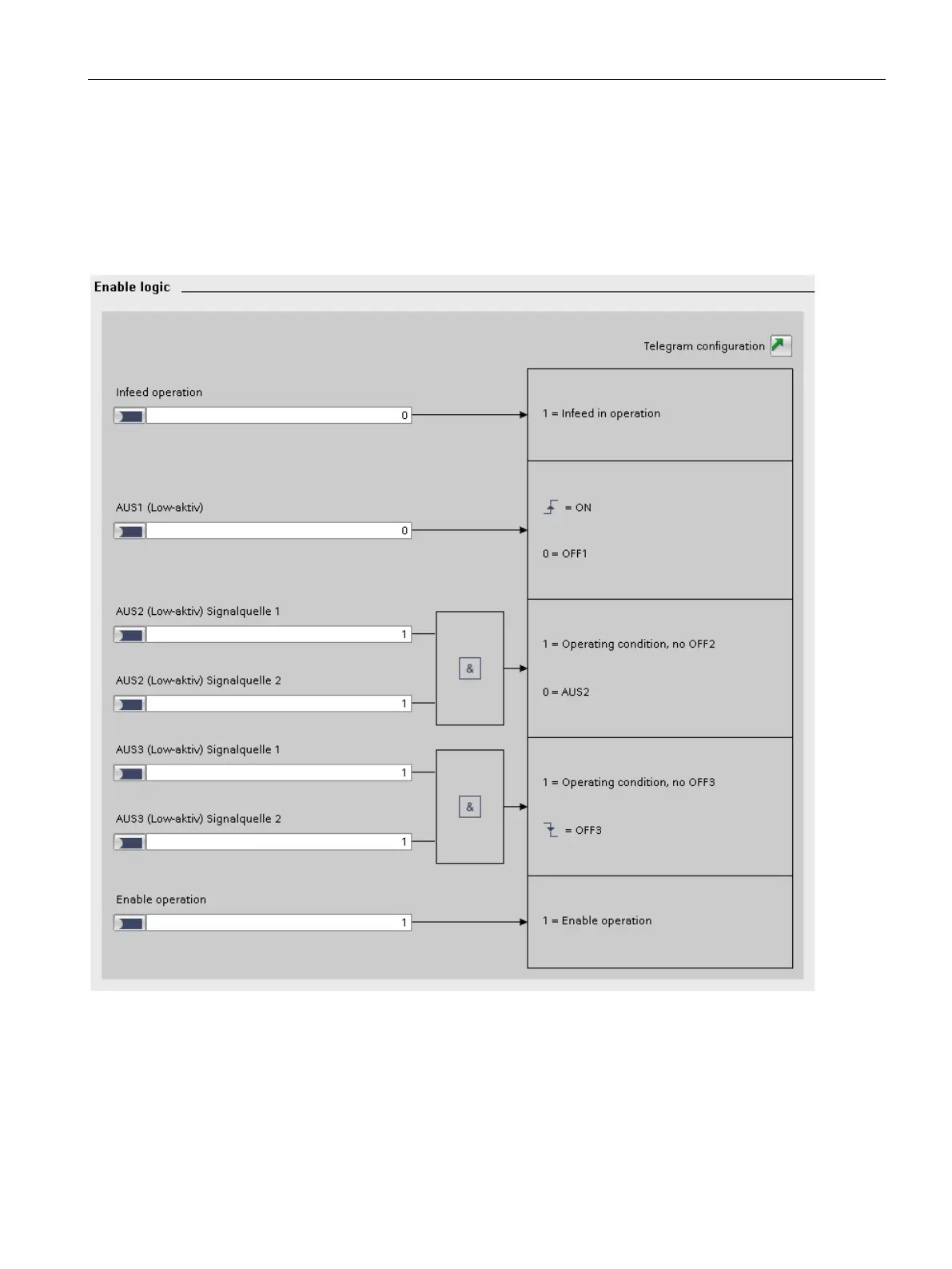

Figure 4-55 Enable logic
