Startdrive commissioning tool
2.4 User interface - trace function
Commissioning with Startdrive
40 Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
User interface - trace function
2.4.1
Configuration
Display areas
The user interface of the trace function comprises several areas.

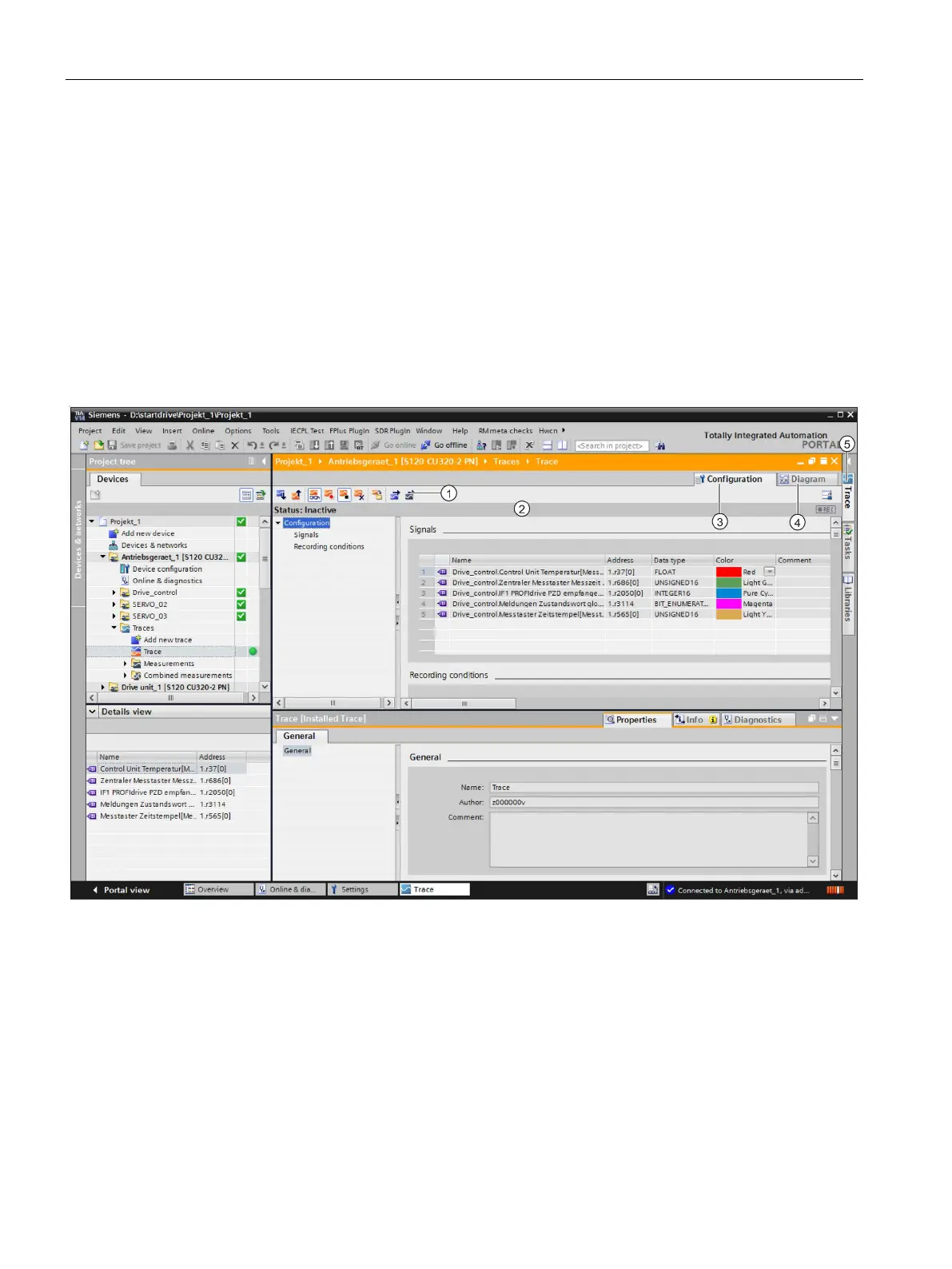

The following diagram shows the structure of the trace user interface in Startdrive as
example:
