3.4 BICO interconnections
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
51
The last set signal source is displayed in the "Selected source" field. If a connection was
not available previously, the value 0 is displayed.
2. Select the parameter that you want to connect.
If connectable bits of the parameter are available, they are displayed in a drop-down list.

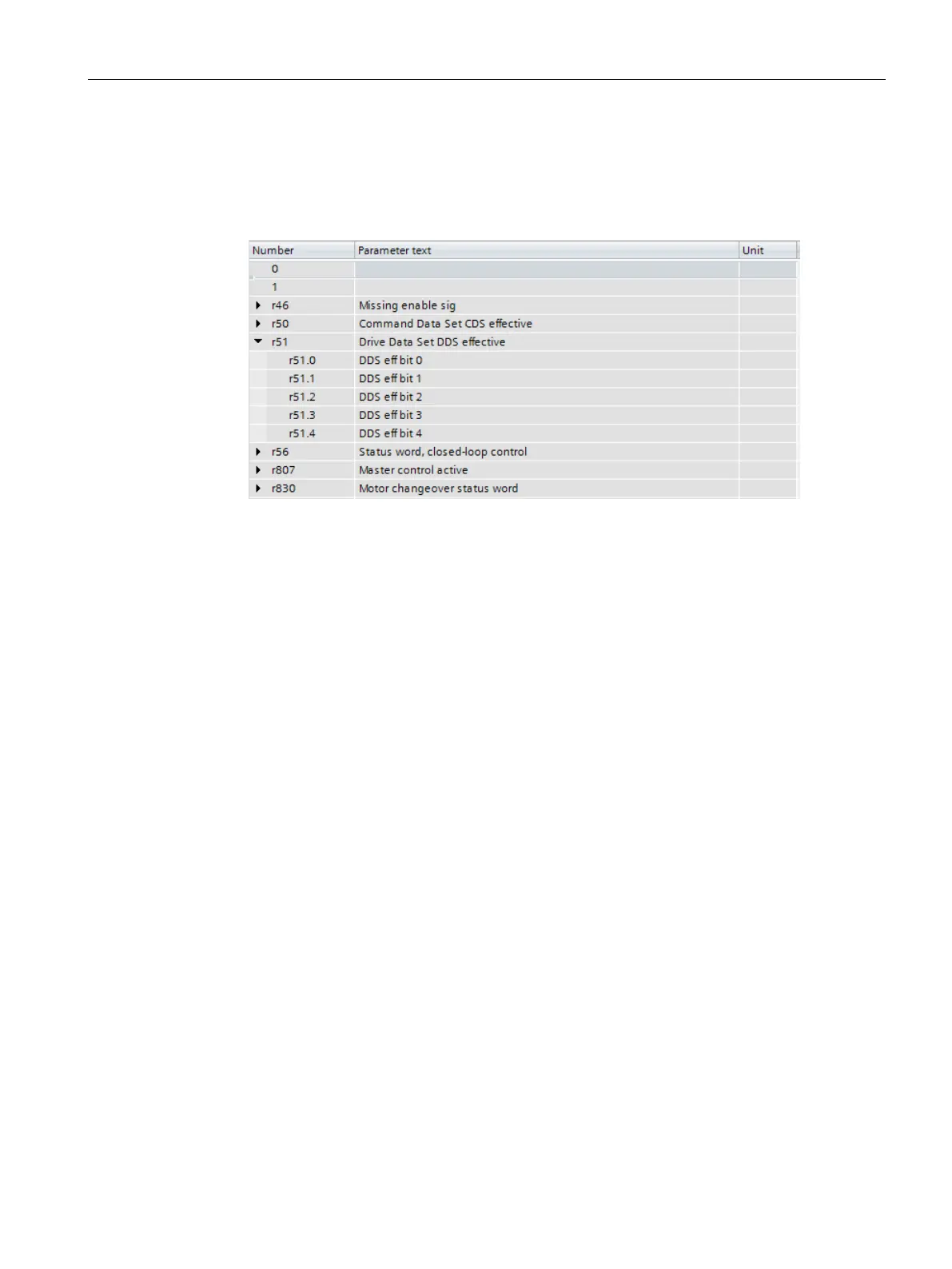

Figure 3-3 BICO dialog: Parameter bits opened
3. Select the parameter bit that you want to connect.
4. Confirm with OK.
The connection dialog closes.
Result
The binector or connector input is connected to the selected parameter (bit).
