Commissioning
4.3 Creating a project
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
63
Inserting a drive via the Portal view
Proceed as follows to insert new devices (drives) in the project view:
1. Double-click "Add new device" in the project navigation.
The dialog box with the same name opens.
2. Click on "Drives" to display the drives available.
3. Select the drive from the list.

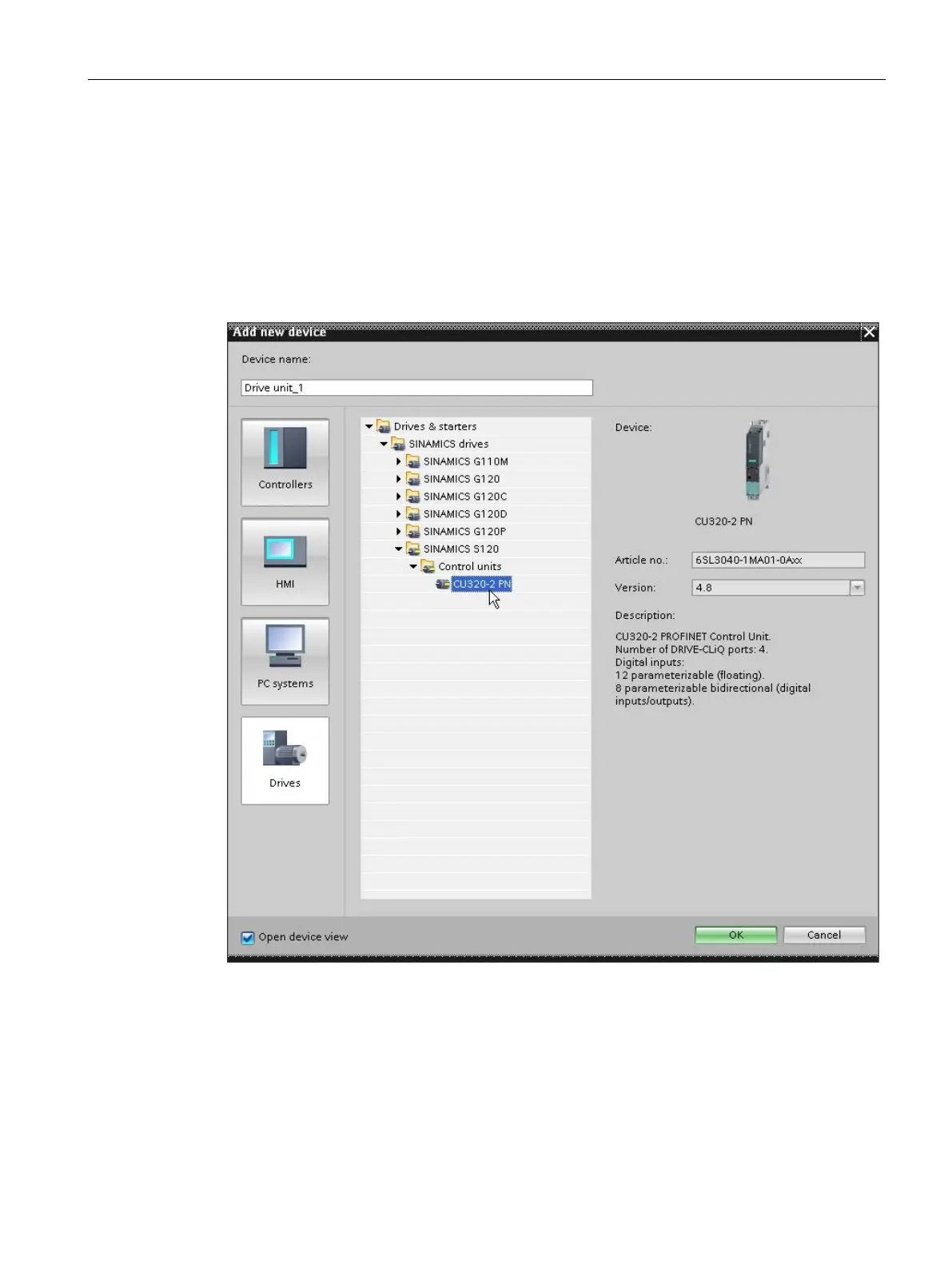

Figure 4-7 Dialog: Add new device
4. When required, enter a different device name in the input field at the top left, and then
click on "OK".
If the "Open device view" option is activated, then the drive is immediately created in the
device view.
